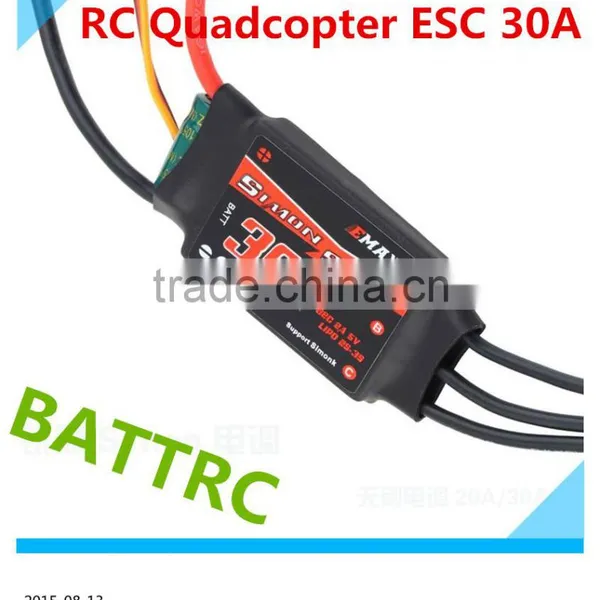

30A SimonK Brushless Speed Controller ESC for DJI FPV Drone RC Quadcopter B
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Helicopter
Power:
Battery
Material:
Plastic
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Original Emax Simonk/BLHeili Firware 12A/20A/30A/4in1-30A ESC RC Brushless Motor Speed Control ESCNegotiableMOQ: 10 Pieces -
LittleBee 30A ESC With BLHeli,OneShot125 and Damped LightNegotiableMOQ: 10 Pieces
-
FVT Opto Speed Controller Little Bee 20A ESC With Amazing Factory PriceNegotiableMOQ: 1 Piece
-
Little Bee Opto 20A ESC With Best Factory PriceNegotiableMOQ: 1 Piece
-
The Updated Version LittleBee 20A Pro ESC OPTO Electronic Speed Controller 2-4S Brushless for FPV Multicopter QuadcoptNegotiableMOQ: 10 Pieces
Type
Helicopter
Power
Battery
Material
Plastic
Plastic Type
PVC
Scale
1:10
Radio Control Style
RC Hobby
Place of Origin
Guangdong, China
Brand Name
EMAX
Model Number
30A
Specification
1.1 Output: Continuous 30A, Burst 40A up to 10 Secs.
1.2 Input Voltage: 2-3 cells lithium battery or 5-8 cells NiCd/NIMh battery.
1.3 BEC: 2A / 5V (Linear mode).
1.4 Max Speed: 210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM.
(BLM: BrushLess Motor)
1.5 Size: 45mm (L) * 24mm (W) * 11mm (H).
1.6 Weight: 25g.
2 Features
2.1 Safety Arming Feature: Regardless the throttle stick position, the motor will not spin after battery connected.
2.2 Throttle Calibration: Throttle range can be configured to provide best throttle linearity, fully compatible with all market available transmitters.
2.3 Programmable Items:
Brake Setting: brake enabled / brake disabled.
Battery Type: Li-xx(Li-ion or LiPo) / Ni-xx(NiMh or NiCd).
Low Voltage Protection Mode(Cutoff Mode): Gradually reduce the output power / Cutoff the output power.
Low Voltage Cutoff Protection Threshold (Cutoff Threshold): low / medium / high.
Start Mode: normal / soft / very soft.
Timing: low / medium / high.
Reset: reset all the programmable items to their default settings.
2.4 Full Protection Features: Low voltage cutoff protection / Over-heat protection / Throttle signal lost protection.
