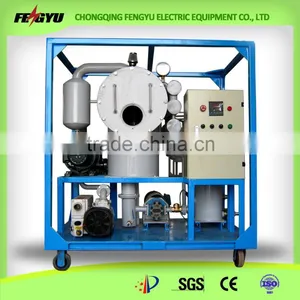

Transformer Oil Purify and Filtering Unit,/ Oil Regeneration Device with Good Quality

Name: Transformer Oil Purify and Filtering Unit,/ Oil Regeneration Device with Good Quality
Brand: Fengyu
Price: USD $3,000 - 50,000 / Set

FOB Price

USD $3,000 - $50,000 / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port Shanghai
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Flow:	150L/min	Working Pressure:	0.5Mpa
Place of Origin:	Chongqing, China	Brand Name:	Fengyu	Model Number:	DZL-150A
Usage:	Transformer Oil	Voltage:	380v/50hz	Power(W):	128KW
Dimension(LWH):	19001400&2100	Weight:	1500Kg	Certification:	ISO CE
After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

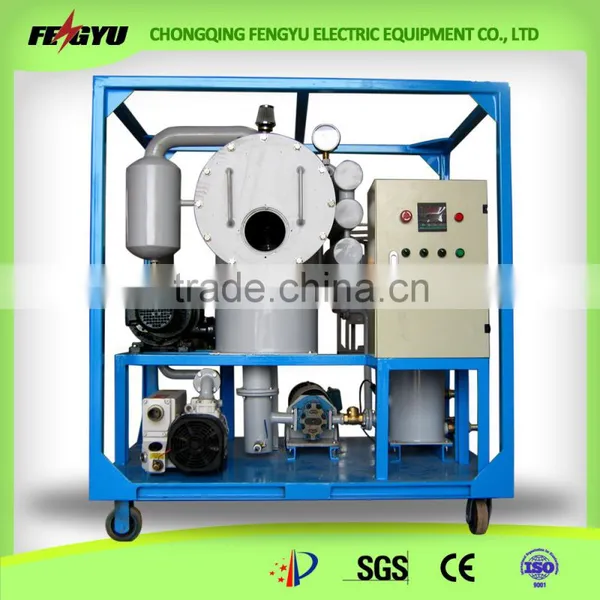

FENGYU Transformer Oil Purify and Filtering Unit,/ Oil Regeneration Device with Good Quality

FUNCTIONS:

The main oil filtration function of DZL Series of signal and double stage high-efficient vacuum oil purifier is to remove free and dissolved water, gases, and mechanical impurities from insulating oils so as to ensure its purity and improve its insulation property. It is suitable for the application to oil treatment 500KV super-voltage transforming equipment and 220KV transformer. It is also suitable for the treatment of capacitor oil, transformer oil and freezer oil.

TECHNICAL SPECIFICATION

Product	Single	5	10	20	30	50	75	100	Proposed to use double stage to deal with 100L/min. capacity
Product	Double	5A	10A	20A	30A	50A	75A	100A	150A	200A	250A	300A
Flow rate	L/min	5	10	20	30	50	75	100	150	200	250	300
Total power	KW	5	15	24	24	30	48	60	108	108	144	144
Pipe diameter	DN mm	25/16	25/16	32/25	32/25	44/32	44/32	50/44	50/44	50/44	65/50	65/50
Gross weight	KG	100	180	240	320	420	700	750	1500	1860	2100	2200
Overall dimension mm	Length	700	1200	1200	1300	1300	1600	1600	1600	1600	2000	2000
	Width	500	800	1000	1000	1000	1400	1400	1400	1400	1600	1600
	Hght	800	1200	1400	1450	1500	1800	1800	1800	1800	2250	2250

TECHNICAL INDEX

Product	DZL-Single	DZL-Double
Breakdown Voltage(KV)	60	75
Moisture Content(PPM)	10	5
Gas Content	≤0.5%	≤0.1%
Filtering Fineness( m )	1-5	1-5
Vacuum Degree(PA)	400	50
Working Temperature	40---70
Max Outlet Pressure(MPA)	0.5
Working noise	60		60
Filtering efficiency	1-3times
