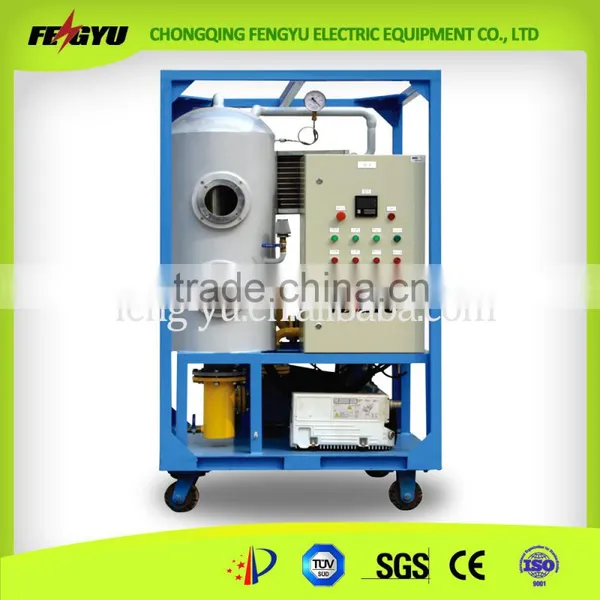

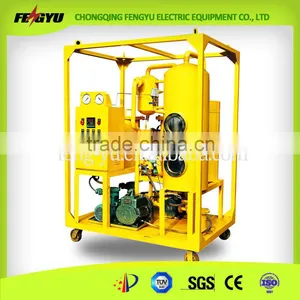

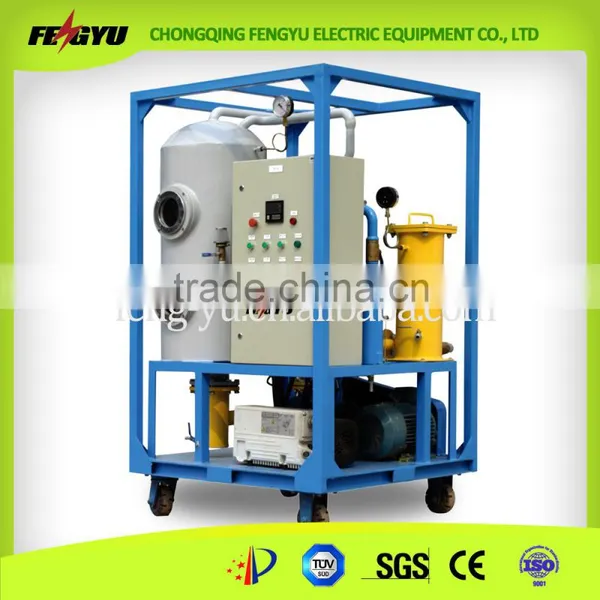

Help CenterWaste Oil Recycling, Industry Oil Purification Plant /waste Oil Recovery Unit
Related Products
-
Waste Lubricant Oil Filtration Machine/Oil Recycle MachineUS$ 1,000 - 50,000MOQ: 1 Set -
High Quality Used Engine Oil Purification MachineUS$ 1,000 - 50,000MOQ: 1 Set
-
Waste Motor Oil Purification Machine, Used Motor Oil Cleaning MachineUS$ 1,000 - 50,000MOQ: 1 Set
-
Large Treatment Capacity Vacuum Transformer Oil Purification/Filtration MachineUS$ 3,000 - 20,000MOQ: 1 Set
-
China Professional Large Capacity Used Transformer Oil Purifier MachineUS$ 3,000 - 20,000MOQ: 1 Set
Lubricating Oil Purification Features:
Components List: CKD assembly is adopted, such as vacuum pump and Roots pump are imported from Leybold, Germany; oil pump is imported from Magnus, Canada; filter element is imported from FILTREC, Italy; temperature controller is from Omron, Japan; electrical control is from Schneider, France etc.
Functions:
Due to long-term running of industrial equipment, its inevitable for water, solid granule to enter into the lubricating system, which will lead to the erosion and wear of metal components, and reduce the performance of lubricating oil to affect the safe running of the unit group. The TY series oil purification device is specially designed and produced for solving the problem mentioned above.
Model&Type:
Application Scope |
Turbine oil, fire resistant oil, lubricating oil, hydraulic oil, engine oil, etc |
||
Function |
Efficient dehydration; Quick break of oil emulsion; Fine filtration of particulates in the oil; Safe operation with units online |
||
Color |
Yellow, green, blue, orange, white, silver |
||
Type |
P movable type |
M trailer cart type |
F fixed type |
Operation Mode |
Online and offline operation |
||
Technique Advantage:
Adopt American coalescing-separating spraying technique, greatly raise the efficiency of removing moisture and air from the oil.
Adopt American dry-decompression technique, double the efficiency of dehydration.
Adopt Fengyu patented technique of folded filter element to achieve better filtration fineness to 5μm, outlet oil ß index≥1000, together with gas recoil technology, it will double the life of the filter element.
Low load design less than 1.0W/C to ensure constant heating of the oil so as to avoid affecting oil quality.
Multi group control, constant temperature, adjustable from 0-100.
With safe chain controlling system to avoid heating without oil.
Using float valve and photoelectric oil level control, no need of human supervision.
Adopt French defoaming technique to avoid oil leaking
Major electrical apparatus imported from America, so its used safely and reliable.
Using phase protector to avoid damage of electrical motor.
Oil pump with low noise..
Ship-shape chassis-mount structure to ensure oil leak proof and protect the environment from pollution.
Optional parts:
Number |
Parts |
Description |
1 |
Alloy cabinet |
Made of alloy to prevent wind, rain and dust |
2 |
Flow meter |
To measure the flow volume of the oil |
3 |
Molecule filter |
To reduce acid value:MgKOH/g≤0.03 |
TECHNICAL INDEX
Index |
Unit |
1 |
2 |
3 |
4 |
5 |
6 |
8 |
10 |
12 |
Flow rate |
L/H |
1000 |
2000 |
3000 |
4000 |
5000 |
6000 |
8000 |
10000 |
12000 |
Working vacuum |
MPa |
-0.07~-0.096 |
||||||||
Water content |
PPm |
50 |
||||||||
Filtering fineness |
μm |
1-5 |
||||||||
Working pressure |
Mpa |
≤0.5 |
||||||||
Working temperature |
|
40-70 |
||||||||
Power supply |
|
According to clients request |
||||||||
Working noise |
dB |
≤65 |
||||||||
Heating power |
KW |
.9 |
15 |
24 |
30 |
54 |
72 |
72 |
108 |
144 |
Total power |
KW |
11.5 |
17 |
26 |
33 |
58 |
76 |
78 |
114 |
150 |
Diameter of inlet/outlet |
MM |
32 |
44 |
50 |
||||||
Gross weight |
Kg |
350 |
550 |
700 |
850 |
950 |
1100 |
1300 |
1500 |
1800 |
