Osram 3030 High Efficacy Injection LED Module

Osram 3030 High Efficacy Injection LED Module thumbnail-1
Osram 3030 High Efficacy Injection LED Module photo-1
Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Light Source:
LED
Input Voltage(V):
DC12V
Lamp Power(W):
1.2
Contact Supplier Request Quote Chat Now
Fujian Sunlighte Optoelectronics Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Light Source LED
Input Voltage(V) DC12V
Lamp Power(W) 1.2
Lamp Luminous Flux(lm) 100
Lamp Luminous Efficiency(lm/w) 83
Color Temperature(CCT) Cool White
Working Temperature(℃) -20, 50
Working Lifetime(Hour) 20000
IP Rating IP65
Certification CE, ETL, UL
Emitting Color Cold White
Lamp Body Material Aluminum
Place of Origin Fujian, China
Brand Name SLT
Model Number SL-BL037W-012

Specifications

1. Convenient,wide application
2. Energy saving
3. Safety using
4. CE,ETL,RoHS,UL approved



Product Description

Feature



1.Super bright illuminant(imported Osram/Epistar),isolated driver(PF>0.90),good heat dissipation,low luminance decrease,all to achieve high bright,no dark area,first class light efficacy.
2.Unique structure design,connentient stallation and stock,can be used in various range of advertising in order to achieve super effect of publicity.
3.Instant start,no flickering,no humming,wide angle of deflection with uniform light distribution,dimmable model can be customized.
4.Saving energy up to 80%,decress the cost of maintenance,so you don’t need to replace lamps frequantly any longer.
5.CE/ETL/RoHS/UL approved,waterproof,make sure the good quality and safety.

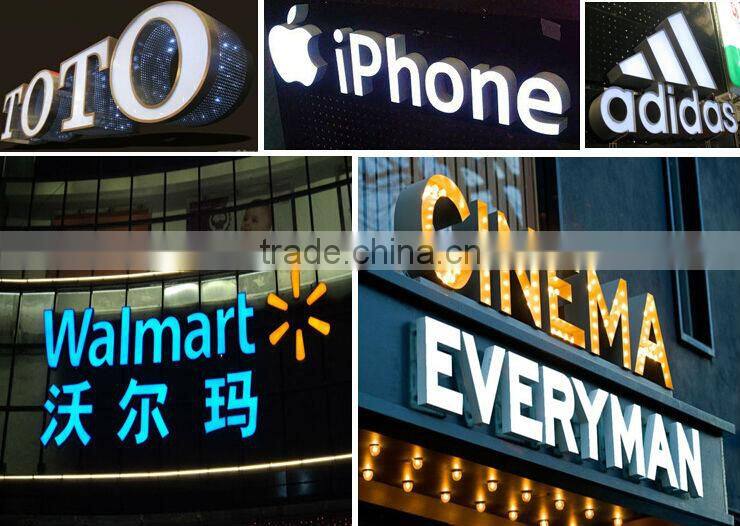

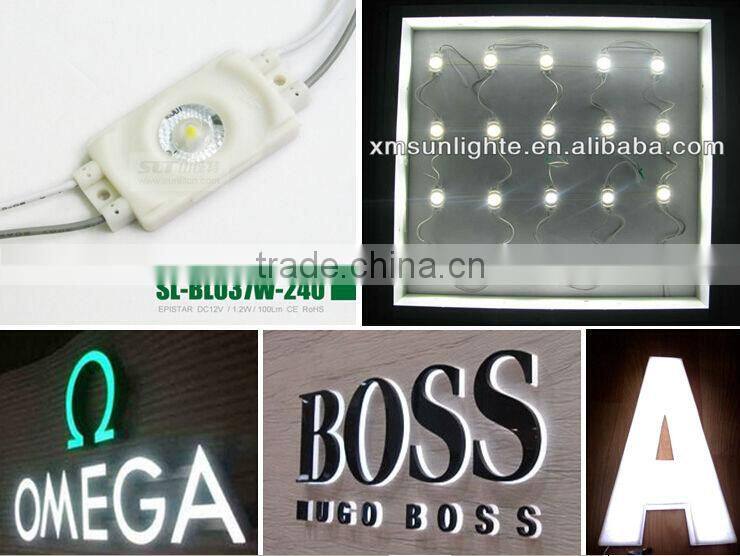

Application

Single/double side led module is designed for light box and advertising words,can be applied for any size light box,the light effect is very uniform and bright,you only need 46-50pcs per square meter.



Osram 3030 high efficacy injection LED moduleOsram 3030 high efficacy injection LED module

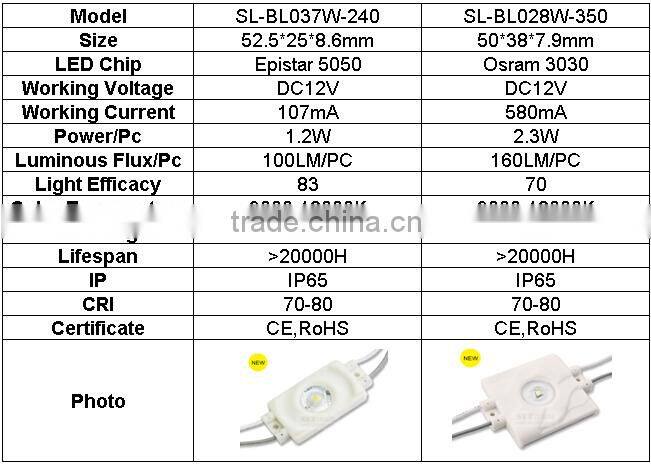

Specification

 Two kinds(single side/double side) of model are available.

Osram 3030 high efficacy injection LED module

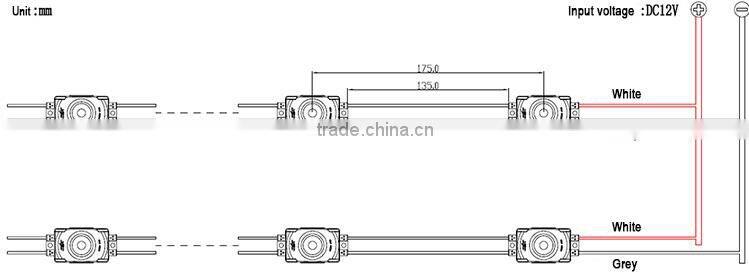

Installation

1.Non-mechanical extrusion on the LED light board and its components.

2.Meet the requirements and safety standards of electronic components before installing LED light board (in the case of live work), don’t live operation, prevent short circuits.

3.20pcs in cascade,more than it pls in cascade first then in parallel,otherwise Electricity hazards will probably be occurred.

4.Pls be sured that input voltage must be DC12V,and the accurate position with the positive(white wire) and negative(grey wire) pole.

5.The power driver must have short circuit protection, overload protection.

6.Power driver is subjust to the LED lamp power(batter that reserved 20% allowance),current as the same.



Osram 3030 high efficacy injection LED module





We can supply reference about distance(x/y/h),in order to guide you how to instal.

Osram 3030 high efficacy injection LED module





Caution



1.Please read the specification first to make sure the using condition is fit.
2.Please shut off the switch before connect the product, then turn on.





Packaging & Shipping

 Packaging

1.Accroding to quantity you ordered,because space usages are different,but be rest assured that we use export standard package suitable for voyage.

2.Customized packaging can be available.



Delivery



1.Fast delivery:as well as other equipment for production and testing to ensure fast delivery for our customer.



2.We ship goods by UPS/DHL/FEDEX/TNT express,by air cargo,or by sea,depending on your actual requirements.

Osram 3030 high efficacy injection LED module

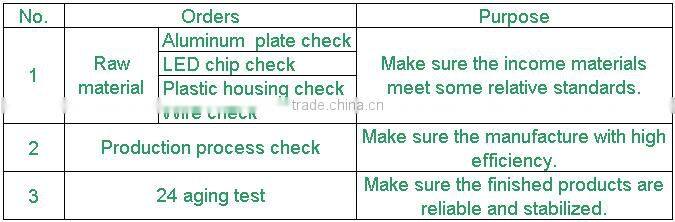

Quality Control

  Every steps must be streit checked, all quality controls by our professional technicians.

 Osram 3030 high efficacy injection LED module





Services & Contact

 Why choose us



1. Faster respond your enquiry,faster delivery.



2. Concise appearance,high quality,low cost produntion.



3. High bright,no pollution.



4. Several strict examinations before all products leave factory.



5. Huge output with our production line.



6. We are a reliable manufacturer in LED lighting more than 10 years and also has an experiences sales team.



7. We are confident that a trial order would convince you of the truth of our statement.



Contact us

Thanks for your interest in our products.
As a professional manufacturer of LED lighting, we sincerely looking forward to establish win-win business relationship with you., please feel free to call or email us,details as follow:

Osram 3030 high efficacy injection LED module









FAQ

 Any questions please feel free to enquiry me directly,I will give you accurate answer immediately.
