back light led module for advertising box1. 800lm
2. Easy to install
3. Warranty:2 years
4. Save money.

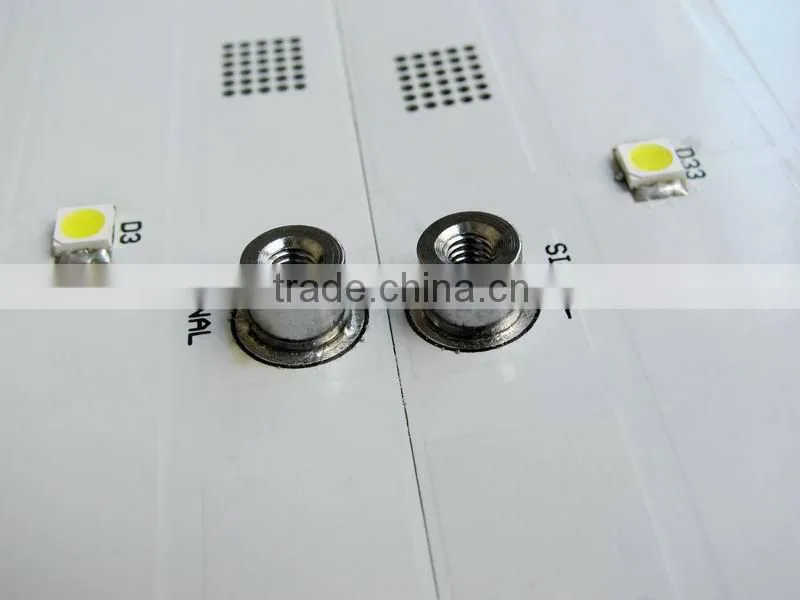

Back light led module for advertising light box
1. Specification
(1)Standard Accessories
flat head screw:8PCS
Screw:4PCS
E-connector:4PCS
Insulation pad:4PCS
(2)Optional Accessories
IR CONTROLLER

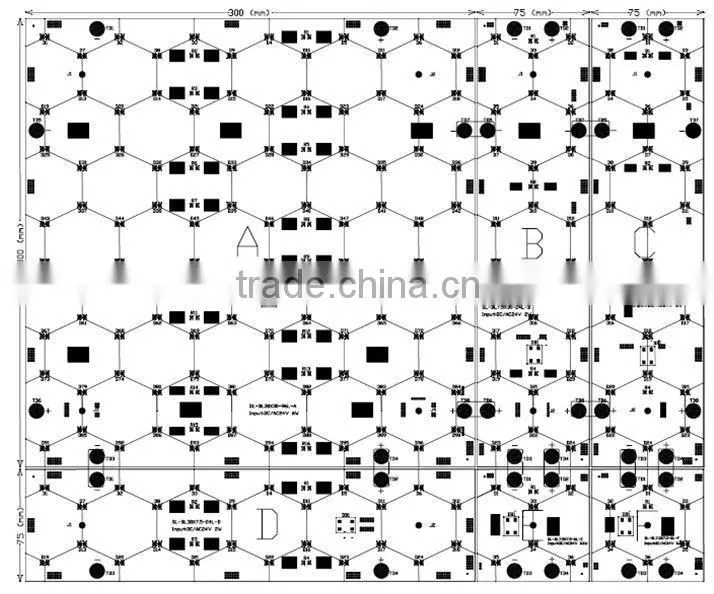

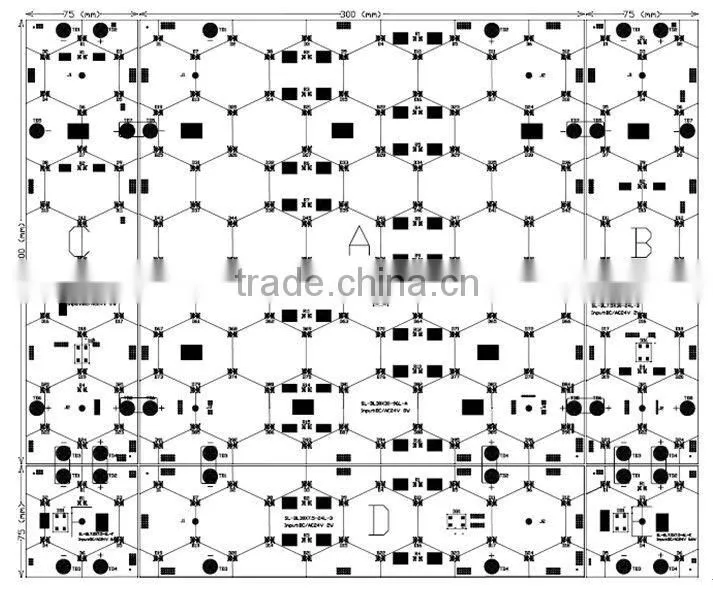

2.Dimension(mm)
3.Connection 1:
Connection2:
Installation:
1.Non-mechanical extrusion on the LED light board and its components,
2. Protect the PCB light board during installation.
3.,Meet the requirements and safety standards of electronic components before installing LED light board (in the case of live work), don’t live operation, prevent short circuits.
4. It can be directly input DC/AC24V power. If it is installed with dimming remote, entering a remote control input terminal of the power supply output DC24V, again from the remote control output terminal connected to the circuit board, as shown above single dimming connection, and then its dimmable function works.
5. When install a large area, the PCB board should be put in the same direction, so that the PCB board positive +to positive +, negative -to negative -. After fixing with screw lock E-type gaskets connection, maximum connection 10 pcs with one power.
6. Each piece of the input voltage is DC24V, the input voltage can not be used directly with AC220V. 30x30cm per sheet lamp, the board power is 8W, Noted that the input voltage DC24V + corresponding to the lamp panel +, the input voltage of the the DC24V-corresponding lamp panel - , not allowed reversed connection.

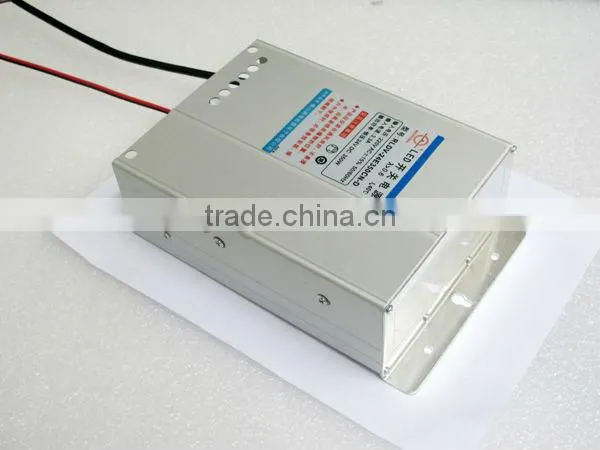

7. Maximum power supply. 150W 24V switching power can supply up to 18pcs 30X30CM light board (8W).

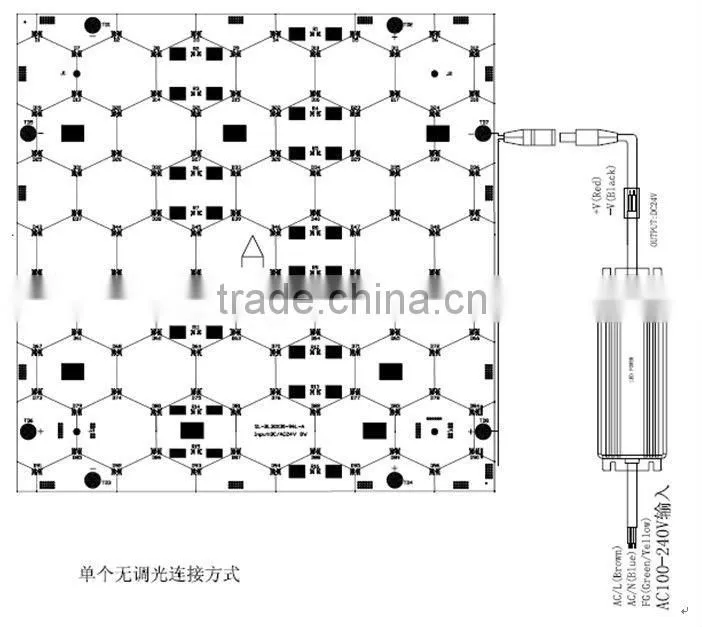

Connection with no dimmer

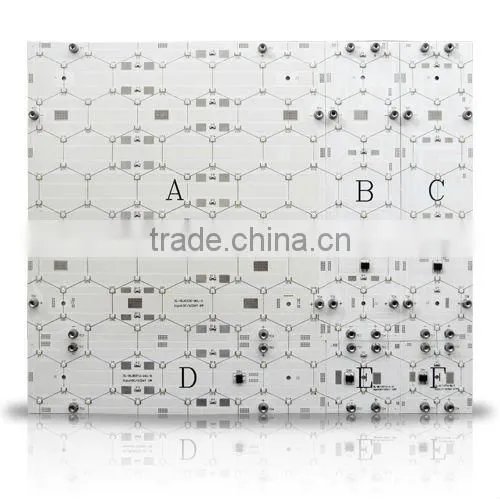

4.LED Features
Model |
Size/mm |
LED Q’ty |
Luminous flux |
Input voltage |
Total Power |
SL-BL007-A080 |
300*300*10 |
96 |
600LM |
DC/AC24V |
8W |
SL-BL007-B020 |
75*300*10 |
24 |
150LM |
DC/AC24V |
2W |
SL-BL007-C020 |
75*300*10 |
24 |
150LM |
DC/AC24V |
2W |
SL-BL007-D020 |
300*75*10 |
24 |
150LM |
DC/AC24V |
2W |
SL-BL007-E006 |
75*75*10 |
6 |
40LM |
DC/AC24V |
0.6W |
SL-BL007-F006 |
75*75*10 |
6 |
40LM |
DC/AC24V |
0.6W |
Specification of each LED chip:
NO. |
Item |
Units |
Parameter range |
1 |
limited voltage |
V |
DC3-3.4V |
2 |
LED current LED |
mA |
20mA |
3 |
Emitting Angle |
° |
120° |
4 |
Wavelengthλd(nm)Or Tc(k) |
K |
5500-8000K |
5 |
luminous flux |
LM |
7-8LM |
6 |
working environment |
°C |
-20~~+50 |
7 |
storage condition |
°C |
-30~~+70 |

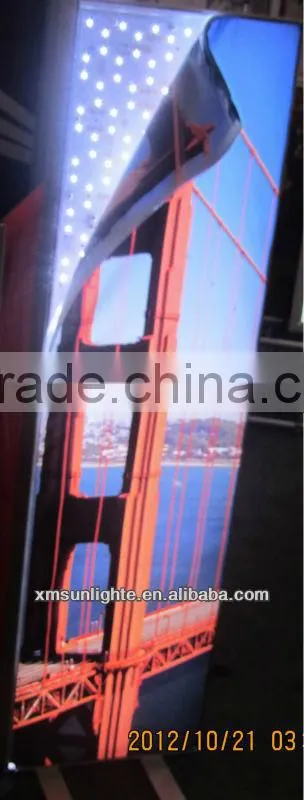

Application
5. Use manual
Please read the specification first to make sure the using condition is fit.
Please shut off the switch before connecting the product.

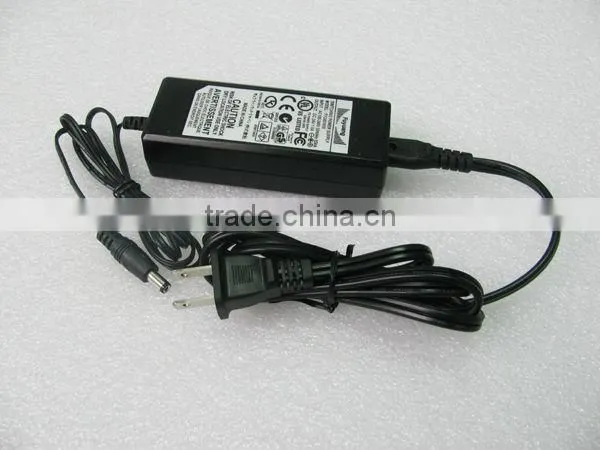

OUTPUT:DC24V/AC24V
Indoor use only.
6. Package
