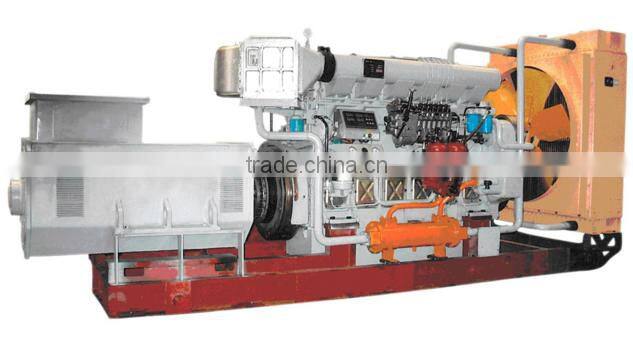

200-400Kw Diesel Generator

FOB Price

US$ 1000.00 - 1000.00 / Set

1 Set(Min. Order)

Port Qingdao port
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China	Brand Name	zhongneng
Model Number	6300	Output Type	AC Three Phase
Speed	500rpm	Frequency	50/60HZ
Rated Power	320kw	Rated Voltage	230/400V
Rated Current	25A

Product Description

Type of the sets	(r/min) Rated speed	(kW)rated power	(U)Rated voltage	(Hz) Rated frequency
CCFJ200J-W200GF	1000	200	400	50
CCFJ220J-W220GF	1000	220	400	50
CCFJ250J-W250GF	1000	250	400	50
CCFJ280J-W280GF	1000	280	400	50
300GF	1000	300	400	50
CCFJ350J-W350GF	1500	350	400	50
400GF	1500	400	400	50

Number of cylinder		6,8
Bore	mm	170
Stroke	mm	200
Compression ratio		14.5
Max. combustion pressure	MPa	13.0
Spec. fuel oil consumption	g/(kW·h)	198
Spec. lub oil consumption	g/(kW·h)	1.0
Rated Frequency	H_Z	50/60
Rated Power Factor	cosφ	0.8 Lagging
Phase & Connection		3 phases 4 wires
Exciting Mode		Brushless
Weight	t	5.8~7.9

Rotation direction of crankshaft: look from the flywheel side to the free side, to turn right is clockwise.

Starting method: Air motor.

Company covers an area of 48000 square meters, workshop construction area is28000 square meters; fixed asset is 150 million RMB. We have many international advanced devices, such as HEXAGON three-coordinated measuring instrument, LEICA laser tracker, ultrasonic fault detectors,2 sets of Germany-made CNC floor type boring and milling machine ,1 set of Japan-made CNC machining center,3sets of large gantry milling machine,60 sets of imported vertical and horizontal CNC machining center,400 sets of machine processing equipment.

Our service

1. Pre-sale service

Our engineer team helps to choose the site of power station, supply genset foundation drawing

2. Sale service

We send engineer to help installation, debug, and training, give English type manual instruction and spare parts.

3. After-sales service

Warranty period;1year ,service online.
