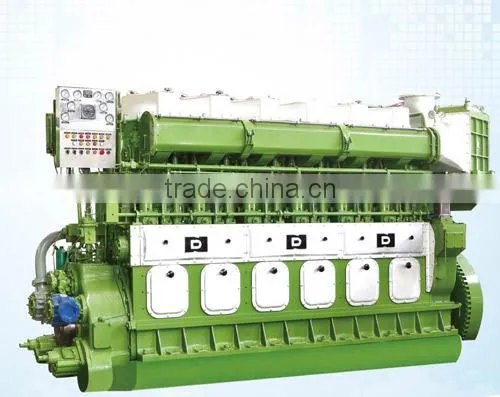

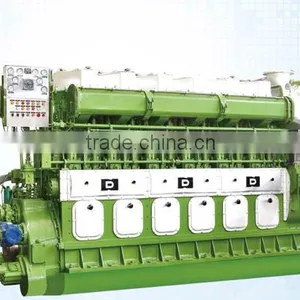

Help CenterG6300 Series Diesel Engine Boat Engine
Related Products
-
8300 Series Diesel Engine With High QualityUS$ 10000.00 - 10000.00MOQ: 1 Set -
G6300 Series Marine Diesel Medium Speed EngineUS$ 100,000 - 200,000MOQ: 1 Set
-
8300 Series Diesel Engine With 8 CylindersUS$ 10000.00 - 10000.00MOQ: 1 Set
-
8300 Series Diesel Engine Marine Jet EngineUS$ 10000.00 - 10000.00MOQ: 1 Set
-
G6300 Series Marine Diesel Engine China ManufactureUS$ 100,000 - 200,000MOQ: 1 Set
Our Company covers an area of 48000 square meters, workshop construction area is28000 square meters; fixed asset is 150 million RMB. We have many international advanced devices, such as HEXAGON three-coordinated measuring instrument, LEICA laser tracker, ultrasonic fault detectors,2 sets of Germany-made CNC floor type boring and milling machine ,1 set of Japan-made CNC machining center,3sets of large gantry milling machine,60 sets of imported vertical and horizontal CNC machining center,400 sets of machine processing equipment.

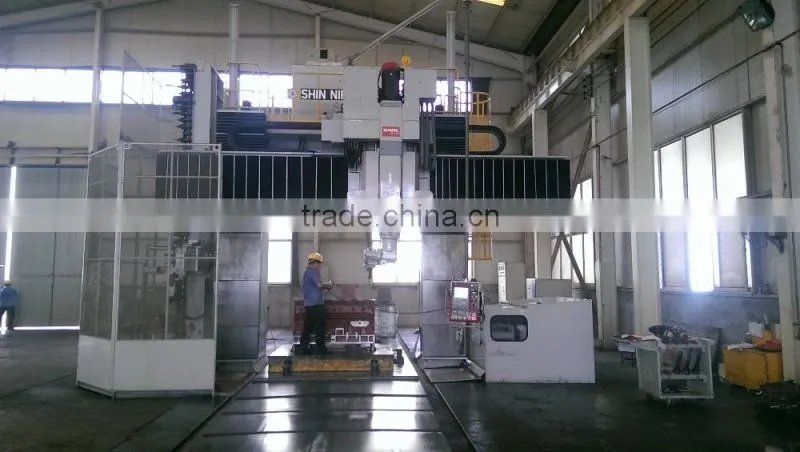

Imported Pentahedron Machining Center

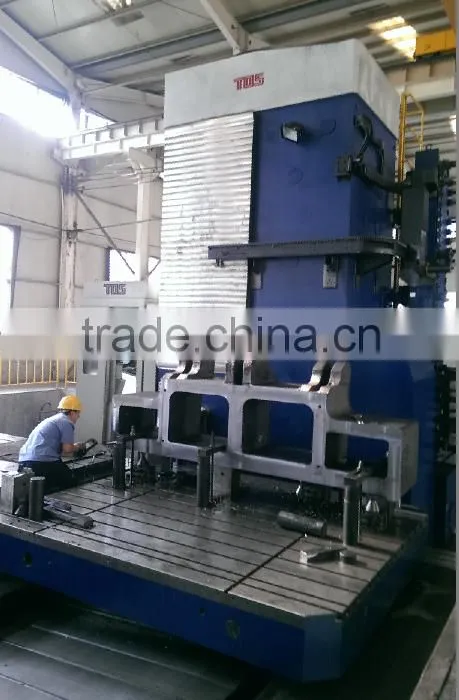

Imported floor type boring and milling machine
Model |
Rated speed (r/min) |
Continuous output (kW) |
Mean eff. Pressure(MPa) |
Mean piston speed(m/s) |
6300C |
400 |
294 |
0.547 |
5.07 |
6300ZC |
400 |
441 |
0.824 |
5.07 |
6300ZLCA |
500 |
551 |
0.822 |
6.33 |
6300ZLCA-1 |
515 |
607 |
0.877 |
6.50 |
6300ZLCA-4 |
530 |
662 |
0.931 |
6.71 |
Main Specification
Number of cylinder |
|
6 |
Bore |
mm |
300 |
Stroke |
mm |
380 |
Compression ratio |
|
14 |
Displacement/cylinder |
L |
26.9 |
Max. combustion pressure |
MPa |
7.0 |
Spec. fuel oil consumption |
g/(kW·h) |
215 |
Spec. lub oil consumption |
g/(kW·h) |
1.6 |
Height of lifting piston from crankshaft(D) |
mm |
2120 |
Overall dimensions(L×W×H) |
mm |
3894×1150×2555 |
Net weight |
t |
9.8 |
The main data of left engine is same with right engine in every model engine.
Rotation direction of crankshaft: The left engine resolves right, the right engine resolves right to look from the flywheel side to the free side, to turn right is clockwise.
The left engine resolves left, the right engine resolves left to look from the flywheel side to the free side, to turn left is counter-clockwise.
Starting method: Air motor starting.
