Brief Introduction

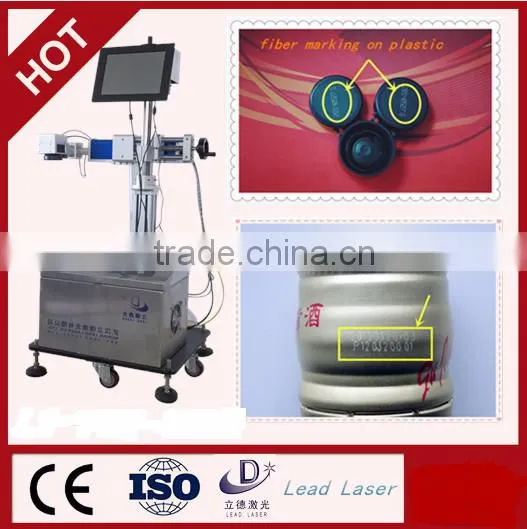

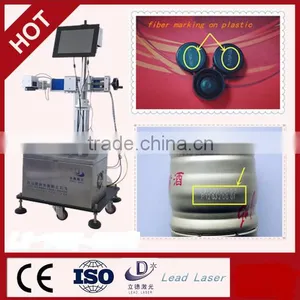

LD-FMK-4010/4015/4020 Metal&Nonmetal flying fiber laser coding machine series currently adopted the most advanced diber lasersand importes spare parts,high-precision,fasten speed,stable performance,with the ability to work long continously software takes windows XP system,Chinese and english interface optional it and operate.
Application
1.applicable to be on-line coding on metal and nonmetal sheet materials tubing,wires and other industrial products ,architecture decoration.material etc(including company name,brand name,standard level,manufacture date ,batch number and so on )
2.On-line lasercoding on the metal and nonmetal package for production dats,logistics code and others.
3.Suitable for large flux packaging of wine ,liquor,food ,beverage,pharmaceuticals,chemical products and other products flying coding at fasten speed,with fine,clear effiency and inverse color.
ding flux is 5000-20000pce/hour .lifetime more than 100000 hours without consumable
Features:
1. Fast processing speed:Its processing speed is 2-3 times of traditional laser marking machine.
2. Good Stability and Free Maintenance: No need maintenance for laser device, also not need adjust or clean the lens.
3.Long Using Time: the average using time more than 100000 hours.
4.Large Marking/Engraving Range: the max rang can be made to 380X380mm.
5.Applicable to a variety of materials such as metal and nonmetal.
Technological parameters
Model No. |
LD-MK-4020(20W) Fiber Marking Machine |
Laser Power |
10W/20W |
Wavelength |
1064nm |
Beam quality M2 |
<1.5 |
Adjusting Q frequency |
20—100KHz |
Marking range (mm) |
100×100(can be enlarged at 160×160mm, 250X250mm or 380X380mm) |
Marking depth |
≤0.1mm |
Linear speed |
≤7000mm/s |
Min line width |
0.008mm |
Min character |
0.3mm |
Repeat accuracy |
±0.001mm |
Power supply |
220V±22V / 50Hz / 7A |
Overall power consumption |
200W |
Main machine dimension |
535 mm X435 mm X710 mm |
Weight of Whole machine |
60KG |
Control system dimension |
Integration |

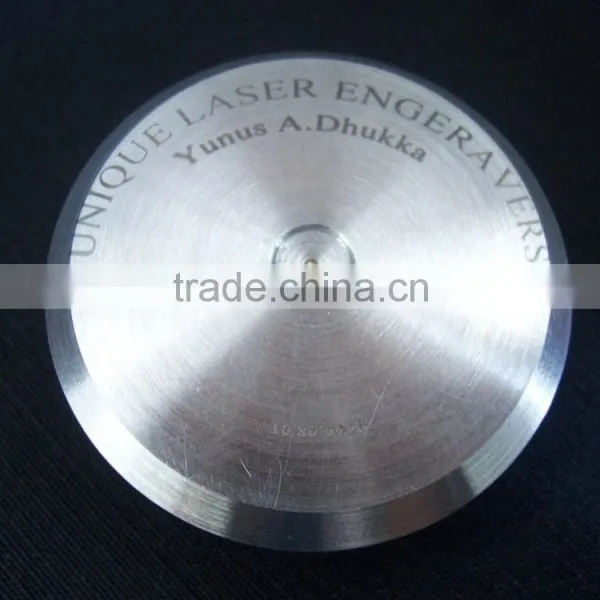

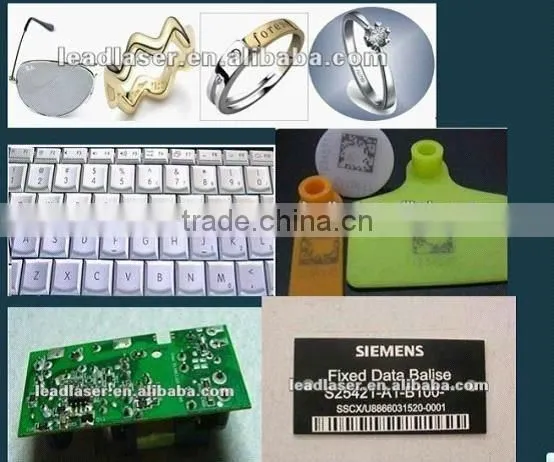

Application samples
