Heavy Duty Electronic Digital Vehicle Weight Scales
Product Name |
Heavy Duty Electronic Digital Vehicle Weight Scales |
Item No. |
UW-F002 |
Item Type |
Digital Truck Scale |
Brand Name |
Uniweighty |
Material |
Plane steel / ” U ” steel |
Color |
Gray with yellow edge warning line |
Max capacity |
100T |
Weight units |
Kg/lb (OEM) |
Display |
LED display with red words/LCD display with white backlight |
Battery |
Rechargeable 6V/4mA lead-acid battery |
Power supply |
AC: 220V 50HZ; DC:6V/4AH |
Battery life |
3 years |
Accuracy class: |
OIML III |
Tare Range |
100% max capacity |
Rated Load |
100T |
Operating temperature |
-20°C~40°C |
Working humidity |
10%-80%RH |
Max. safety overload |
100% max capacity |
Ultimate overload |
200% max capacity |
Stable time |
5s |
Function |
Zero setting, tare, weight accumulation, counting |
Capacity & Division
| Size | Capacity | Division |
| 2x4m | 10T | 2kg |
| 2.5x4m | 15T | 2kg |
| 2.5x5m | 20T | 2kg |
| 3x6m | 50T | 10kg |
| 3x9m | 60T | 10kg |
| 3x12m | 80T | 20kg |
| 3x16m | 100T | 20kg |
| 3x18m | 120T | 20kg |
| 3x20m | 120T | 20kg |
| 3x18m | 150T | 50kg |
| 3x20m | 150T | 50kg |
| 3x21m | 200T | 100kg |
Tips: OEM special sizes
According to the number of load cells to set the size
- Ultra-bright 6 digit LCD/LEDdisplays with white backlight/red word for clear reading

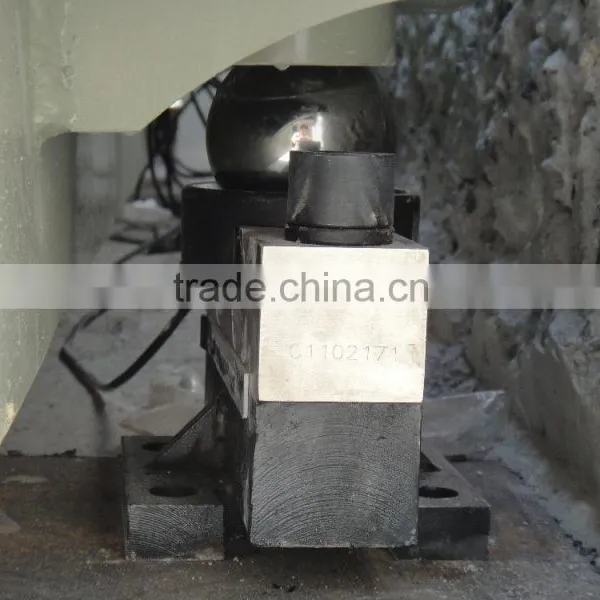

- Four high precision load cells are distributed in the four corners, and can be replaced individually, connected with four waterproof terminal boxes

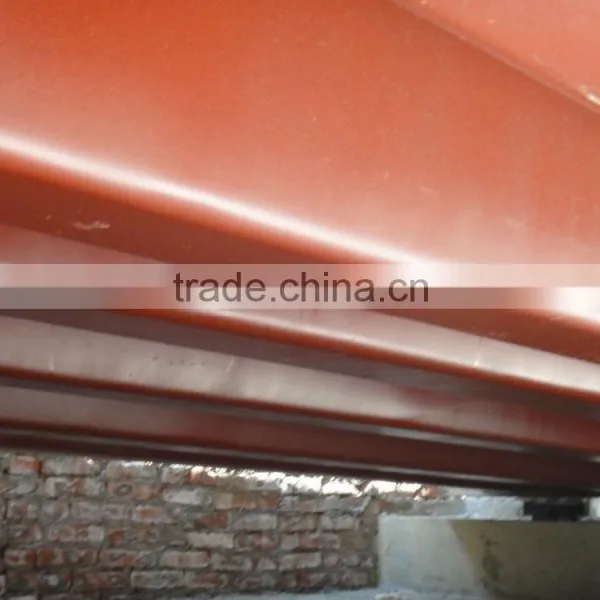

- High strength pattern steel platform and “U” steel body structure for max capacity
- 3-point calibration & single point calibration for precise weighing
- Large bearing surface & anti-slipping design, large weighing for loading large items objects. What’s more, you can choose different ramps for convenience use
- AC/DC power supply is available; Built in rechargeable battery for long standby time
- Auto zero resetting, zero tracking, tare function, precise weighing function
- It will enter the state of energy-saving, when there is no weighing for more than 3s
- Connectable to any weighing indicators and easy to install
- Weighing accumulation functions for 99 times
- Low battery and over-load indication
- We accept OEM ODM of any special size
Related Products
About Wuxi Uniweighty Technology Co., Ltd
We are a direct manufactory specialized in producing weighing scales, including electronic scales, digital scale, electronic balance, floor scales, platform scale, crane scale, hanging scale, pallet truck scales, kitchen scales, portable scales, etc. Our supplied instruments are widely present in government and private organization as well as in many laboratories and small scale production units.
Our Advantages
- 16 people professional technical team and people experienced QC team
- 100% QC inspection before shipment
- Professional knowledge on scale field for 4 years.
- Large factory with an area of 3000 square meters, competitive price.
- Customer OEM & ODM service solution
- Consecutive sales increase for 4 years. Export to more than 15 countries in Europe, the Middle East, Southeast Asia, Africa, South America and areas etc.
- Integrated department scales, purchasing, R&D, production, QC, warehouse, logistics to make your orders go smoothly
- Passed the ISO9001:2008 and international certificate as CE, ROHS Provide OEM and ODM service to overseas customer
FAQ:
1) Are you a direct factory? Or a trading company?
We're a direct factory, provide all kinds of electronic scales.
You can buy variety items from us with competitive price.
2) Can you do OEM for me?
OEM/ODM services are available. You can give us your design and special requirement.
3) Can I order one unit for a sample?
Sample is available, but you need to pay it and the freight. You can give us your detailed address and zip code to check the freight or give us your DHL Arrive Pay account.
4) What’s the payment method you can offer?
T/T, Western Union, PayPal, Escrow, L/C etc.
5) Delivery Time for sample?
2-6 days after confirming the order
6) What’s the shipping method?
By sea, air or express delivery for your option.
By sea is safer for battery products and cheaper, but slow.
By express is faster and convenience, but the freight is higher.
7) Can I do a software modification?
Of course. But MOQ is 1000pcs and you need to pay the fee first, when you make an order, we can put it in the product value.
8) Free sample is available?
Free sample for pocket scales and hanging scales are available
9) How to assure your products quality and after-sale service ?
We have CE certificate. Before making delivery, we have professional QC staff to test, inspection; Next, the salesperson will also check the whole prodcution procession now and then.
Uniweighty manufactures weighing scales from home use digital scales, commercial use counting digital scales to floor scales, et cetera. We accept any designs of your samples to develop new products. Welcome any OEM & ODM Services.
