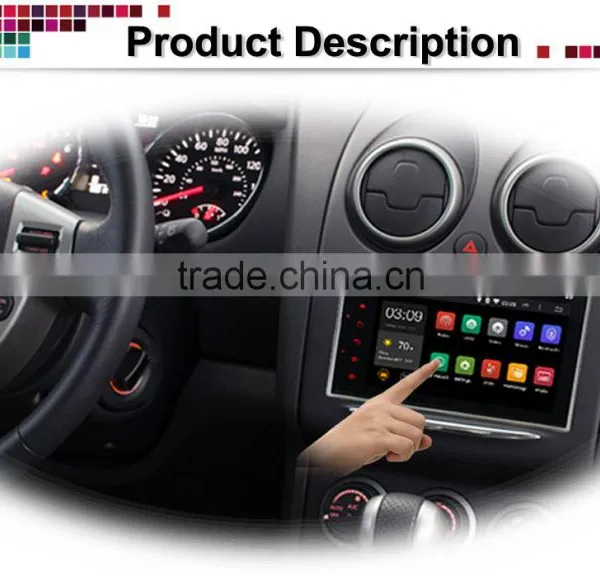

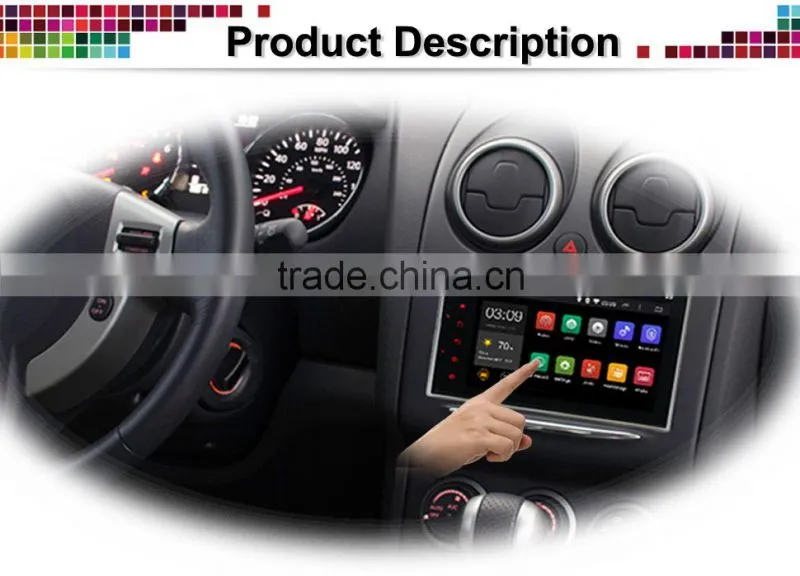

Android system 6.2'' capacitive screen 2 din multimedia with gps

FOB Price

USD $99 - $199 / Piece

1 Piece(Min.Order)

Product Details

Screen Size:	Other, 6.2''	Placement:	Dashboard	Combination:	Bluetooth-Enabled, Built-in GPS, CD Player, MP3 / MP4 Players, Radio Tuner, Touch Screen, Other, Bluetooth-Enabled, Built-in GPS, CD Player, MP3 / MP4 Players, Radio Tuner, Touch Screen, DVD
Certification:	CE FCC RoHs	Place of Origin:	Guangdong, China	Brand Name:	Neutral
Model Number:	HS-8870A	Warranty:	1 Years

Android system 6.2'' capacitive screen 2 din multimedia with gps

Basic Information:

1.Pure Android 4.4.4 System car dvd player with gps for Universal car models

2.Capacitive Screen

3.Multi-Touch Screen

4.OS:Android 4.4.4 system

5.CPU: Rockchip 3066 Cortex A9 dual-core

6.RAM: 1G Bytes DDR3

7.NAND :8G Bytes

8. Main Frenqency:1.6GHz

9.Outside OBD function

10. Support DVR function

11.Outside portable hard disk (2000GB)

Fit for car models:

Universal Car Models

Specifications:

Function Parameters
OS		Android 4.4.4 system
CPU		Rockchip 3066 Cortex A9 dual-core
RAM		SAMSUNG DDR3 1GB
Flansh		8GB
Radio		FM/AM
GPS		SIRF III

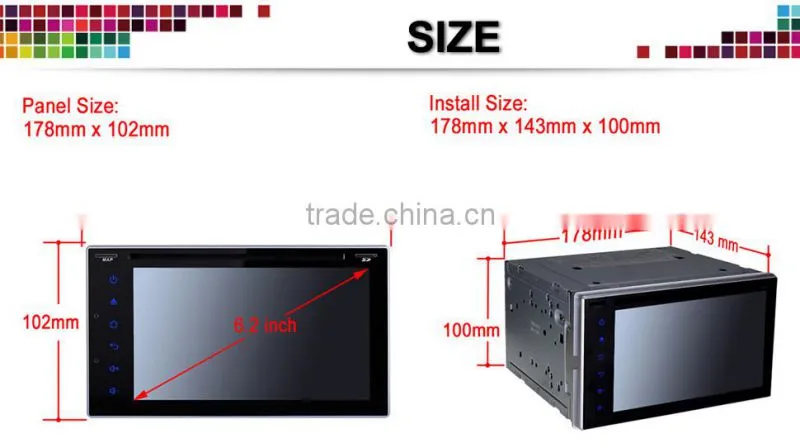

Screen		Capacitive and multi-touch screen (Original Hanstar Screen )
TFT drive IC		RK3066
Loader		FORYOU DL-30
Pick up		HITACHI 860XH
motor drive		MABUCHI
Amplifer IC		TOSHIBA 7384
DVD decoder IC		Sunplus 8202VGQ
Radio IC		ST TDA7706
Power supply		4*50W
Bluetooth		Free Wing FM3507
Video Decoder		1080P HW
WIFI		Built in
DVR		USB Camera (PC Standard)
Multi Media Parameters
Music Format		MP3,WMA,AAC,RM,LFAC etc
Video Format		MPEG-1/2/4,H264,H263,VC1,RV,RMVB,DivX,Sorenson SparK,Spark,VP8,AVS Stream…
Picture Format		JPG/BMP/JEPG/GIF/PNG
Radio Parameters
Frenqency Range		FM:76.0MHz-108.0MHz
Frenqency Range		AM: 522KHz-1620KHz
Country		China,Europe,Eastern,Europe,Russia,USA1,USA2,Japan
DVD Parameters
Vidio output range		1.0V-1.2V(75Ω)
Compatible Disc		DVD/DIVX/MP4/MP3/MP2/VCD
Amplifer Parameters
Test Voltage		13.8V
Max output power		4*50W
GPS Parameters
Operation system		Android 4.4.4
Support Map		Android 4.4.4 Map
Main Frenqency		1.6GHz
Map Solution		800*480
WIFI Parameters
Power supply		Vcc_3.3V
Suppoted Protocol/standard		IEEE802.11B/g/n compatible WLAN
Interface type		USB2.0
Frequency		2.4-2.484GHz
Modulation		OFDM/DBPSK/DQPSK/CCK
RF Power		15dBM
