1pc Ball Valve Reduced Bore ,Threaded End ,1000WOG
1000PSI/PN63
Reduce Port
Investment Csting
Blow-out Proof Stem
Thread Standard : ASME B1.20.1 BS21.,DIN259/2999
Inspection Testing : API 598 ,EN12266

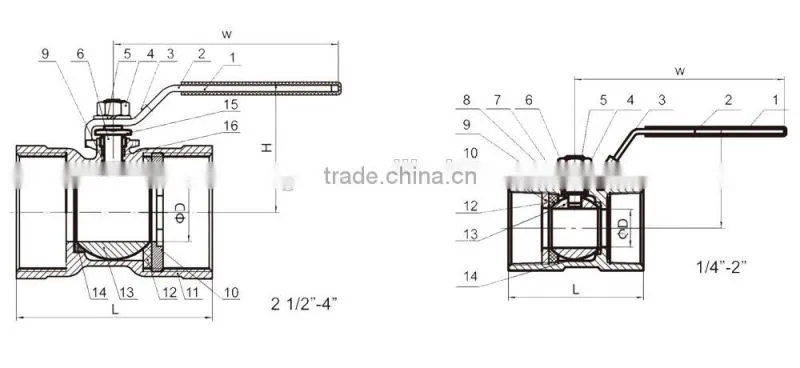

Item |
Designation |
Mterial |
1 |
Handle Sleeve |
PVC |
2 |
Handle |
304 |
3 |
Locking |
304 |
4 |
Stem nut |
304 |
5 |
Spring washer |
304 |
6 |
Stem |
304/316 |
7 |
Packing ring |
304 |
8 |
Stem packing |
PTFE |
9 |
Thrust washer |
PTFE |
10 |
Cap |
CF8/CF8M |
11 |
body |
CF8/CF8M |
12 |
Ball seat |
RPTFE |
13 |
Ball |
304/316 |
14 |
Ball seat |
PTFE |
15 |
Gland nut |
304 |
16 |
Stem packing |
PTFE |
Size |
D |
L |
H |
W |
S |
HEX |
¼” |
5 |
39 |
31 |
65 |
17 |
|
3/8” |
6.8 |
44 |
36 |
85 |
21 |
|
½” |
9.2 |
5605 |
41 |
95 |
25 |
|
¾” |
12.5 |
59 |
44 |
95 |
32 |
|
1” |
15 |
71 |
48 |
111 |
38 |
|
1-¼” |
20 |
78 |
54 |
111 |
49 |
|
1-½” |
25 |
83 |
65 |
135 |
53 |
|
2” |
32 |
100 |
72 |
135 |
65 |
|
2-½” |
38 |
120 |
80 |
154 |
83 |
OCT |
3” |
50 |
140 |
100 |
191 |
98 |
|
4” |
64 |
170 |
129 |
246 |
127 |
