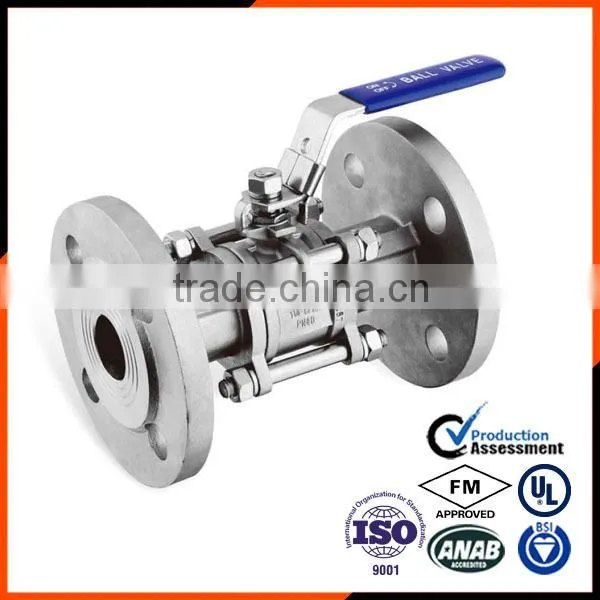

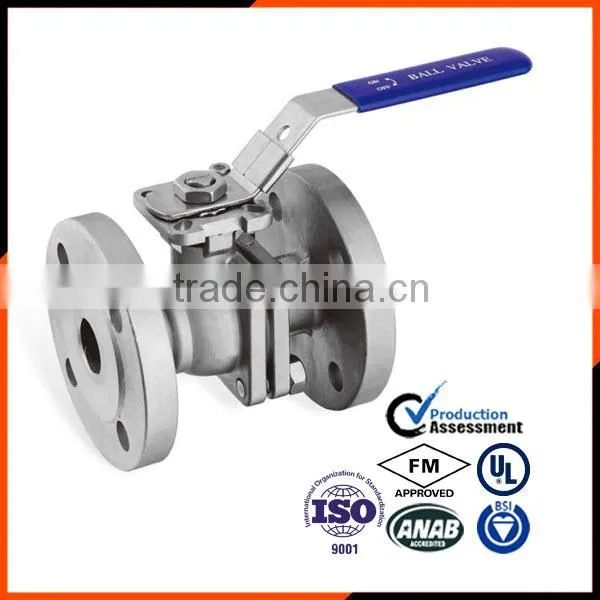

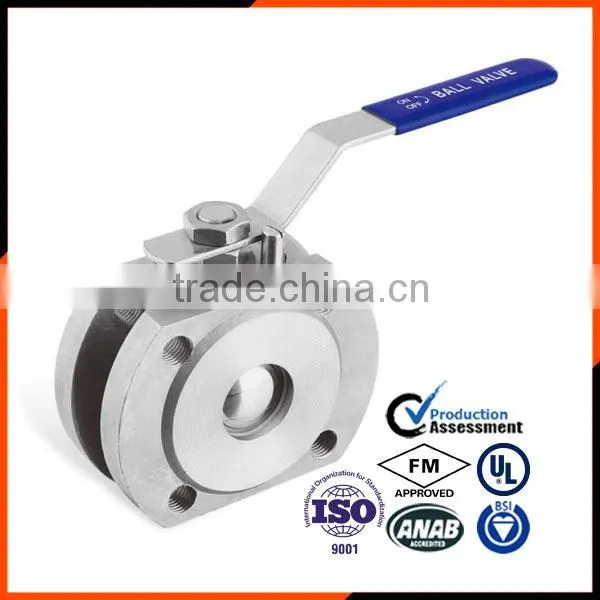

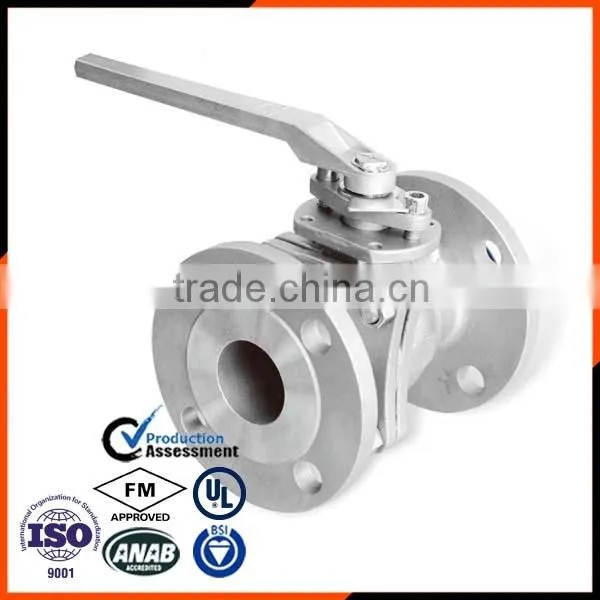

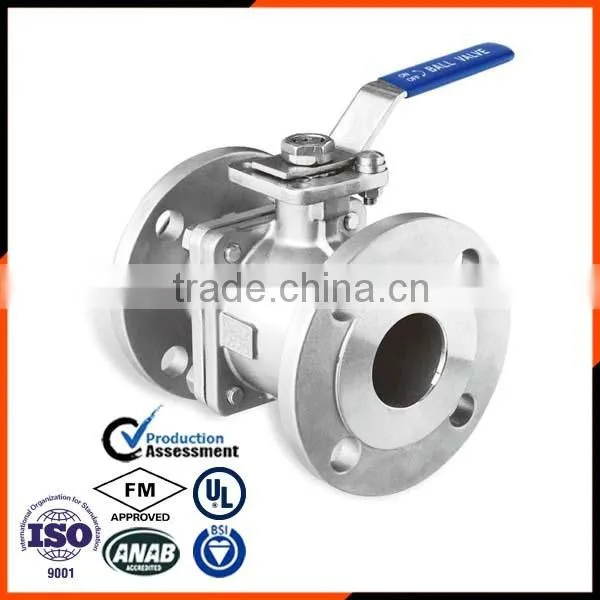

Help CenterFlanged Ball Valve In Full Port
Related Products
-
Gate Valve QF901US$ 5.46 - 50MOQ: 1000 Pieces -
Stainless Steel 304/316 ANSI/JIS/DIN Standard Ball ValveUS$ 5.46 - 50MOQ: 1000 Pieces
-
3PC Sanitary Long-Butt Weld Ball Valve QF306US$ 5.46 - 50MOQ: 1000 Pieces
-
Full Port SS304/316 Ball Valve From Chinese SupplierUS$ 5.46 - 50MOQ: 1000 Pieces
-
API598 Inspection Testing Ball Valve In Full PortUS$ 5.46 - 50MOQ: 1000 Pieces
FEATURE
JIS 10K
Full Port
Investment Casting
BLOW-OUT Proof Stem
ISO5211 Mounting Pad
PED97/23/EC(CE0035)Approves
Casting Approved AD2000-WO
Design: JIS B2002
End Flanges: JIS B2238
Inspection Testing: JIS B2003 API598

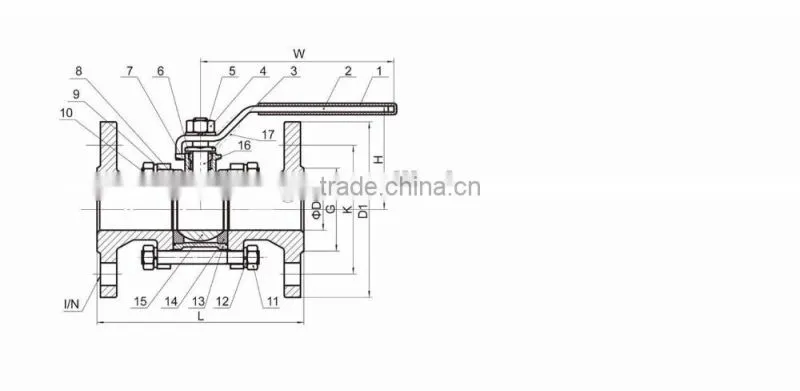

Size |
D |
L |
H |
W |
K |
S |
M |
¼” |
11 |
58 |
48 |
105 |
27.5 |
26.5 |
10-32UN |
3/8” |
12.5 |
58 |
48 |
105 |
27.5 |
26.5 |
10-32UN |
½” |
12.5 |
58 |
48 |
105 |
27.5 |
26.5 |
10-32UN |
¾” |
17.5 |
79.6 |
67 |
110 |
34.8 |
32 |
10-32UN |
1” |
22 |
86 |
70 |
125 |
34.8 |
41 |
10-32UN |
1 1/4” |
25 |
103 |
85 |
150 |
34.8 |
50 |
10-32UN |
1 1/2” |
32 |
111 |
90 |
150 |
34.8 |
55 |
10-32UN |
2” |
38 |
137 |
95 |
190 |
34.8 |
70 |
10-32UN |
ITEM |
DESIGNATION |
QTY |
MATERIAL |
1 |
BODY |
1 |
1.4408/1.4308 |
2 |
CAP |
1 |
1.4408/1.4308 |
3 |
BALL |
1 |
1.4408/1.4308 |
4 |
BALL SEAT |
2 |
PTFE |
5 |
STEM |
1 |
SUS304 |
6 |
STEM PACKING |
1 |
PTFE |
7 |
O-RING |
1 |
NBR |
8 |
V-RING PACKING |
2 |
PTFE |
9 |
STEM RING |
1 |
SUS304 |
10 |
BELIEVILLE WASHER |
2 |
SUS301 |
11 |
NUT |
2 |
SUS304 |
12 |
NIPPLE |
1 |
SUS304 |
13 |
HOSE COMMECTION |
1 |
SUS304 |
14 |
GASKETS |
1 |
SUS304 |
15 |
HANDLE |
1 |
SUS304 |
16 |
PALSTIC COVER |
1 |
PLASTIC |
17 |
BODY GASKET |
1 |
PTFE |
18 |
NUT |
4-8 |
SUS304 |
19 |
BOLT |
4-8 |
SUS304 |
