Help CenterF/M Stainless Steel Ball Valve
US$ 0.625 - 35
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Ball
Pressure:
Other, PN63/1000psi
Payment & Shipping
Payment Methods:
Port of Shipment:
Chinese Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
PN40 Wafer Flanged Ball ValveUS$ 5.46 - 50MOQ: 1000 Pieces -
2PC SS304 NPT Thread Ball ValveUS$ 1.236 - 50MOQ: 1000 Pieces
-
2PC SS304 Ball Valve WOG1000US$ 5.46 - 50MOQ: 1000 Pieces
-
2PC JIS Flanged Ball Valve With Direct ISO5211 Mounting PadUS$ 5.46 - 50MOQ: 1000 Pieces
-
11/4" 1000WOG SS304 NPT Thread Ball ValveUS$ 1.015 - 50MOQ: 1000 Pieces
Standard or Nonstandard
Standard
Structure
Ball
Pressure
Other, PN63/1000psi
Power
Manual
Material
Stainless Steel
Temperature of Media
Medium Temperature
Media
Acid
Port Size
1/2"-4"
Place of Origin
Shanxi, China
Model Number
HIG11091
Brand Name
HIG
Application
General
Product Description

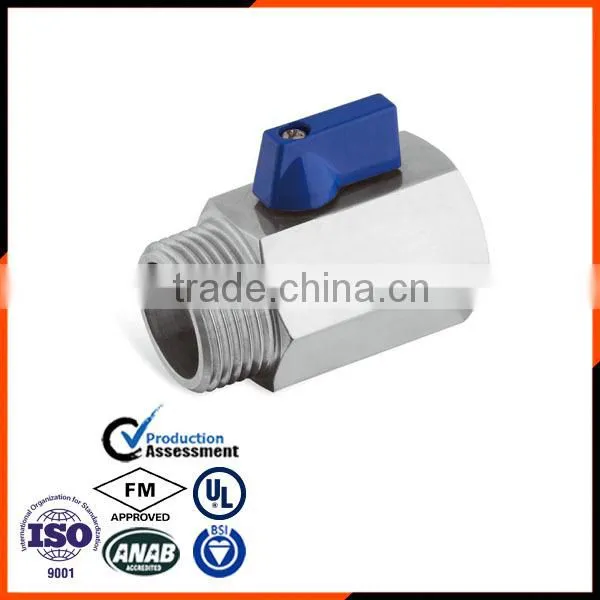

/M Mini Ball Valve
1000PSI/PN63
Reduce Port
Investment Csting
Blow-out Proof Stem
External polished
Max temperature : -25℃ to 180 ℃
PTFE Seats & seals
Thread Standard : ASME B1.20.1 BS21.,DIN259/2999
Inspection Testing : API 598 ,EN12266
Item |
Designation |
QTY |
Mterial |
1 |
O-ring |
2 |
VITON |
2 |
stem |
1 |
304/316 |
3 |
Bolt |
1 |
304 |
4 |
Lever |
1 |
Aluminum Alloy |
5 |
Body |
1 |
CF8/CF8M |
6 |
Cap |
1 |
CF8/CF8M |
7 |
Ball Seat(A) |
1 |
PTFE |
8 |
Ball |
1 |
304/316 |
9 |
Ball seat(B) |
1 |
PTFE |
10 |
Thrust Washer |
1 |
PTFE |
Size |
D |
L |
H |
W |
S |
¼” |
8 |
50 |
26.5 |
22.8 |
21 |
3/8” |
8 |
50 |
26.5 |
22.8 |
21 |
½” |
9.2 |
58 |
28.3 |
22.8 |
25 |
¾” |
12.5 |
70 |
31.5 |
22.8 |
31 |
1” |
15 |
83 |
34 |
22.8 |
38 |
