DN 25 Stainless Steel High Pressure Metal Ball Valve
US$ 5.46 - 50
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Ball
Pressure:
Medium Pressure
Payment & Shipping
Payment Methods:
Port of Shipment:
XINGANG
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Water Control Valve (2" NPT or BSPT or BSP or Other Thread Schrader Valve )US$ 5.46 - 50MOQ: 1000 Pieces -
Flanged Ball ValveUS$ 5.46 - 50MOQ: 1000 Pieces
-
Pneumatic Valve With Flanged ConnectionUS$ 5.46 - 50MOQ: 1000 Pieces
-
Handle Power Flanged Welding Ball ValveUS$ 5.46 - 50MOQ: 1000 Pieces
-
Stainless Steel Automatic Ball ValveUS$ 5.46 - 50MOQ: 1000 Pieces
Standard or Nonstandard
Standard
Structure
Ball
Pressure
Medium Pressure
Power
Manual
Material
Stainless Steel
Temperature of Media
Medium Temperature
Media
Water
Port Size
DN32
Place of Origin
Shanxi, China
Model Number
E4-HIG-2
Brand Name
HIG
Application
Other, General, Machinery
Product Description
FEATURE
- PN16/PN40
- Full Port
- Investment Casting
- BLOW-OUT Proof Stem
- ISO5211 Mounting Pad
- PED97/23/PE(CE0035)Approved
- Casting Approved AD2000-WO
- Anti-Static device(option)
- Design: EN12516
- End Flanges: DIN2542-DIN2545
- Inspection Testing: API598, EN12266

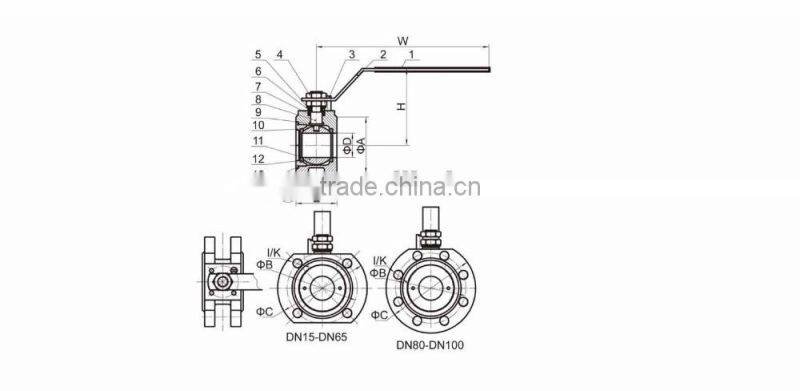

| ITEM | DESIGNATION | QTY | MATERIAL |
| 1 | HANDLE SLEEVE | 1 | PVC |
| 2 | HANDLE | 1 | 304 |
| 3 | STOP BLOCK | 1 | 304 |
| 4 | STEM NUT | 2 | 304 |
| 5 | SPRING WASHER | 2 | 304 |
| 6 | STEM RING | 1 | 304 |
| 7 | STEM PACKING | 2 | PTFE |
| 8 | STEM | 1 | 304/316 |
| 9 | THRUST WASHER | 1 | PTFE |
| 10 | CAP | 1 | CF8/CF8M |
| 11 | BALL | 1 | CF8/CF8M |
| 12 | BALL SEAT | 2 | RPTFE |
| 13 | JOINT GAST | 1 | PTFE |
| 14 | BODY | 1 | CF8/CF8M |
| Size | ΘA | ΘB | ΘC | ΘD | E | H | W | L | I/K | ISO5211 | Pressure Class |
| DN15 | 45 | 65 | 90 | 15 | 37 | 70 | 120 | 2 | 4-M12 | F03 | PN40 |
| DN20 | 58 | 75 | 105 | 20 | 40 | 73 | 120 | 2 | 4-M12 | F03 | |
| DN25 | 68 | 85 | 115 | 25 | 43 | 78 | 165 | 2 | 4-M12 | F04 | |
| DN32 | 78 | 100 | 140 | 32 | 51 | 85 | 165 | 3 | 4-M16 | F04 | |
| DN40 | 88 | 110 | 150 | 38 | 63 | 92 | 200 | 3 | 4-M16 | F05 | |
| DN50 | 102 | 125 | 165 | 50 | 81 | 100 | 200 | 3 | 4-M16 | F05 | |
| DN65 | 122 | 145 | 185 | 64 | 101 | 140 | 240 | 3 | 4-M16 | F07 | PN16 |
| DN80 | 138 | 160 | 200 | 80 | 118 | 150 | 240 | 3 | 8-M16 | F07 | |
| DN100 | 158 | 180 | 220 | 97 | 150 | 170 | 265 | 3 | 8-M16 | F10 |
