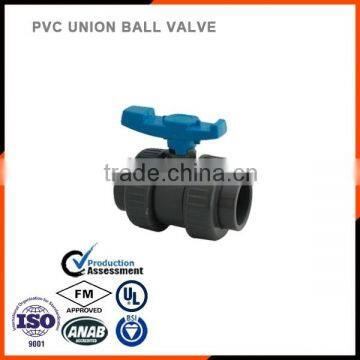

Help CenterPVC Female Thread Two Union Ball Valve
Related Products

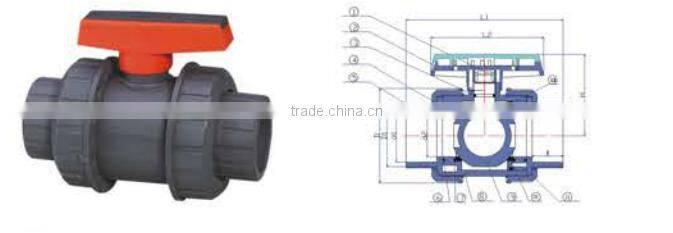

Dimensions:
| Nom Size | NPT Thd../in | BSPT Thd../in | JIS d1 | BS d1 | ANSI d1 | DIN d1 | d2 | D1 | D | I | L1 | L2 | H |
| 15mm(1/2") | 14 | 14 | 22 | 22 | 21.34 | 20 | 14 | 27.6 | 51.2 | 20.6 | 112.5 | 65 | 50.5 |
| 20mm(3/4") | 14 | 14 | 26 | 26 | 26.67 | 25 | 18.7 | 35.6 | 65.5 | 24.6 | 130.2 | 75 | 58.5 |
| 25mm(1") | 11.5 | 11 | 32 | 34 | 33.4 | 32 | 24 | 41.6 | 73.7 | 28 | 142.5 | 85 | 65.7 |
| 32mm(11/4") | 11.5 | 11 | 38 | 42 | 42.16 | 40 | 32 | 52 | 86.6 | 31 | 161 | 97 | 76.5 |
| 40mm(11/2") | 11.5 | 11 | 48 | 48 | 48.26 | 50 | 40 | 59.5 | 102 | 31.5 | 166.5 | 110 | 86 |
| 50mm(2") | 11.5 | 11 | 60 | 60 | 60.33 | 63 | 50 | 75 | 120 | 40 | 214 | 134 | 102 |
| 65mm(21/2") | 8 | 11 | 76 | 76 | 73.03 | 75 | 60 | 87.5 | 135 | 40 | 228 | 161 | 113 |
| 80mm(3") | 8 | 11 | 89 | 89 | 88.9 | 90 | 79 | 107.5 | 188 | 48 | 269 | 200 | 161 |
| 100mm(4") | 8 | 11 | 114 | 114 | 14.3 | 110 | 99 | 132 | 216 | 56 | 309 | 240 | 174 |
Specification:
Color White/Grey/Black/Blue many colors are available
Material PVC Body; ABS Handle; PP Ball; TPE Sealing (Santoprene)
Size 1/2, 3/4",1", 1-1/4",1-1/2", 2", 2-1/2'', 3'', 4'',6”, 8”
Standards: GB, ASTM,BS, DIN, JIS
Technolody: Injection Moulding
Connection: Socket or Thread
Packing: Transparent plastic bags first, and then load strong cartons
Main Parts Material:
| NO. | PART | MATERIAL | Q'ty |
| 1 | Stem | PVC ,CPVC,PP | 1 |
| 2 | Handle | ABS | 1 |
| 3 | Stem O-Ring | EPDM,FPM(NBR) | 2 |
| 4 | Union Nut | PVC | 2 |
| 5 | End Connector | PVC ,CPVC,PP | 2 |
| 6 | Body O-Ring | PVC ,CPVC,PP | 2 |
| 7 | O-Ring | EPDM,FPM(NBR) | 2 |
| 8 | Body | PVC ,CPVC,PP | 1 |
| 9 | Ball | PVC ,CPVC,PP | 1 |
| 10 | Seat Seal | PTFE | 2 |
| 11 | Seat Carrier | PVC ,CPVC,PP | 1 |
| 12 | Carrier O-Ring | EPDM,FPM(NBR) | 1 |
Characteristics:
• Healthy and non-toxic, free of stain and scale
• Light weight,easy to handle and transport
• High temperature resistance (maximum water temperature is up to 90oC and high pressure resistance is over 8MPa)
• Hot welding connection adopted, making pipes and fittings into whole, leakage effectively prevented
• Excellent heat insulation property from minimum thermal conductivity (only one hundredth of that of metal pipes)
• Smooth inner wall, reducing pressure loss and increasing flow speed
• Low noise, reduced by 40% compared to galvanized steel pipes
• Soft colors and excellent design, suitable for installation either exposed or hidden
• Wonderful ability in chemical corrosion resistance
• Easy and fast installation, making cost minimized
Application:
Water project in construction.
Water treatment for swimming pool.
Water project in pisciculture.
Irrigation for agriculture.
Petroleum chemical industry.
Solar water system.
Production Shows :
