Home > Industrial Equipment & Components > Fastener & Fitting > Gasket & Washer > Basic Type Spiral Wound Oven Door Rubber Gasket

Basic Type Spiral Wound Oven Door Rubber Gasket

Name: Basic Type Spiral Wound Oven Door Rubber Gasket
Brand: HIG-01
SKU: 116322299
Availability: InStock

Basic Type Spiral Wound Oven Door Rubber Gasket thumbnail-1

Basic Type Spiral Wound Oven Door Rubber Gasket photo-1

US$ 0.10 - 0.10 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Shanxi, China

Brand Name:

HIG-01

Model Number:

Seals Gasket

Contact Supplier Request Quote Chat Now

Shanxi Goodwill Industrial & Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

XINGANG PORT CHINA

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shanxi, China

Brand Name HIG-01

Model Number Seals Gasket

Material Metal

Shape Ring Gasket

Standard or Nonstandard Standard

Product Description

Specification:

1.Products are manufactured in accordance with all relevant gasket standards to suit flange designations: ASME B 16.20, ASME B 16.5, BS1560, ASME B 16.47 A (B), BS EN 1092, DIN, JIS, and NF, etc.

2.Color cord as ASME B 16.20 on request.

Product Standards:

Our production is in compliance with the standards of ASME B 16.20, MSS SP-44, API 605, DIN, JIS, JPI, BS 1560, JG / T, GB / T, HG, SH, etc. Or products can be customized according to the costumer requirements. Please provide the specific drawings if the gasket is used in the heat exchanger with ribs.

TYPE OF SPIRAL WOUND GASKET:

spiral wound gasekest,have 4 types:

SW - Basic Type

Basic construction type without solid outer and inner ring is reinforced with several plies of metal with
filler to give greater stability and better compression characteristics. - Suitable for tongue and groove, male
and female or grooved to flat face flange assemblies.

SWI - Inner Ring Type

Solid inner metal ring acts as a compression stopper. To prevent accumulation of solids, reduce
turbulent flow of process fluids and minimize erosion. The gasket is between flange bore and the inside
diameter.The annular space is filled up by solid inner metal ring. - Suitable for male and female pipe flanges .

SWC - Outer Ring Type

Solid outer ring accurately locates the gasket on the flange face to give the additional radial strength to
prevent the gasket blowout and acts as a compression limiter. In case of installing the outer ring, it is very easy
to install the gasket to flange face because the end of outer ring will touch at bolts - Suitable for use with flat
face and raised face flanges.

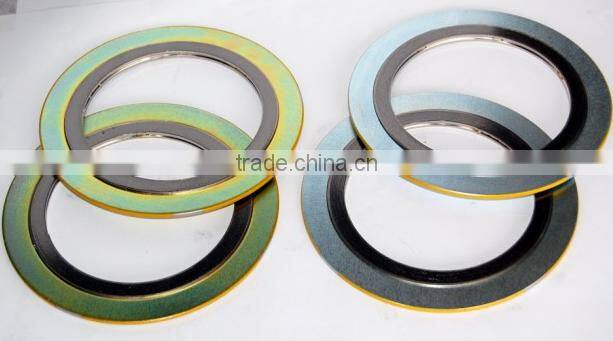

SWCI - Inner & Outer Rings Type

An inner ring and outer ring type gasket will give an additional compression limiting stopper for gasket inner
and outer side. It will prevent the corrosion on flange face at annular space. - Suitable for use with flat face
and raised face flanges and specified for high pressure/temperature service - Class 900LB and above or where
corrosive or toxic media are present.

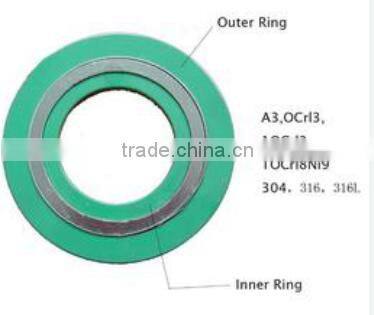

Structure :

1.Metal strip: the processed metal strip has good elasticity and recovery. It provides the filler enough tensile strength.

2.Filler: this part is the main body of the gasket and different material is used in different conditions

3.Centering ring:the centering ring does not come into direct contact with contained fluid. It is normally made of carbon steel and electro plate or painted to avoid corrosion. Other materials are available on request.

4.Inner ring:inner ring is used to avoid excessive compression due to high seating stress in high pressure service and it is also used to reduce turbulence in the flange area. It is normally made of the same material as the gasket metallic strip.
