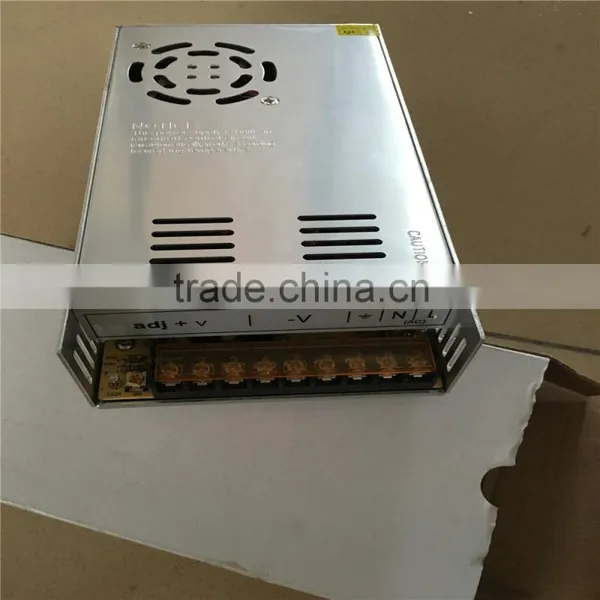

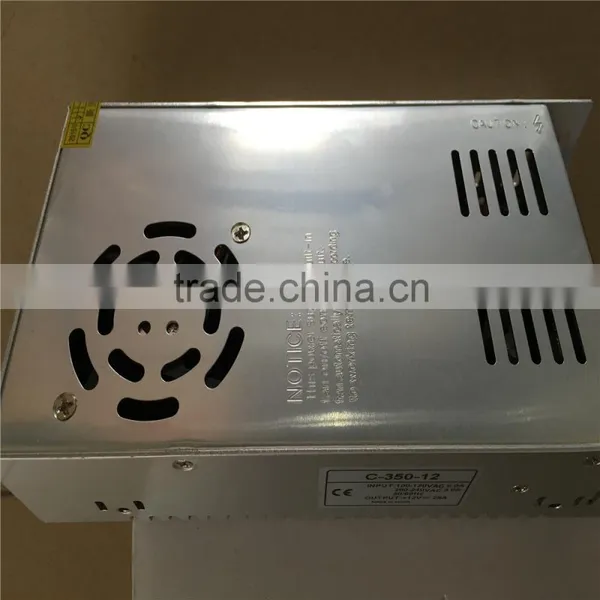

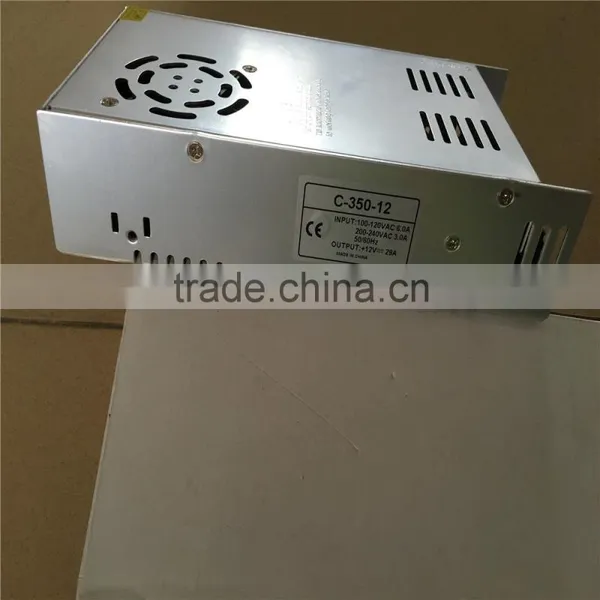

350w Single Output Power Supply 350w 12v Model Power Supply 12v 30a Switch Power Supply Quality Choice
US$ 12.00 - 15.00
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SCOTT
Model Number:
SC-350-12
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
12V 20A AC/DC Switching Power Supply 240W With CE ROHS Approved Quality ChoiceUS$ 8.00 - 10.00MOQ: 1 Piece -
VAHLE Motorized Cable Reels for Power Supply to Movable Equipment for Automatic Winding of Power or Control Cables Quality ChoiceUS$ 12.00 - 15.00MOQ: 1 Piece
-
Multi-porpuse Rechargeable Power Supply - Electric Power GeneratorUS$ 12.00 - 15.00MOQ: 1 Piece
-
350W-24V Led Power SupplyUS$ 12.00 - 15.00MOQ: 1 Piece
-
12V/500W Switching Power Supply, LED Power DriverUS$ 27.56 - 27.56MOQ: 5 Pieces
Place of Origin
Guangdong, China
Brand Name
SCOTT
Model Number
SC-350-12
Output Power
301 - 400W
Output Type
Single
Input Voltage
Other, 110V-220V
Output Voltage
12V
Output Frequency
50/60Hz
Output Current
30A
350w single output power supply 350w 12v model power supply 12v 30a switch power supply
Specifications:
| Model Specification | SC-350-5 | SC-350-12 | SC-350-24 | S-250-48 |
| DC output voltage | 5V | 12V | 24V | 48V |
| Output voltage error | ±2% | ±1% | ±1% | ±1% |
| Rated output current | 70A | 30A | 15A | 5A |
| Wave and noise | 150mVp-p | 150mVp-p | 150mVp-p | 150mVp-p |
| Inlet stability | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Load stability | ±1% | ±0.5% | ±0.5% | ±0.5% |
| DC output power | 350W | 360W | 3600W | 205W |
| Efficiency | 79% | 83% | 84% | 86% |
| Adjustable range for DC voltage | 4.5-5.6V | 10-13.2V | 20-26.4V | 41-56V |
| AC input voltage range | 90~132VAC/180~264VAC BY SWITCH 47~63Hz;248~370VDC | |||
| Input current | 6.5A/115V 4A/230V | |||
| AC impulse current | 25A/115V 50A/230V | |||
| Leakage current | <3.5mA/240VAC | |||
| Overload protection | 105%~135%. Type,PULSING HICCUP SHUTDOWN; Reset,auto recovery | |||
| Over-voltage protection | 5.75-6.75V | 13.8-16.2V | 27.6-32V | 57.6-67.2V |
| High-temperature protection | RTH3>=65°C FAN ON<=55°C FAN OFF>=80°CCut off output(5~15V) | |||
| RTH3>=70°C FAN ON<=60°C FAN OFF>=85°CCut off output(24~48V) | ||||
| Temperature coefficient | ±0.03%°C(0~50°C) | |||
| Setup rise hold up time | 200ms,50ms,20ms | |||
| Vibration | 10~500Hz,2G 10min./1cycle,Period for 60min,EACH AXES | |||
| Withstand voltage | Input and output interval,1.5KVAC,Input and enclosure,1.5KVAC,Output and enclosure,0.5KVAC | |||
| Isolation resistance | Input and output interval,Input and enclosure,Output and enclosure,500VAC/100M Ohms | |||
| Working temperature and humidity | -10°C~+50°C,20~90%RH | |||
| Store temperature and humidity | -20°C~+85°C,10~95%RH | |||
| Overall dimension | 215*115*50mm | |||
| Weight | 0.93Kgs /17pcs per carton | |||
| Safety standards | Design refer to UL1012, EN60950-1,EN61347-1,EN-61347-2 approved | |||
| EMC standards | EN55015,EN55022,EN55024,EN61000-2,EN61000-3,EN61547 approved | |||
| Note,1.The testing condition for the parameter above is,230VAC input, rated load,25°C 70%Rh,Humidity | ||||
| 2.Error,include the setting error, line stability and load stability.(Note,5) | ||||
| 3.Wave test,adopting“A12”double wire for 20MHz,and 0.1uF&uF capacitor short-circuit for interrupting | ||||
| 4.Inlet voltage stability test, when is over load, the lowest voltage of inlet is representative to the highest voltage. | ||||
| 5.Load stability test: The load is from 0% to 100%,others 60%. | ||||
| 6.C2,3,11must be knocked down | ||||
