Home > Products > casting iron valve > Handle Type Flanged Sewage Gate Valve

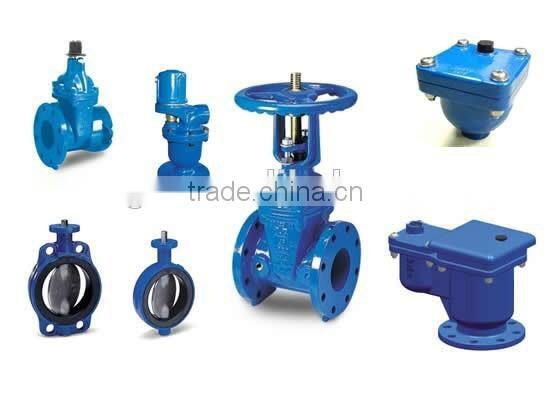

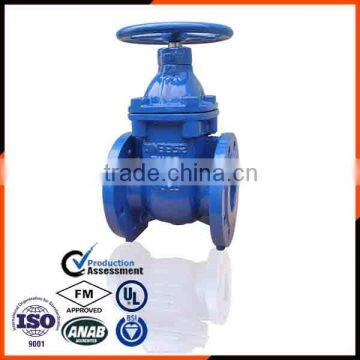

Handle Type Flanged Sewage Gate Valve
- 2000 Piece / Pieces per Month
- Tianjin Port China
- T/T L/C D/P D/A
Product Details
| Standard or Nonstandard: | Standard | Structure: | Gate | Pressure: | Other, Medium Pressure, 150lbs |
| Power: | Manual | Material: | Casting | Temperature of Media: | Medium Temperature |
| Media: | Water | Port Size: | DN80 | Place of Origin: | Shanxi, China |
| Model Number: | E4-Welding gate valve | Brand Name: | HIG | Application: | General |
Product Description
EZSeriesResilientSeatedNRSGateValveacc.toDIN3352
ResilientSeatedNRSDuctileIronGateValve
Range of Application : Water, Sea Water, Air, etc. | ||||
Size | Pressure Testing | Working Temperature °C | ||
PN | Shell | Sealing | ||
DN50-DN600 | 1.6 Mpa | 2.4 Mpa | 1.76 Mpa | -15 ~ +425 |
Parts Name | Materials | Parts Name | Materials |
Body | A 536-65-45-12 | Washer | SS304 |
Disc | A 536-65-45-12+EPDM | Dust Ring | EPDM |
Stem | SS410 | Gland Flange | A 536-65-45-12 |
Sealing Face | EPDM | Hand Wheel | A 536-65-45-12 |
StemCopper Nut | C86400 | Bonnet | A 536-65-45-12 |
Size | Face to Face Dimensions. | Dimensions | Weight | |
DN mm | L mm | D mm | H mm | Kg |
50 | 250 | 165 | 249 | 11 |
65 | 270 | 185 | 274 | 14 |
80 | 280 | 200 | 310 | 24 |
100 | 300 | 220 | 338 | 26 |
125 | 325 | 250 | 406 | 35 |
150 | 350 | 285 | 470 | 44 |
200 | 400 | 340 | 560 | 80 |
250 300 | 450 500 | 395/405 445/460 | 642 740 | 116 156 |
350 | 550 | 505/520 | 802 | 230 |
400 | 600 | 565/580 | 907 | 495 |
450 | 650 | 615/640 | 997 | 518 |
500 | 700 | 670/715 | 1110 | 552 |
600 | 800 | 780/840 | 1288 | 610 |
Application:
Inorganic Chemicals, Bulk Chemicals, OEM, Plastics, Offshore, Pulp and Paper, Coatings (pulp and paper), Emissions Reduction, General Processing Industry, Slurries, Bleach Chemical (pulp and paper), Utility, Carbon Pulp Transfer, Water Supply, Cooling Water (metals), General Purpose, Metal and Steel Industry, Oil Production, Polymerization, Slurry Transfer (mining), Erosive Services, Mine Dewatering, Oil Transportation, Polymers, Recycling Services, Boiler Feed (pulp and paper), Mineral Processing, Organic Chemicals, Renewable Fuel Production, Condensate, Digester, Hydrocarbon Processing, Mining, Cellulose Fiber Slurries, Crude Oil Transfer, Paper Stock, Power Generation, Cement Production, Light Slurries, Petrochemical Processing, Lime Circulation, Petroleum Distribution, Chemical Processing, Fibrous Materials, Industrial Gases, Petroleum Production and Refining, Industrial Plant Services, Chemical and Liquor (pulp and paper)
Industries:
Cooling Water - Metals, Wastewater Collection and Treatment, Dewatering & Water Supply, Water Handling and Treatment, General Industries, Water Resources, Mining, Water Supply and Distribution, Miscellaneous Services, Water Treatment, OEM, Oil and Gas, Polymers, Power Generation, Primary Metals, Pulp and Paper, Slurry Processing, Slurry Transfer, Caustic and Chlor-Alkali, Steam Systems, Chemical Processing, Utilities, Condensate Systems, Waste Processing, Cooling Systems
Characteristics:
l It is simple structure : good interchangeability and low price
l Stem sealing is not easy deformation ,so avoids leakage phenomenon.
l Overall support is good ,stable and solid
l Use less rubber of seat ,so expansion has small impaction and easy to control torque value at an appropriate range .`
l Applying to two pieces of no-sells connection ,structure is simple and
convenient to be maintained
l Butterfly disc owns automatic alignment function and achieved small
combination of disc and seat .
l Phenolic back seat is featured such as no loss ,tensile ,anti-leak ,convenient replacement etc.
l For seat sealing surface and phenolic back as a whole ,it can reduce amount of deformation .
