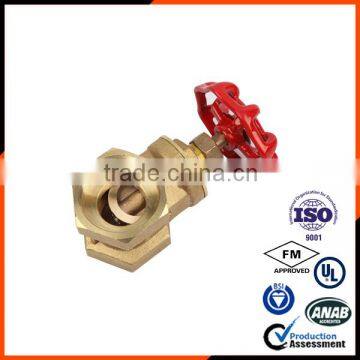

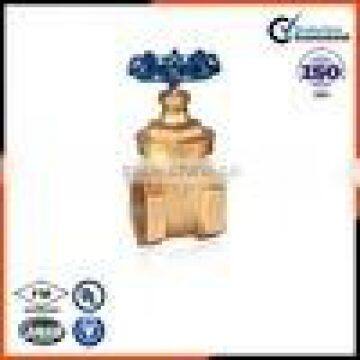

Help CenterDn 15 20 25 32 40 Brass Compression Vacuum Gate Valve
Related Products
-
Flange Connection Slide Brass Gate ValveUS$ 1 - 6MOQ: 1000 Pieces -
Brass Gate Valve for Water Red HandleUS$ 0.5 - 15MOQ: 1 Piece
-
2in Brass Flange Gate Valve for WaterUS$ 0.6 - 100MOQ: 1 Piece
-
2 Inch Pn16 Brass Gate Valve Water PumpUS$ 1 - 60MOQ: 500 Pieces
-
150 Pressure Brass Ball Valve 3 InchUS$ 0.1 - 120MOQ: 1 Piece
| Brass Gate Valve |

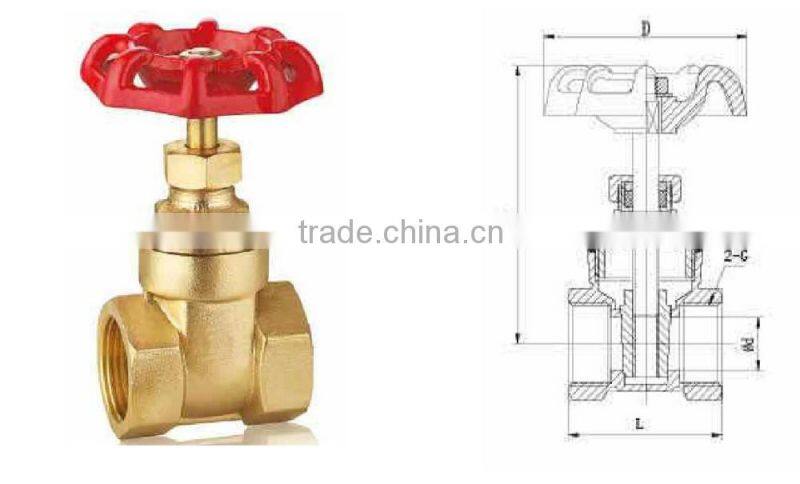

| DN | SIZE | L | d | H | D |
| 15 | 1/2 | 43 | 14 | 70 | 53 |
| 20 | 3/4 | 47 | 18 | 78 | 53 |
| 25 | 1 | 52.5 | 20 | 83 | 58 |
| 32 | 11/4 | 57 | 27.5 | 100 | 71 |
| 40 | 11/2 | 62 | 34 | 110 | 71 |
| 50 | 2 | 68 | 45 | 132 | 78 |
| TECHNICAL STANDARD | |||||
| SIZE | DN15-DN50(1/2“-2”) | ||||
| Nominal pressure | 1.6MPa | ||||
| Applicable memperature | water,non-corrosive liquid | ||||
| Applicable temperature | -20℃≤T≤150℃ | ||||
| Thread standard | ISO228 | ||||
| ADVANTAGES | |||||
|
1.We apply valve holder structure for the Convenience of the adjustment. | |||||
|
2.We apply gasket seal for valve body and cap with the convenient removal and maintenance. | |||||
|
3.We apply trapezoidal threaded connection for valve stem and wedge disc so that wedge disc can be automatically regulated with the better seal effect |
Packing Detail : 1.Industrial packing: Outer Carton 40*24.5*22.5 CM
Inner Carton 17.5*11*7.5CM
2.Commercial packing: inner Carton+outer Carton
3. Packing:As the clients' requirement (Custom packaging optional)
Delivery Detail: 1.Normally ready goods and stock within 25-30 days.
2.Packing information will be confirmed before the production finished,
If no special requirement , using our normal package.
