Water Treatment Mahine,CTO Carbon Filter Cartridge Machine,Hongteng Designed, Improved

Name: Water Treatment Mahine,CTO Carbon Filter Cartridge Machine,Hongteng Designed, Improved
Brand: WXHT
SKU: 116318685

US$ 8,000 - 16,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

WXHT

Model Number:

HT002

Wuxi Hongteng Plastic Machinery Factory

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name WXHT

Model Number HT002

Wuxi Hongteng Plastic Factory,has been specialized in CTO carbon filter machine for 25 years,with which we guarantee the quality of priducts.

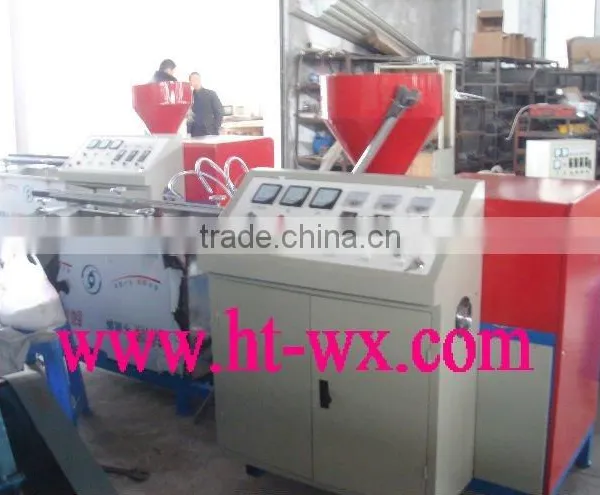

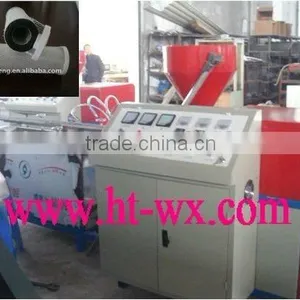

Whole production line of CTO carbon filter cartridge machine:

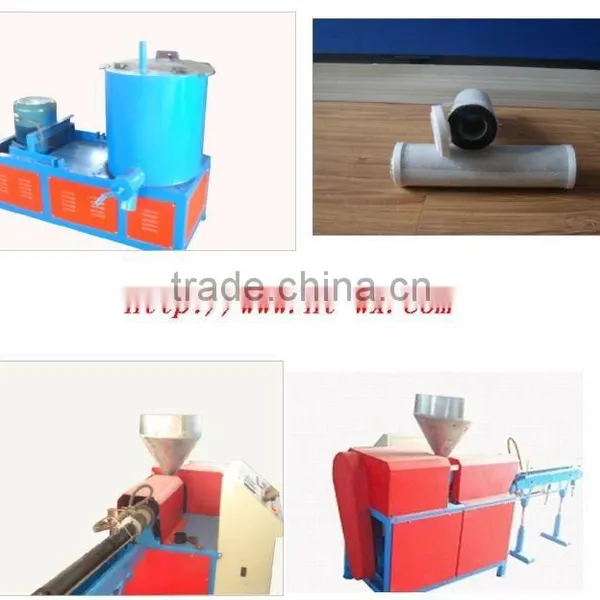

Automatic mixer	1 set power:3kw weight:110kg D:800mm H:1300mm mix active carbon and PE glue automatically
Automatic feeder	1 set power:1.5kw weight:75kg feed raw material into extruder

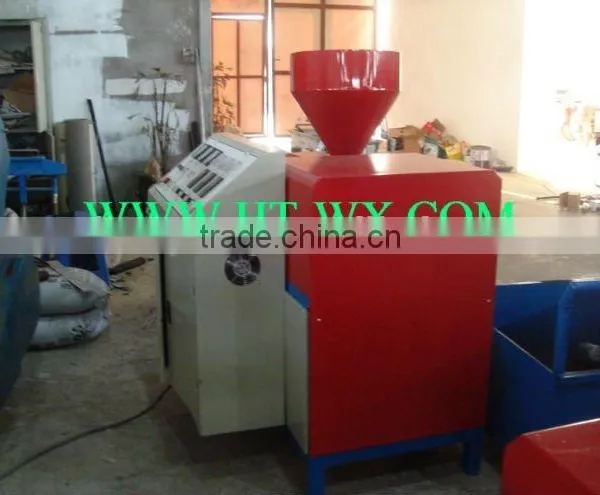

Exturder	1 set motor power:5.5kw heating power:4kw weight:350kg 900mm1700mm1500mm
cooling system	1 set power:0.25kw cool the filter cartridges
Cutting machine	1 set power:2.2kw cut down the filter cartridges into customized length
Dust extraction	1 set

Rated power:16.45kw/set

Running power:8kw/h

Production capacity:300-400mm/minute or 150-200mm/minute

Weight:2100kgs

Voltage:AC380v or DC220v

Dimension:1.5m*9m

Advantages:

--1.Advanced computer model control system control the whole production line automaticly

--2.Temperatue control system ensures stable outable

--3.Long using life and easy maintenance

--4.low electric consumption

Carbon filter cartridge

Raw material	PE power or active carbon granule
Inner diameter	9-100mm
Outer diameter	29-150mm
Length	customized
Max operating tempreture	52°c
Max positive pressure	0.4Mpa(25°c)
applicable PH value	1-13
particular removel efficiency	99%
