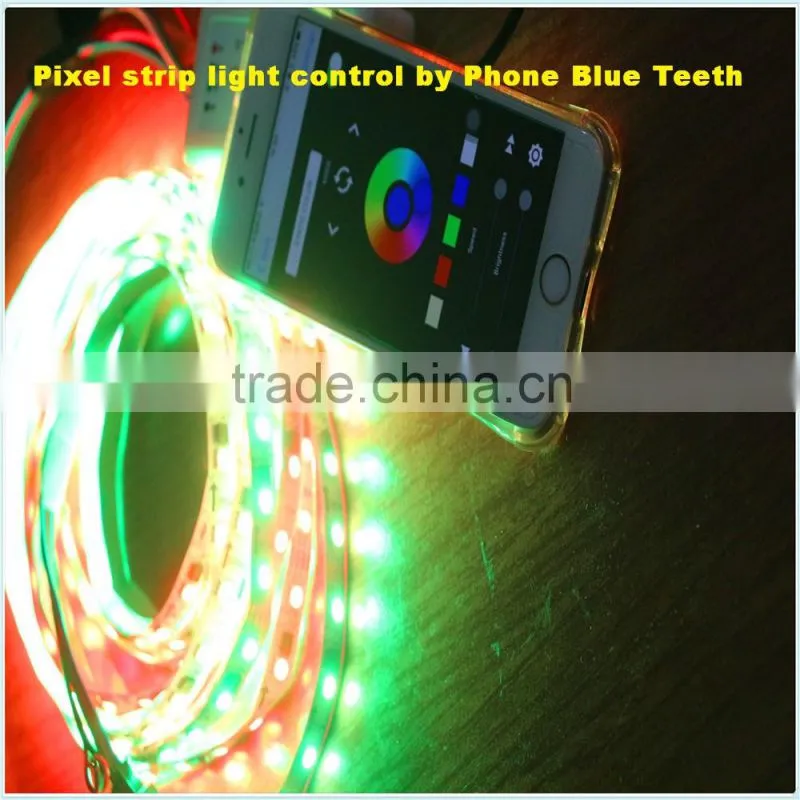

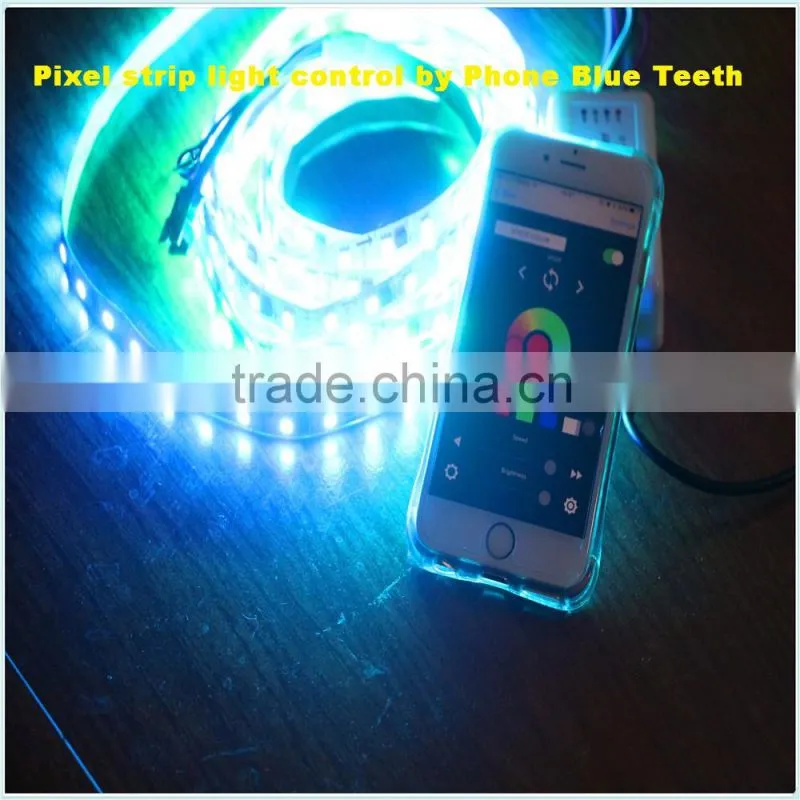

Led Pixel Strip Light Control by Bluetooth Magic Controller
US$ 10.89 - 15.00
MOQ: 1 Meter
Key Specifications
Get Latest Price
LED Light Source:
SMD5050
Type:
Flex LED Strips
Input Voltage(V):
DC5V
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SK6812 LED Digital Strip,30 Leds/m,DC5V 5m/reel, With 30pcs SK6812 Built-in the 5050 Smd Rgb Led Chip,30 Pixels/m, SK6812 4pins Supplier's ChoiceUS$ 2.53 - 3.22MOQ: 5 Meters -
Ws2812b Upgrade 30pixel Ws2811, Express Chinese Rgb Led Strip 5v Tv,ic Ws2812b Addressable LED Strips 5V Light Supplier's ChoiceUS$ 3.62 - 4.00MOQ: 5 Meters
-
Ws2812b Upgrade5m/roll DC5V WS2813 Cuttable 5v 5050 Ws2812b Individually Addressable Led Strip LightUS$ 3.62 - 4.00MOQ: 5 Meters
-
Ws2812b Upgrade5m/roll DC5V WS2813 30 LEDs/m WS2812B Waterproof Rgb Led Strip Light Supplier's ChoiceUS$ 3.62 - 4.00MOQ: 5 Meters
-
DC 5V 30leds/meter White/black PCB Digital Addressable WS2813 RGB LED Strip LightsUS$ 3.62 - 4.00MOQ: 5 Meters
LED Light Source
SMD5050
Type
Flex LED Strips
Input Voltage(V)
DC5V
Lamp Power
7.2W/M
Lamp Luminous Flux(lm)
20-22LM
Color Temperature(CCT)
Color
Working Temperature(℃)
-20, 40
Working Lifetime(Hour)
30000
Lamp Body Material
Aluminum Alloy
Certification
CCC, CE
Emitting Color
Changeable
Place of Origin
Guangdong, China
Brand Name
SCOTT
Model Number
SC-SPE105E
led pixel strip light control by bluetooth magic
controller
Technical Specification:
After the scan, it is not automatically to connect devices only when need to control the device.
Connection: Bluetooth 4.0
Applicable phone operating system: IOS version 6.0 or above, Android version 4.3 or more
Each group can control 4 devices and can reach free group control.
Connection Methods:Bluetooth Version 4.0 above.
Suitable Phone OS:IOS version 6.0 above and Android 4.3 above
Software language:English , Chinese.
Working Temperature:-20℃-60℃
Working Voltage:DC12V-24V
Output channel: 3CH/RGB
Output current:4A/CH 12V<144W
Effective Remote Distance: 15-20M.
N.W: 46g
G.W: 111g
Size:86*45*23mm
Specifications about WS2813 LED Strip:
| Item Number | SC-SK6812-5050-30-5 |
| LED Pixel Quantity | 30PCS SMD5050/M,30pixel/m |
| IC Type | SK6812 (IC Built in SMD5050 RGB LED) |
| Wattage | 7.2W/M |
| PCB Size | 10mm width, |
| Length/Reel | 5M (other length also can be make) |
| Working Voltage | DC5V |
| Wave Length |
Red:620-625nm Green:522.5-525nm Blue:467.5-470nm |
| Light Color | digital RGB,Each LED separately control |
| IP Grade | IP20:Non waterproof) |
| IP65:Soft glue waterproof with 3M Adhesive tape on the back | |
| IP67:Soft tube waterproof | |
| PCB Color | White ,Black |
| Working temperature | -20 to 60°C |
| View Angle | 120° |
| Life Span | >50000hrs |
