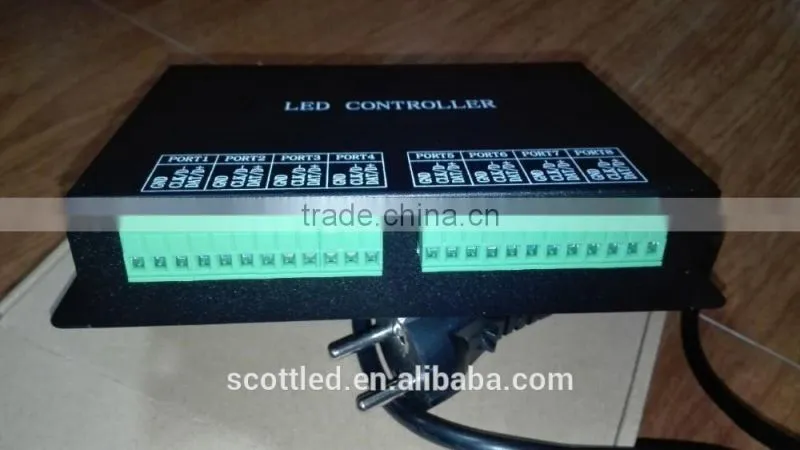

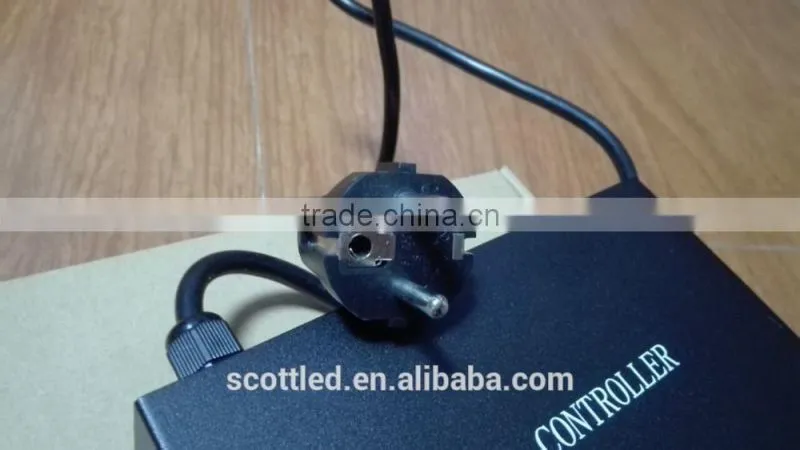

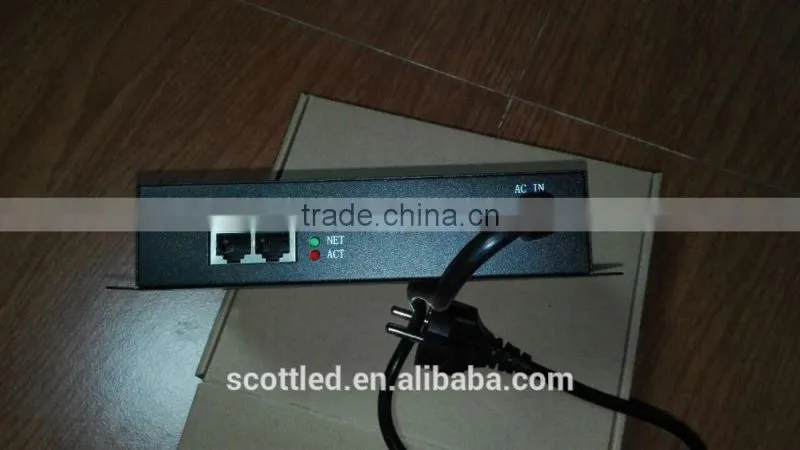

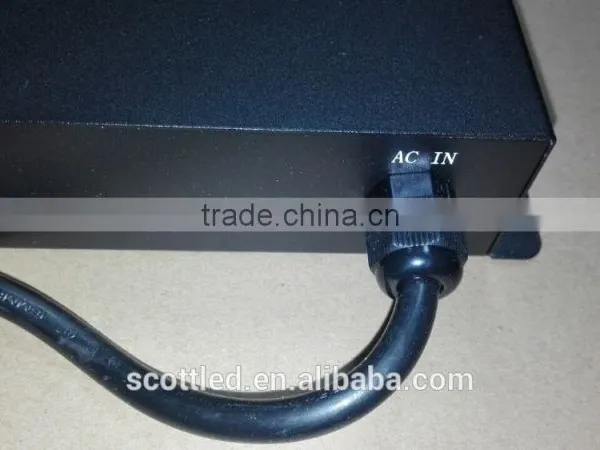

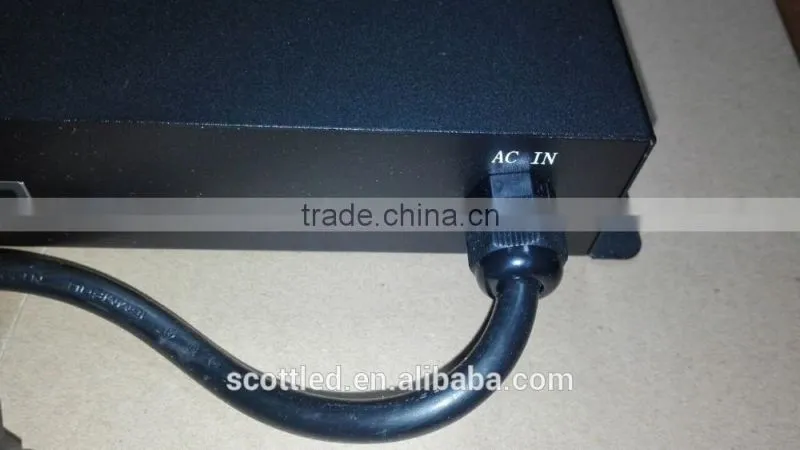

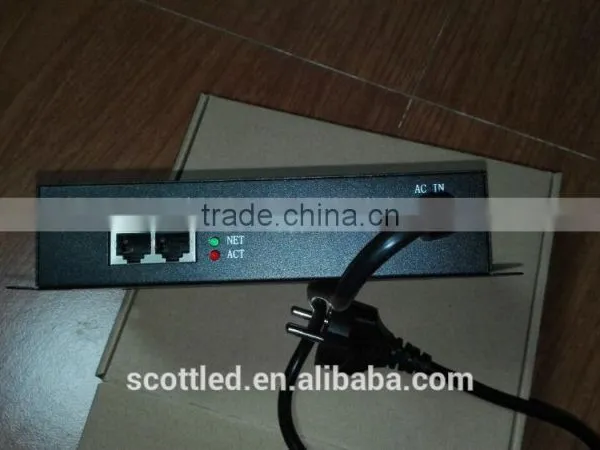

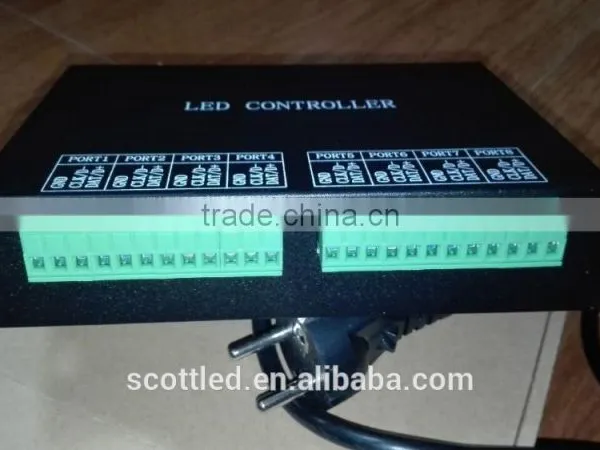

2016 T-100K computer control online led pixel controller
T-100K (red dip switch) :
Support chips |
LedEdit corresponding model |
Single one support lights |
Remarks |
LPD6803,D705,1101,6909,6912 |
T-100K-6803 |
8192pixels |
|
LPD8806,LPD8809 |
T-100K-8806 |
4096pixels |
|
TM1803,TM1804,TM1809,TM1812 |
T-100K-TM |
4096pixels |
TM1804 and TM1809 are divided into high and low speed |
DMX512 |
T-100K-DMX |
1360/4096pixels |
Compatible with DMX512 agreement |
WS2801,WS2803 |
T-100K-WS |
4096pixels |
|
TLS3001,TLS3002 |
T-100K-TLS |
4096pixels |
|
P9813 |
T-100K-P9813 |
4096pixels |
|
SM16715 |
T-100K-SM16715 |
4096pixels |
|
SM16716 |
T-100K-SM16716 |
4096pixels |
|
BS0815 |
T-100K-0815 |
4096pixels |
|
Eight-port online T-100K(new)introduction
T-100K system features
1,32—256 Gray, Gamma correction procession software
2,Combined with video encoding and broadcasting software LedEdit , support rules and specific-shaped handle, and other points, line lights source
3,Eight-port output,port 512/1024 lights, can online but also offline,computer online can support 240000 pixels points
4,Connect the computer network port directly
5,Can download programs to the controller from computer
6,Use a serial cable between controllers cascaded without external switches
7,Controller encoding use the hardware DIP settings to make the project more stable in use
We provide two different products according to different applications T-100K and T-100K-B
T-100K |
Eight-port on-line controller Can also be played off-line Port 512 points Frame rate of 30 frames/sec to sure 5,For different IC, controller burn different programs |
