SK6812 Addressable RGBW LED Strip 4 Chips in 5050 LED Rgb + Warm White Rgb + Cool White Rgb + Neutral White

SK6812 Addressable RGBW LED strip 4 chips in 5050 LED rgb + warm white rgb + cool white rgb + neutral white

INTEGRATED LIGHT SOURCE INTELLIGENT CONTROL

OF CHIP-ON-TOP SMD TYPE LED
Model: SK6812
1. Product Overview :

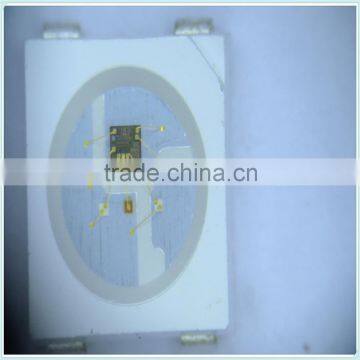

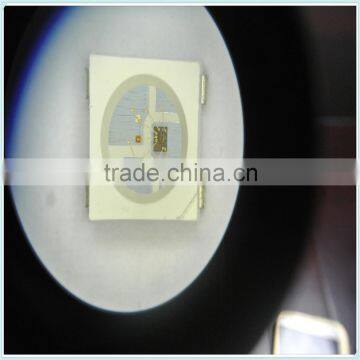

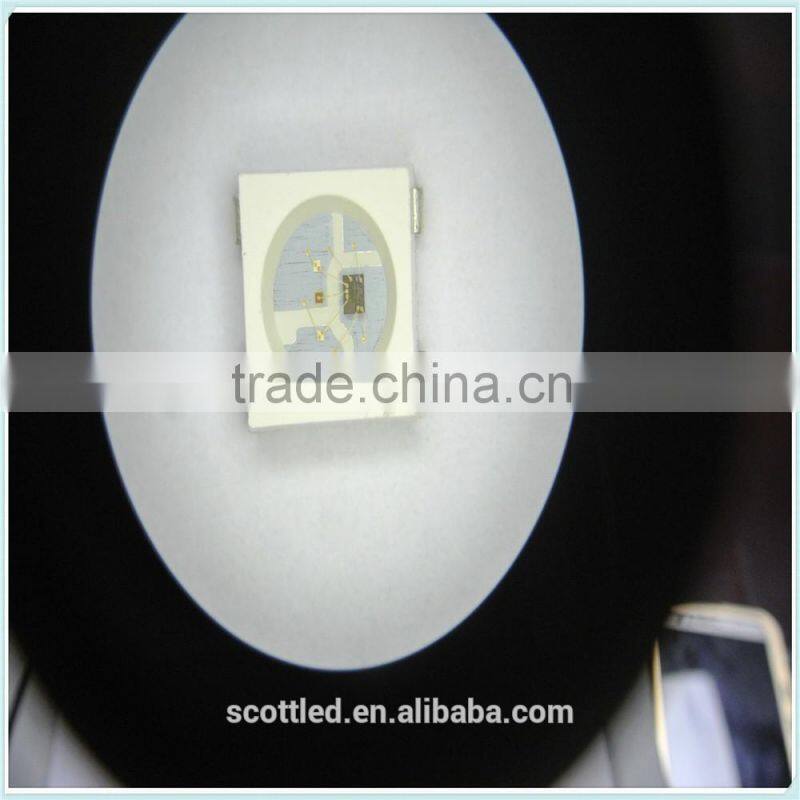

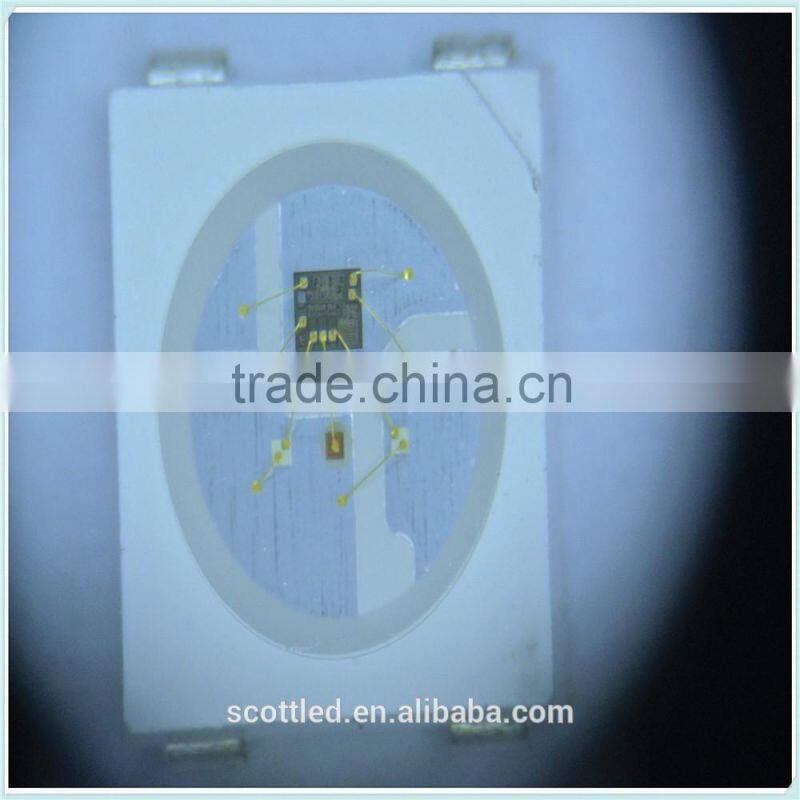

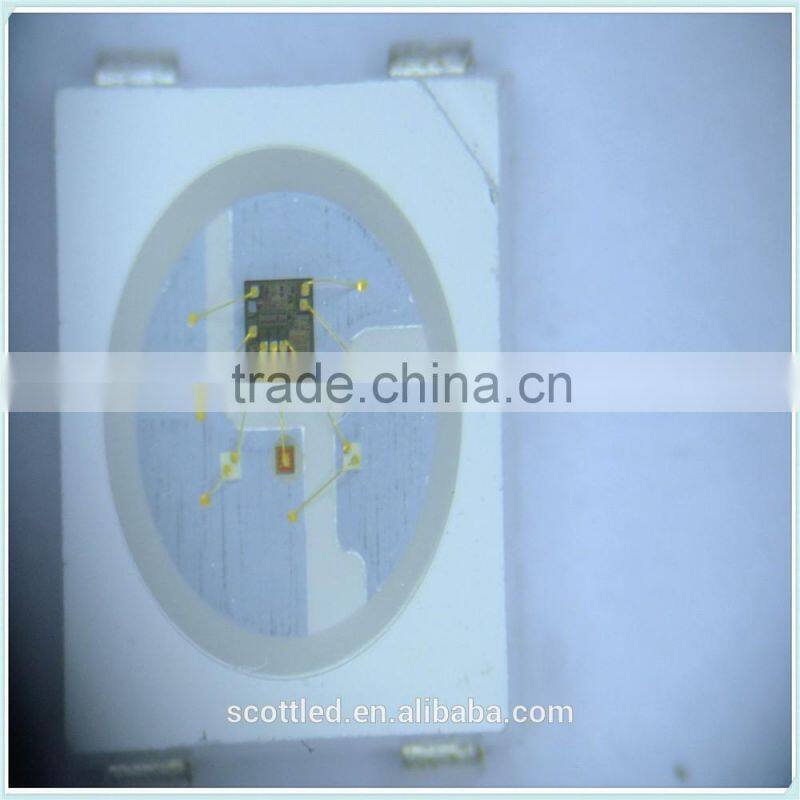

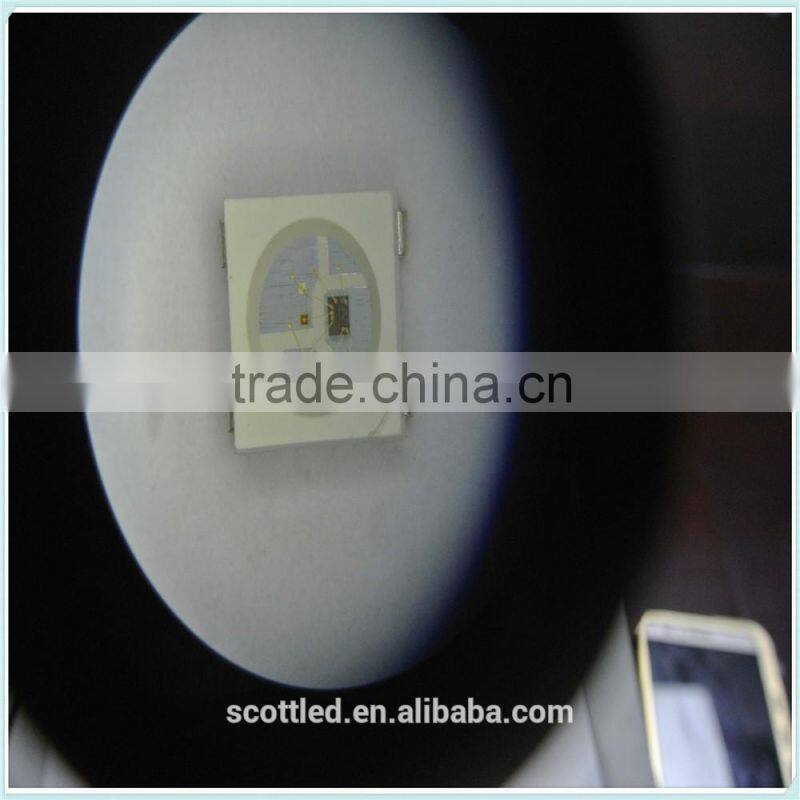

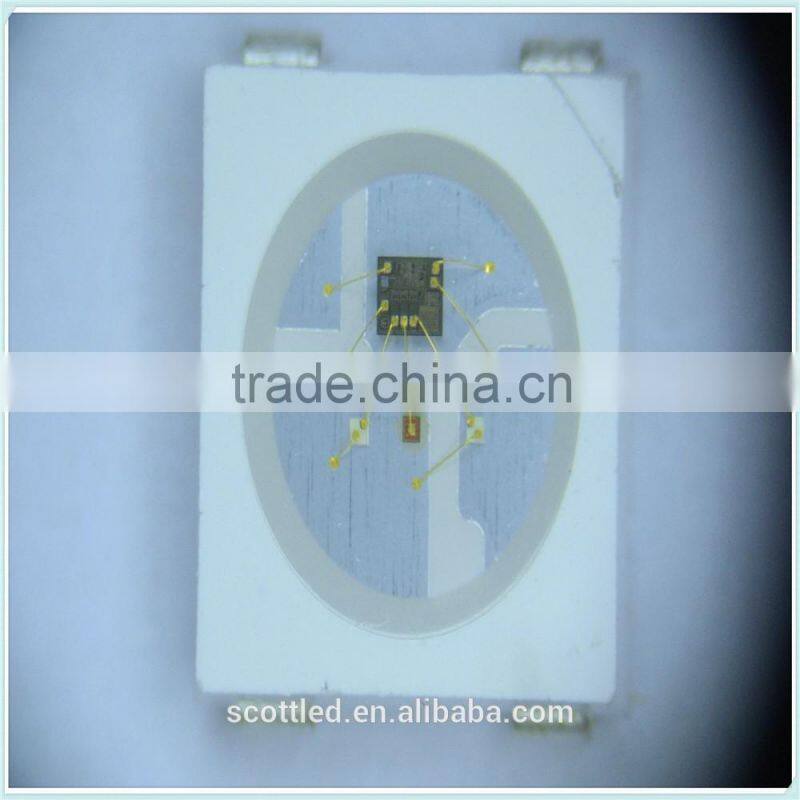

SK6812-P6 is a smart LED control circuit and light emitting circuit in one controlled LED source,
which has the shape of a 5050 LED chip. Each lighting element is a pixel, and the intensities of the
pixels are contained within the intelligent digital interface input. The output is driven by patented PWM
technology, which effectively guarantees high consistency of the color of the pixels. The control
circuit consists of a signal shaping amplification circuit, a built-in constant current circuit, and a high
precision RC oscillator.
The data protocol being used is unipolar NRZ communication mode. The 24-bit data is transmitted
from the controller to DIN of the first element, and if it is accepted it is extracted pixel to pixel. After an
internal data latch, the remaining data is passed through the internal amplification circuit and sent out
on the DO port to the remaining pixels. The pixel is reset after the end of DIN. Using automatic
shaping forwarding technology makes the number of cascaded pixels without signal transmission only
limited by signal transmission speed.
The LED has a low driving voltage (which allows for environmental protection and energy saving),
high brightness, scattering angle, good consistency, low power, and long life. The control circuit is
integrated in the LED above.
. 2. Main Application Field:
Full color LED string light, LED full color module, LED super hard and soft lights, LED guardrail tube,
LED appearance / scene lighting
LED point light, LED pixel screen, LED shaped screen, a variety of electronic products, electrical
equipment etc..
. 3. Technical Data Sheet:
Top SMD internal integrated high quality external control line serial cascade constant current IC;
control circuit and the RGB chip in SMD 5050 components, to form a complete control of pixel, color
mixing uniformity and consistency;
built-in data shaping circuit, a pixel signal is received after wave shaping and output waveform
distortion will not guarantee a line;
The built-in power on reset and reset circuit, the power does not work;
gray level adjusting circuit (256 level gray scale adjustable);
 red drive special treatment, color balance;
line data transmission;
 plastic forward strengthening technology, the transmission distance between two points over 10M;
Using a typical data transmission frequency of 800 Kbps, when the refresh rate of 30 frames per sec.

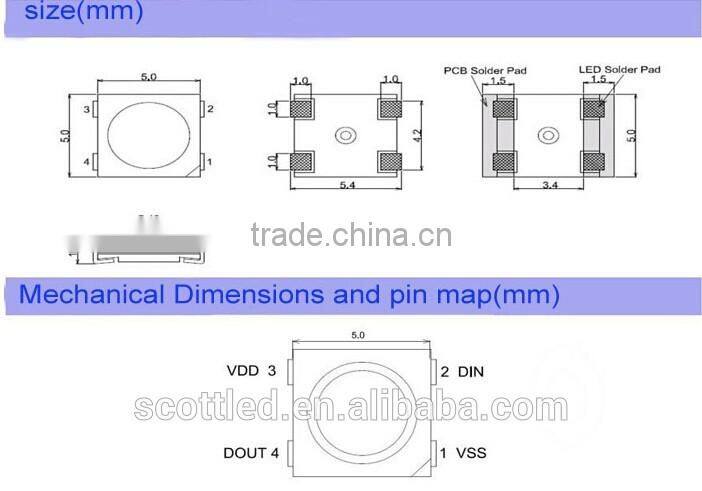

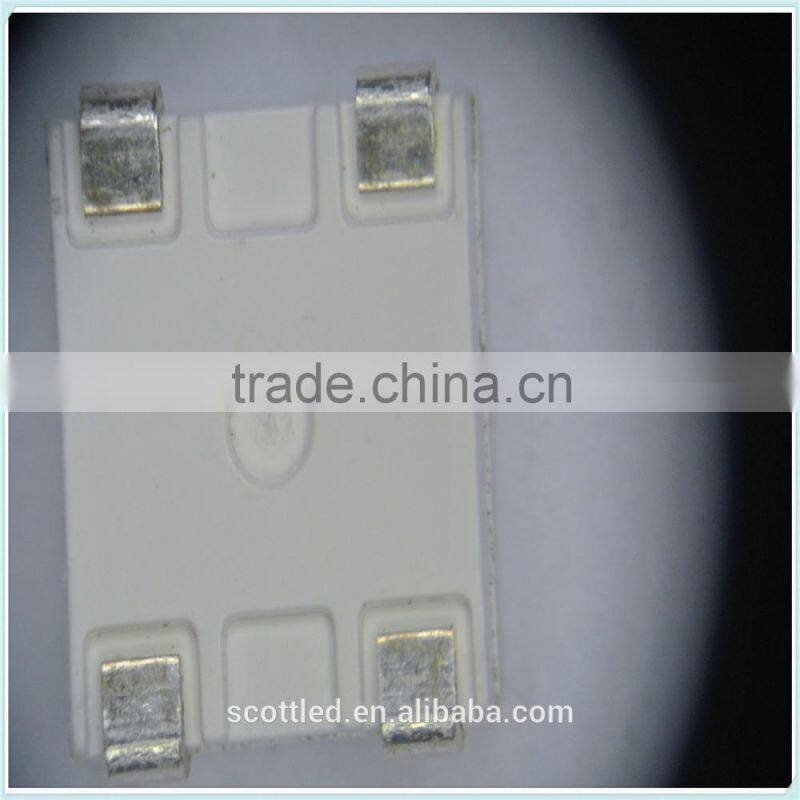

Mechanical Product Size (unit mm):
Top SMD internal integrated high quality external control line serial
cascade constant current IC;
control circuit and the RGB chip in SMD 5050 components, to form a
complete control of pixel, color mixing uniformity and consistency;
built-in data shaping circuit, a pixel signal is received after wave
shaping and output waveform distortion will not guarantee a line;
The built-in power on reset and reset circuit, the power does not work;
gray level adjusting circuit (256 level gray scale adjustable);
 red drive special treatment, color balance;
line data transmission;
 plastic forward strengthening technology, the transmission distance
between two points over 10M;
data transmission frequency up to 800Kbps, when the refresh rate of 30
frames per second, a cascade of not less than 1024;
 built-in powerpolarity protection module, powerpolarity will not damage.

 1. Features and Benefits
. Ideal for LED lighting application to avoid multi-shadows
. Higher heat conductivity for better thermal management
. Provide variable and innovative array LED layout designs and combinations
. Reduce the initial development cost and time
. High lumen-performance per dollar cost
. Lead free reflow solder compatible with RoHS compliant
