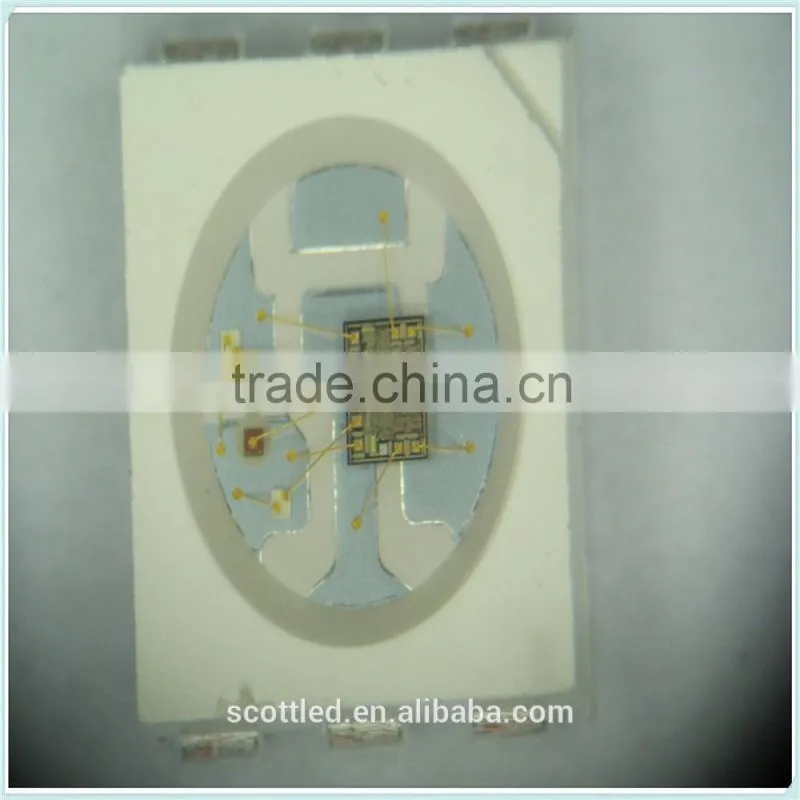

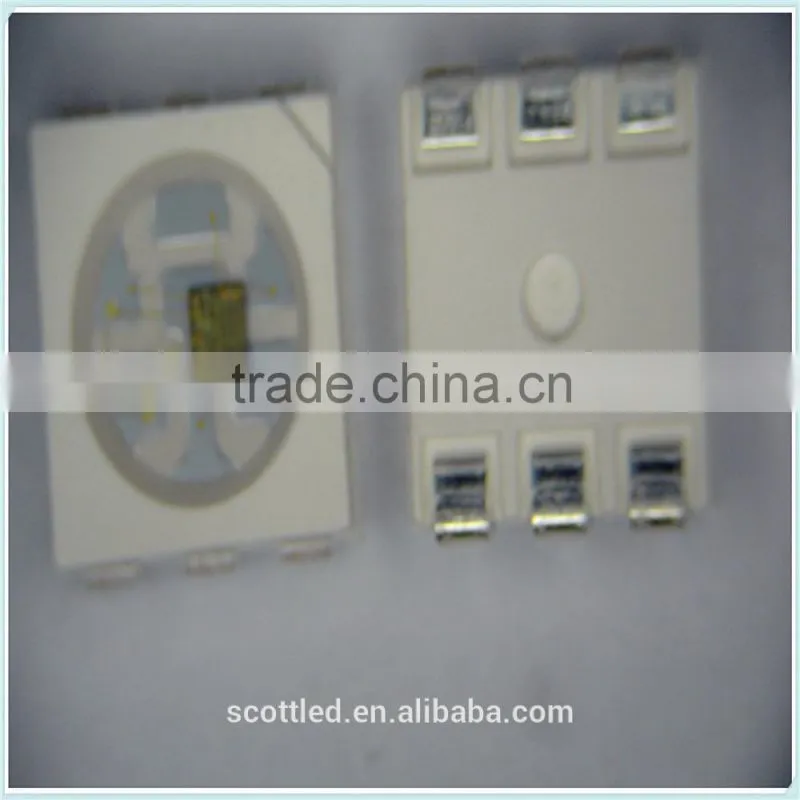

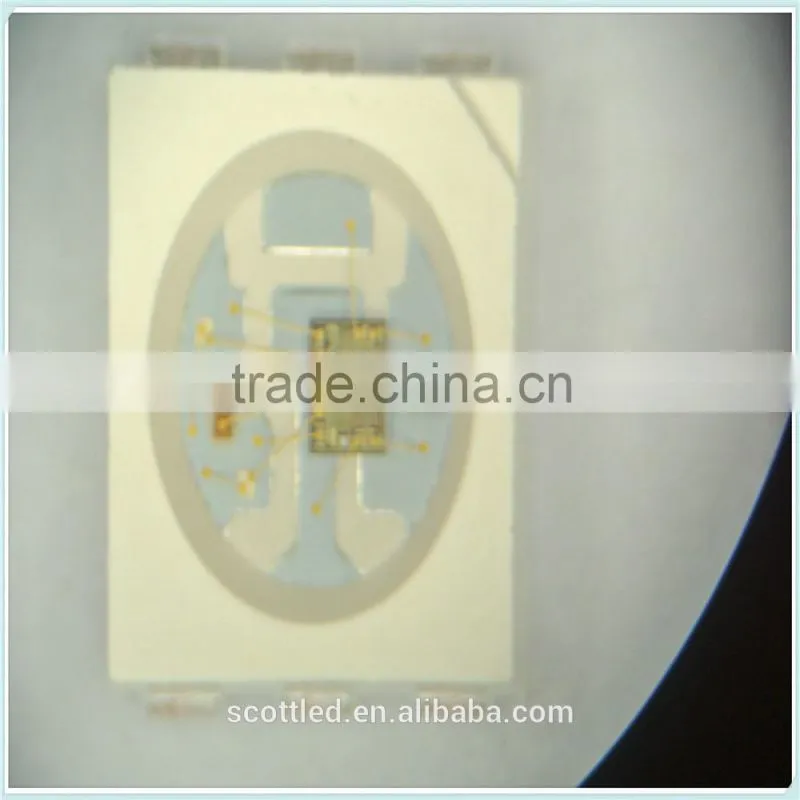

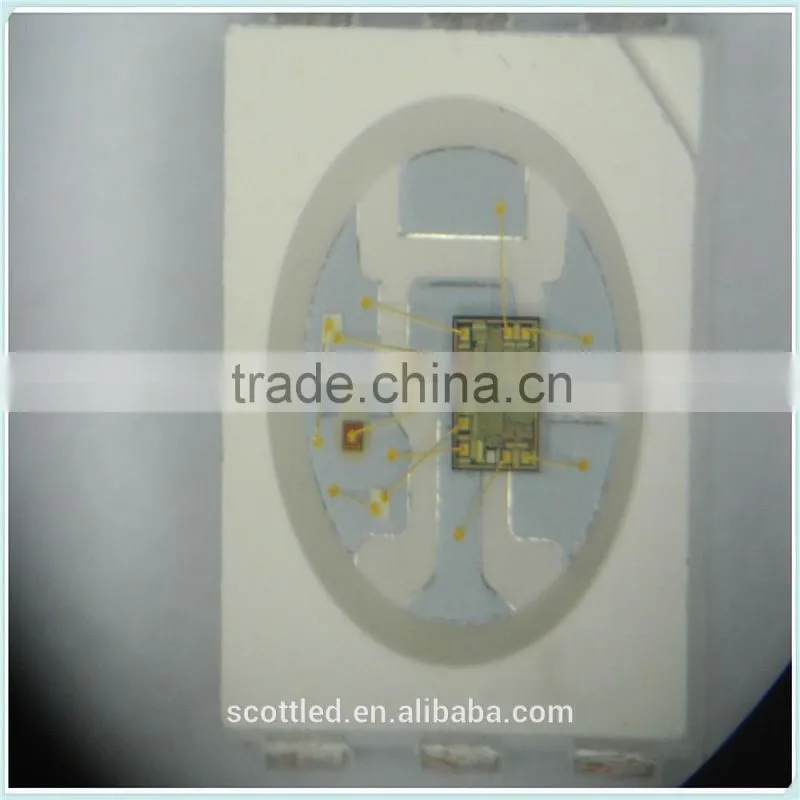

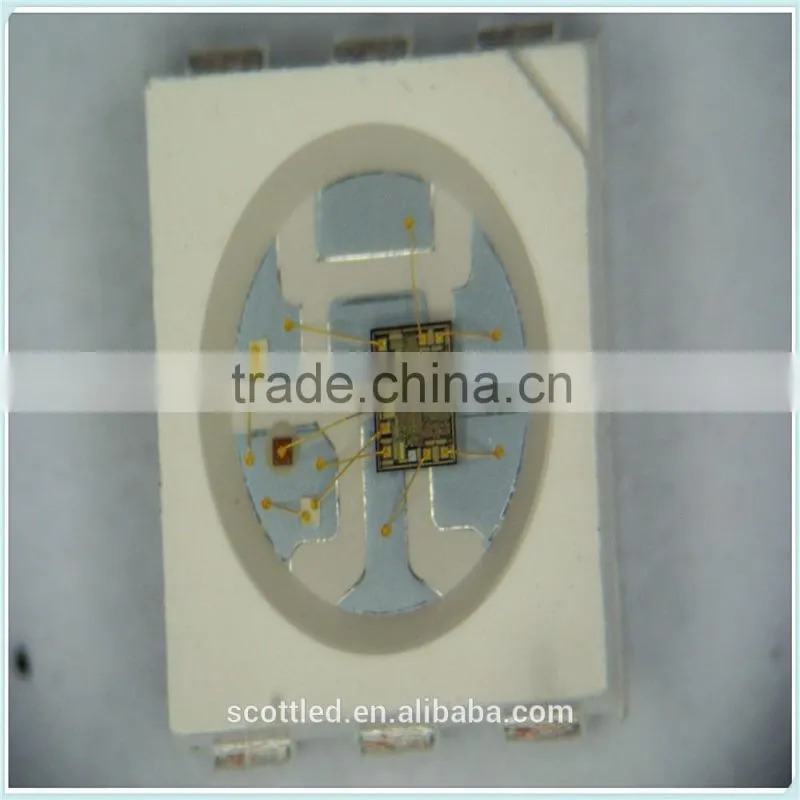

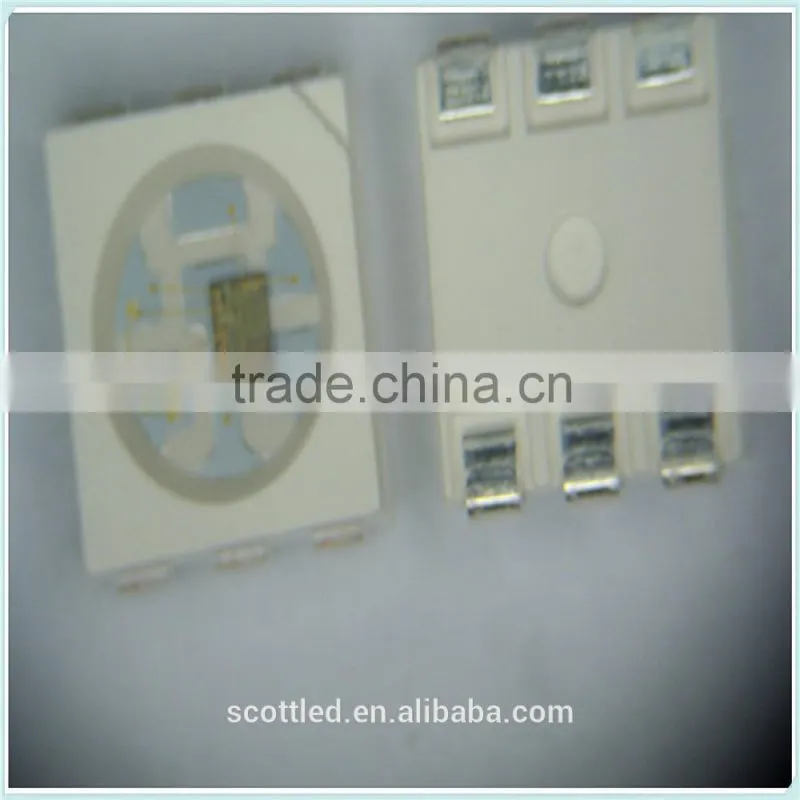

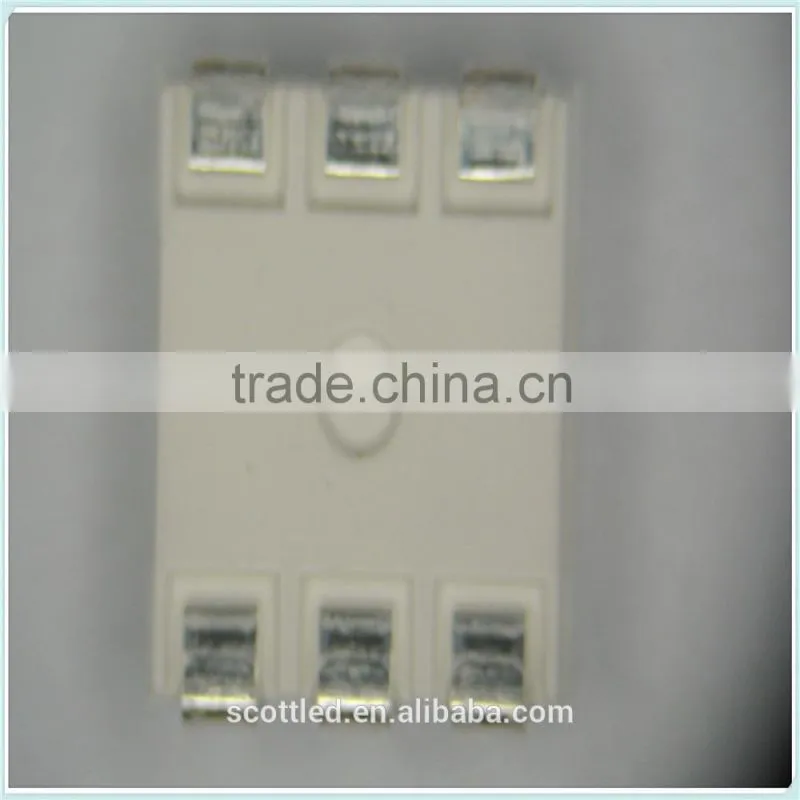

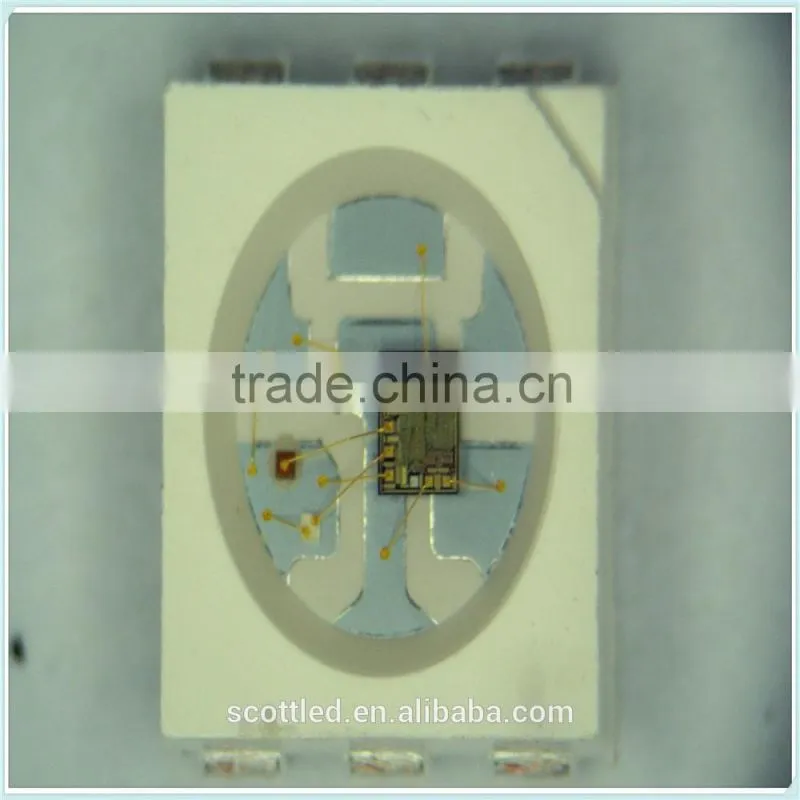

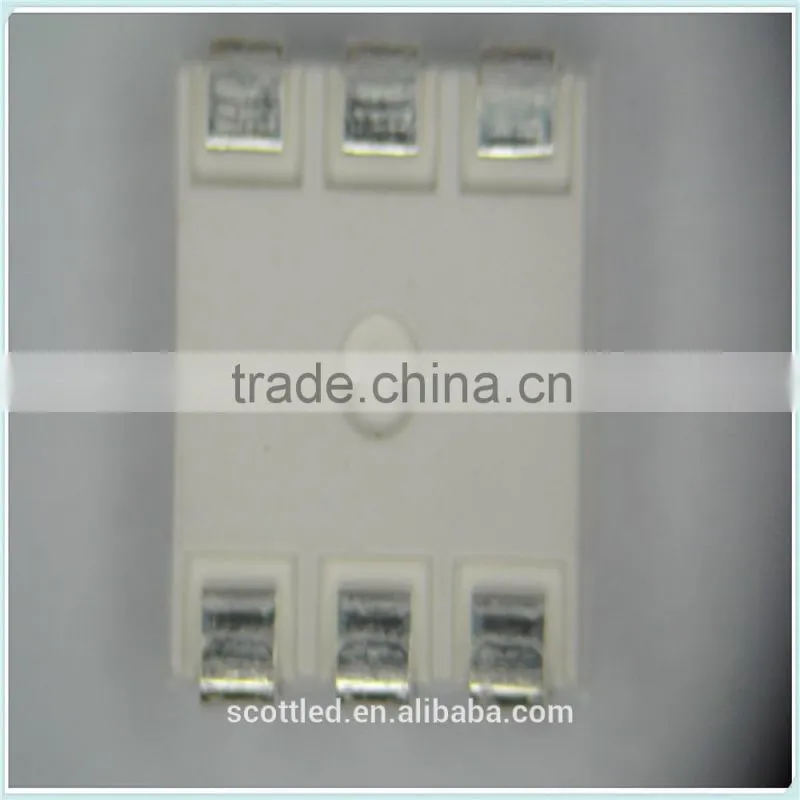

3 chips 5050 led smd build-in APA102 IC
Model: apa102

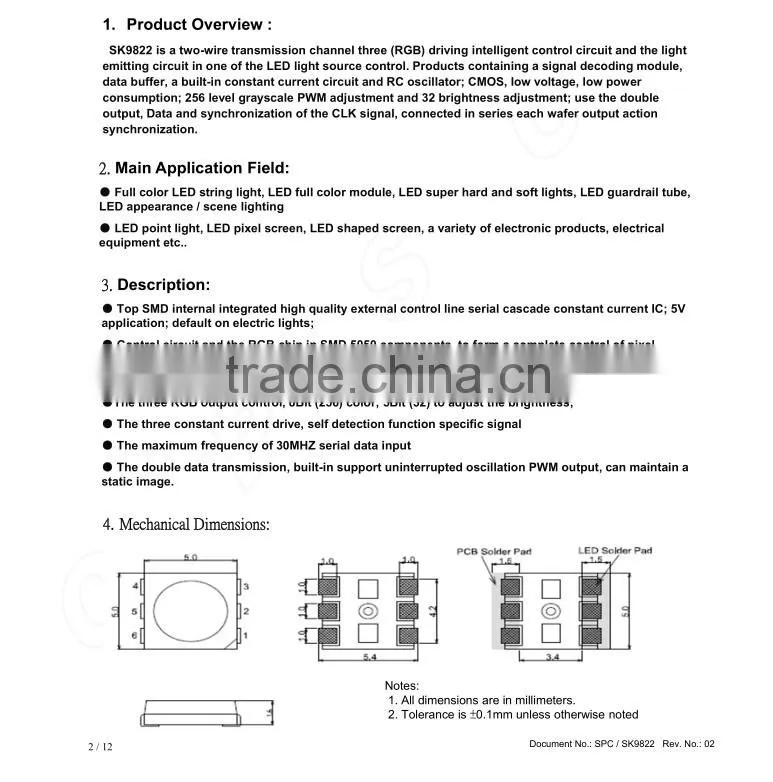

1. Product Overview :
SK9822 is a two-wire transmission channel three (RGB) driving intelligent control circuit and the light
emitting circuit in one of the LED light source control. Products containing a signal decoding module,
data buffer, a built-in constant current circuit and RC oscillator; CMOS, low voltage, low power
consumption; 256 level grayscale PWM adjustment and 32 brightness adjustment; use the double
output, Data and synchronization of the CLK signal, connected in series each wafer output action
synchronization.
. 2. Main Application Field:
Full color LED string light, LED full color module, LED super hard and soft lights, LED guardrail tube,
LED appearance / scene lighting
LED point light, LED pixel screen, LED shaped screen, a variety of electronic products, electrical
equipment etc..
. 3. Description:
Top SMD internal integrated high quality external control line serial cascade constant current IC; 5V
application; default on electric lights;
Control circuit and the RGB chip in SMD 5050 components, to form a complete control of pixel,
color mixing uniformity and consistency;
The two-wire synchronous control.
The three RGB output control, 8Bit (256) color; 5Bit (32) to adjust the brightness;
The three constant current drive, self detection function specific signal
The maximum frequency of 30MHZ serial data input
The double data transmission, built-in support uninterrupted oscillation PWM output, can maintain a
static image.
4. Mechanical Dimensions:
