Lightning protection! 45W Single output LED Constant Voltage driver with 12V
Product advantage:
1.OEM/ODM Customized product is available, please kindly contact us for more
2.Epoxy Resin/Silicone Gel encapsulated, IP67 waterproof for outdoor lighting application
3. Universal AC input/ Full range option provided.
4.Low price and high reliability
5.2-3 years warranty depend on your request
6.High efficiency up to 90% with low working temp
7.With low and stable input and output ripple 100-150mVPP
8.Fast delivery, bulk orders within two weeks, small batch orders within 3 days if regular drivers
9. All using long life electrolytic capacitors
10.All spare parts are new and checked by QC
11. 100% full load burn-in test before packing
12.Professional R&D team at your service
13. Shot circuit/over current/over voltage/overload/over heating protection
14. Aluminum housing, good for heat dissipation, Cooling by free air convection
15. Non MOQ setting, no matter small or large orders all welcome.
Product Description:
| Constant Voltage Driver Model: | LV-12045-03 | |
| AC Input | Voltage | AC170~265V |
| Current | ≤3.75A | |
| Frequency | 47~63Hz | |
| Efficiency | ≥85% | |
| Power factor | ≥0.55 | |
| DC Output | Current | 3.75A |
| Voltage | 12V | |
| Rated Power | 45W | |
| Protection | Short circuit | Hiccup mode, recover after fault condition is removed |
| Overload | 110-130% Shut down O/P voltage, repower on to recover | |
| Over Temperature | ≥85°C Shut down O/P voltage, repower when cool down | |
| Over Current/Voltage | 110-130% Shut down, repower on to recover | |
| Protection Rating | IP67 | |
| SELV | Yes | |
| Environment | Isolation Resistance | I/P-O/P:>100M Ohms / 500VDC / 25°C / 70% RH |
| Working Temperature | -30℃~+55℃ | |
| Store Temperature | -40℃~+85℃ | |
| Heat dissipation | Air Convection(Aluminum housing) | |
| Input Cable | VDE H03VV-F 3G×0.75 mm2 | |
| Output Cable | VDE H03VV-F 2×0.75 mm2 | |
| Dimension | 222×30×20mm | |
| Certificate | CE(EMC+LVD) RoHS IP67 | |

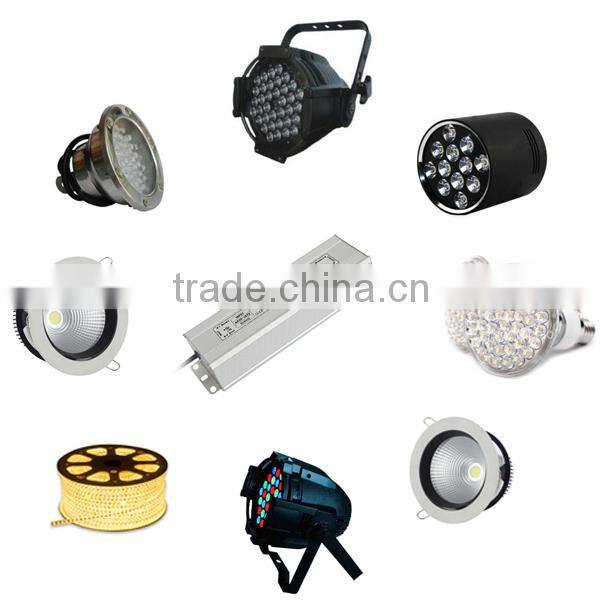

Apply to
Packaging:
Delivery
Product Certification :
Exhibition
