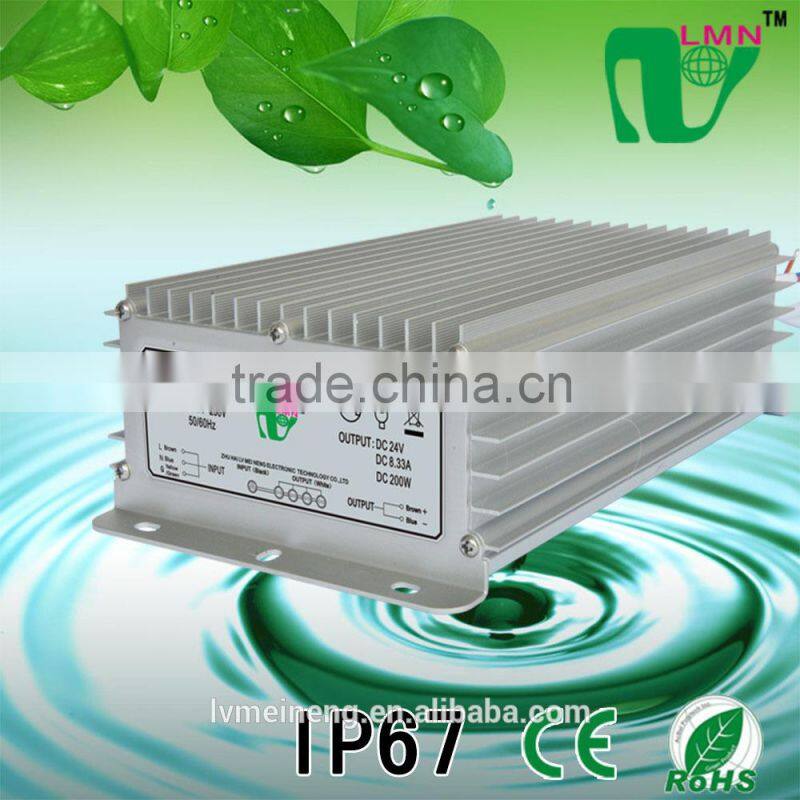

Ceiling light CE IP67 waterproof 24V 200W constant voltage led power supply
lvmeineng LED power has the following advantages:
1. with high performance, low power, steady PWM chips achieve the goal of energy saving and environmental protection.
2. high stability and low ripple and improves the LED luminous efficiency, reduces light attenuation.
3. protection class IP67.
4. the products through the EMC, LVD test and grounding to achieve lightning effect, effectively guaranteeing personal safety.
5. constant-voltage, constant-current design ensures stable high power LED, long life and efficiency.
6. products through high and low temperatures for a long time and watertightness tests can satisfy the requirements of outdoor severe environment.
7. overload, overvoltage, overcurrent, short circuit, thermal protection, ensuring power security.
8. wide power input voltage (voltage: 110V~264V) design, improving the range of products, special model adjusted according to the actual situation.
Ceiling light CE IP67 waterproof 24V 200W constant voltage led power supply
Specifications:
| Constant voltage Driver Model: | LV-24200-06 | |
| AC Input | Voltage | AC170~265V |
| Current | ≤0.2A | |
| Frequency | 47~63Hz | |
| Efficiency | ≥90% | |
| Power factor | ≥09.5 | |
| DC Output | Current | 8330mA±30mA |
| Voltage | 24V | |
| Rated Power | 200W | |
| Protection | Short circuit | Hiccup mode, recover after fault condition is removed |
| Overload | 110-130% Shut down O/P voltage, repower on to recover | |
| Over Temperature | ≥85°C Shut down O/P voltage, repower when cool down | |
| Over Current/Voltage | 110-130% Shut down, repower on to recover | |
| Protection Rating | IP67 | |
| SELV | Yes | |
| Environment | Isolation Resistance | I/P-O/P:>100M Ohms / 500VDC / 25°C / 70% RH |
| Working Temperature | -30℃~+55℃ | |
| Store Temperature | -40℃~+85℃ | |
| Heat dissipation | Air Convection(Aluminum housing) | |
| Input Cable | VDE H03VV-F 3G×0.75 mm2 | |
| Output Cable | VDE H03VV-F 2×0.75 mm2 | |
| Dimension/Net Weight | L235*W120*H56 / 2600g | |
| Certificate | CE(EMC+LVD) RoHS IP67 | |
Ceiling light CE IP67 waterproof constant voltage led power supply
Product Certification :
Why to choose us ?
1. Own brand, quality, price, innovation and development.
2. Company with a switching power supply of rich development experience, technology, strong research and development team and an excellent management team, to create a high-tech products with excellent quality.
3. Wholeheartedly provide customers with high quality, safe, stable performance products and attentive service.
4. Company switching power supplies are all pure metal casing, and PWM control IC with high performance, low power, stability, and application of advanced control technology, complete protection, all products through rigorous testing and 100% of aging, our products are sold nationwide and far Xiao United States, Europe and Southeast Asia.
5. Stability reach PFM chip with high performance, low power, energy-saving and environmental protection objectives.
6. high pressure, low ripple qualitatively improve the LED luminous efficiency, reduces light attenuation.
7. certification: CE ROHS, protection grade IP67
8. constant-voltage, constant-current design ensures stable high power LED, long life and efficiency.
9. Products through the high and low temperatures for a long time and watertightness tests can satisfy the requirements of outdoor severe environment.
10. the overload, over-voltage, over-current and temperature protect and ensure power supply security.
11. widely used in industrial automation field, LED lamp, LED display, city lighting, landscape lighting, and other industries.
