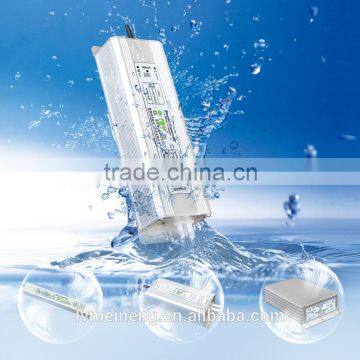

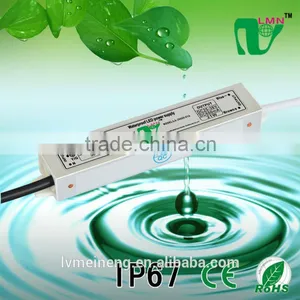

23W waterproof led constant current driver IP67
Product advantage:
1. OEM/ODM Customized product is available, please kindly contact us for more
2. Epoxy Resin/Silicone Gel potting on request, IP67-68 waterproof for outdoor lighting
3. Universal AC input/ Full range options provided.
4. Low price and high reliability
5. High efficiency up to 90% with low working temp
6. With low and stable input and output ripple 100-150mVPP
7. Long life electrolytic capacitors band as Rubycon, Beryl or customized band.
8. Well-known band new IC: Fairchild, Silergy, NSC etc.
9. All parts are new and checked by QC
10. 100% full load burn-in test before delivery.
11. Shot circuit/over current/over voltage/overload/over heating protection
12. Aluminum housing, good for heat dissipation, cooling by free air convection
Product feature:
Constant Current Driver Model: |
LA-36600-01A |
||||
AC Input |
Voltage |
90~130V |
170~265V |
85~265V |
100~277V |
Current |
≤0.2A |
||||
Frequency |
47~63Hz |
||||
Efficiency |
≥90% |
||||
Power factor |
≥0.95 |
||||
DC Output |
Voltage |
25-36V |
|||
Current |
600mA |
||||
Rated Power |
21W |
||||
Protection |
Short circuit |
Hiccup mode, recover after fault condition is removed |
|||
Overload |
110-130% Shut down O/P voltage, repower on to recover |
||||
Over Temperature |
≥85°C Shut down O/P voltage, repower when cool down |
||||
Over Current/Voltage |
110-130% Shut down, repower on to recover |
||||
Protection Rating |
IP67 |
||||
SELV |
Yes |
||||
Environment |
Isolation Resistance |
I/P-O/P:>100M Ohms / 500VDC / 25°C / 70% RH |
|||
Working Temperature |
-30℃~+55℃ |
||||
Store Temperature |
-40℃~+85℃ |
||||
Heat dissipation |
Air Convection(Aluminum housing) |
||||
Input Cable |
VDE H03VV-F 3G×0.75 mm2 |
||||
Output Cable |
VDE H03VV-F 2×0.75 mm2 |
||||
Dimension/Net Weight |
L130*W30*H20 mm/150g |
||||
Certificate |

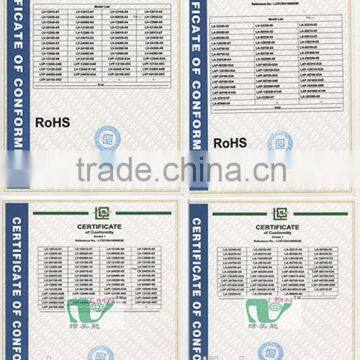

CE(EMC+LVD) RoHS IP67 |
||||
