Low Power IP67 Waterproof 12W Constant Current Led Power Supply

Name: Low Power IP67 Waterproof 12W Constant Current Led Power Supply
Brand: lvmeineng
SKU: 116287195
Availability: InStock

US$ 2.5 - 3.5 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

lvmeineng

Model Number:

LA-12012-07

Zhuhai Lv Mei Neng Electronic Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name lvmeineng

Model Number LA-12012-07

Output Power 1 - 50W

Output Type Single

Input Voltage 220V

Output Voltage 12V

Output Frequency 50/60

Output Current 100mA

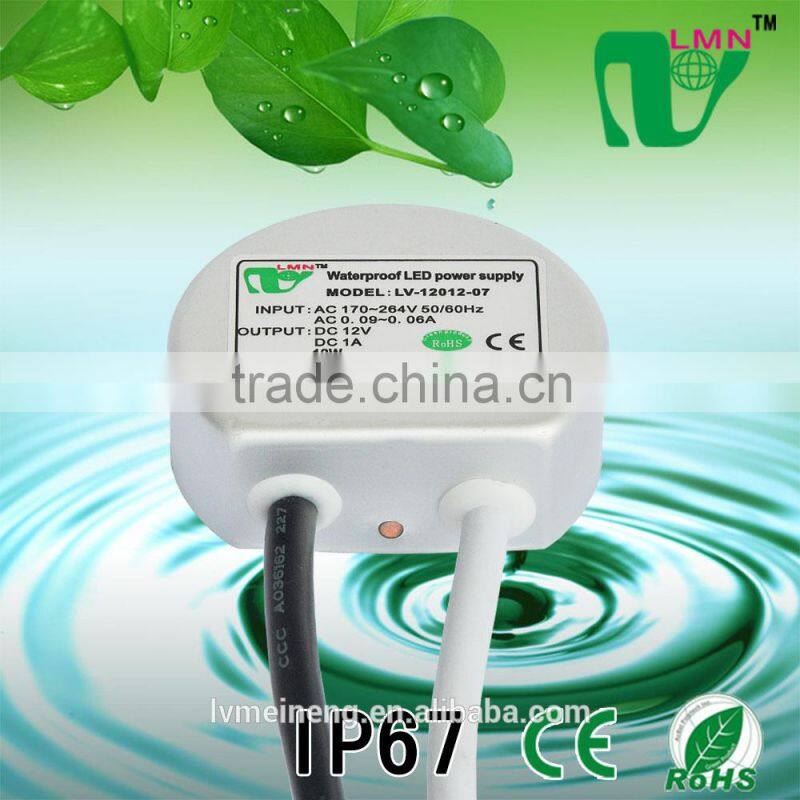

Low power IP67 waterproof 12W constant current led power supply

Constant Current Driver Model:		LA-12012-07
AC Input	Voltage	AC170~265V
	Current	≤0.2A
	Frequency	47~63Hz
	Efficiency	≥90%
	Power factor	≥09.5
DC Output	Current	100mA±30mA
	Voltage	12V
	Rated Power	12W
Protection	Short circuit	Hiccup mode, recover after fault condition is removed
	Overload	110-130% Shut down O/P voltage, repower on to recover
	Over Temperature	≥85°C Shut down O/P voltage, repower when cool down
	Over Current/Voltage	110-130% Shut down, repower on to recover
	Protection Rating	IP67
	SELV	Yes
Environment	Isolation Resistance	I/P-O/P:>100M Ohms / 500VDC / 25°C / 70% RH
	Working Temperature	-30℃~+55℃
	Store Temperature	-40℃~+85℃
	Heat dissipation	Air Convection(Aluminum housing)
Input Cable		VDE H03VV-F 3G×0.75 mm²
Output Cable		VDE H03VV-F 2×0.75 mm²
Dimension/Net Weight		*5824/ 150g**
Certificate		CE(EMC+LVD) RoHS IP67
