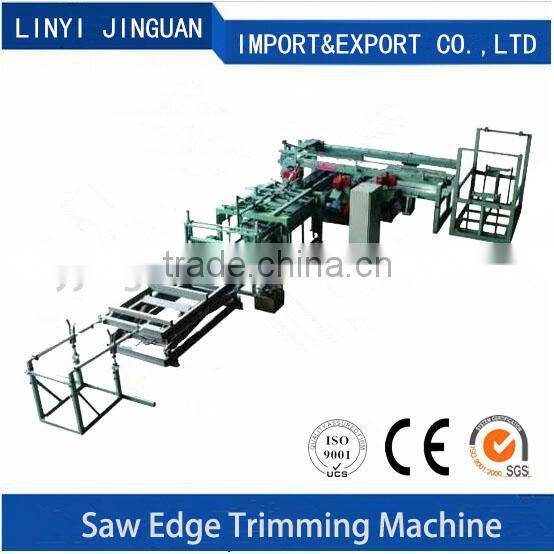

Saw Edge Trimming Machine
1. Introduction
Automatic plywood vertical and horizontal sawing machine(With automatical stacking and dust
collecting system) adopts automatic DD Saw/Edge Trimming Saw, widely used in Plywood/Particle
board production line.Only 2 workers are needed.It could save labor cost and increase production
capacity. All wood edge trimming process is controlled by PLC Control. Automatic edge cutting and
automatic stacker.
2.Specification
|
Timber processing dimension (mm)
|
4*8(Adjustable) Length2440-2460*Width1220-1240 |
Thickness (mm) |
10-60 |
Saw edge diameter (mm) |
305 |
Longitudinal saw feeding speed (m/min) |
30-60 |
Horizontal saw feeding speed (m/min) |
30-60 |
Blade speed (m/s) |
90-120 |
Total power (kw) |
37 |
3. Features
1. The main structure is strong with enoughrigidity and high stability.
2. It has pre-loader device, the prduction capacity and efficiency is high: one shift working can prod-
uce 4000-5000(18mm).
3. This saw has high precision anti-wearing guide rail, high precision cutting.
4. All working process is controlled by PLC, cutting and stacking is automatic.
5. It has a device to clear the edge waste away automatically.
6. This machine only needs 2 workers, it can save the cost of labor.
7. This saw very good dust collecting system, it will collect all dust of the machine, and dust exhaust
in strong force.

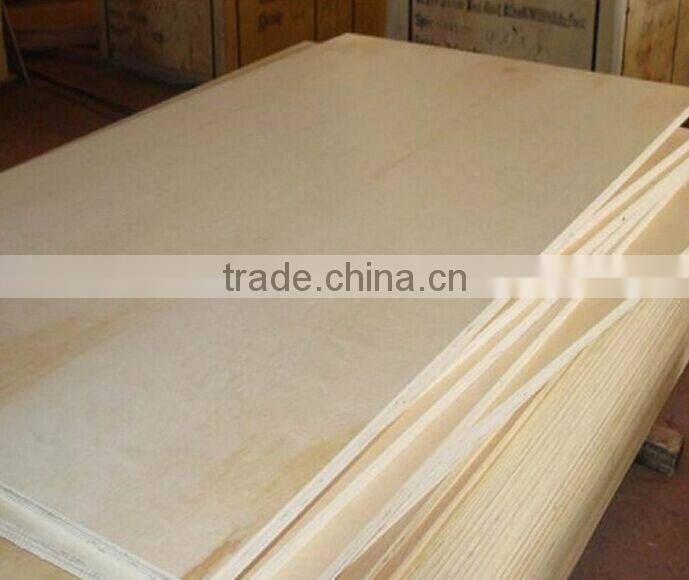

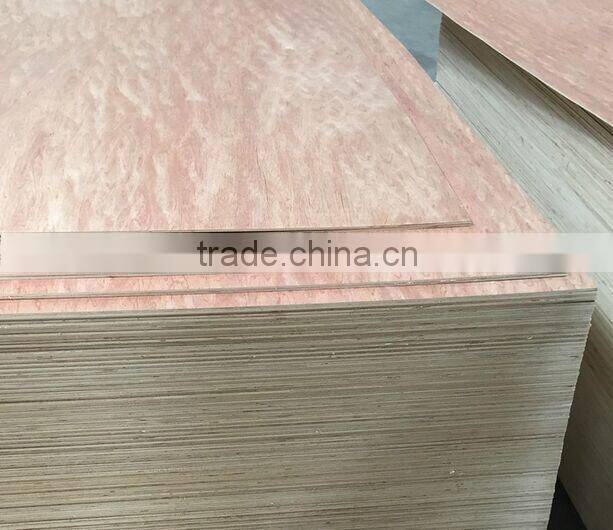

4. Finished Product
6. Our Service
♥ Our best service for you: Professional and Specialized
If you are new in this industry, A professional techinical advice will be supplied.
A specialized factory manager will be introduced for you , if necessary.
Producing flow chart, workshop layout will be the basic drawings for you.
♥ Quality Control System
After the contract effected,We will take measures to monitor the production progress:
Show you the raw material by pictures and vedios or other style you like
Inform you the new progress of the production in some certain time. You will clear imagine
how your machine made from the raw material step by step.
To make sure our salesman be your eyes and ears.
Final assembly test, factory test and working performance test. Each machine no matter
big or small must passwork before leaving the factory. We must gurantee everyone machine
from Senmao workshop must be qualified .
The vedio will be taken for the test, and welcome you to come to our factory for inspection.
♥ After Sale Service
We believe that when buy the machine, you also buy the service from us at the same time.
Free Service: One engineer will be send to your workshop following your indications. The engineer can
in charge of machine's installing , debugging, maintaining, operating and training.
Trainning Course. You can send a worker to our factory for training. The course is free, and you just n-
eed to afford the worker's board and lodging.
The Continiuos Service. We supply the continious techinical and spare parts service, even out of the w-
arranty time. the service just be there whenever and whereever you need.
7. Contact Me
