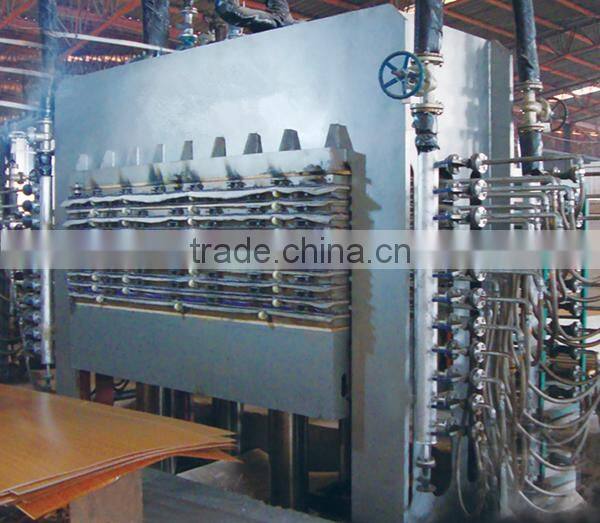

Wood Hydraulic Hot Press Machine
1.Technical parameter
|
Equipment Model Technical Parameter |
JG4*8 Hot Press Machine |
Nominal pressure |
6000 KN |
Board Direction |
Transverse |
Layer |
10 Layers |
Layer Space |
100 mm |
Hot Plate |
11 blocks |
Format Size |
1400×2700×52mm (double inlet steam pipe) |

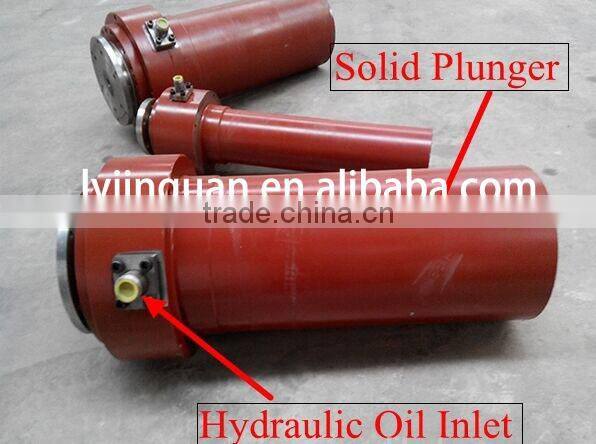

Piston Cylinder |
6 pieces |
Diameter |
Φ220mm |
Distance |
1000mm |
Pressure Resistance |
≤25 Mpa |
No-load Closure Time |
About 17 S |
Low Pressure Pump Flow |
355LX3/min |
Allowable Pressure |
≤5 Mpa |
Power |
15KWX3 |
High-pressure Pump Flow Rate |
About 89L/min |
Power |
15 KW |
Slab pressure |
20 Kgf/cm2 |
Slab Size |
1240×2460mm |
Machine Weight |
About 40000 Kg |
Overall Size |
3590×1400×4070mm |
Controlling Method |
Automatic Pump Station |
The Thickness of Upper and Lower Beams |
900,1000mm |
Steel Plate Thickness |
30,25,16mm |
Column Using Steel |
30,16mm |
The Thickness of Active Beams |
400mm |
Steel Plate Thickness |
30,20mm |
2. Features
The machine adopts gantry design, processing with high-quality steel welding. With the power
point rigorously calculated, it has no distortion and high stability; the hydraulic system with the
rapid closure station, has advanced structure, low failure rate, high flow, rapid pressure and inc-
reases production effectiveness. Its operation is simple and ensures the hot plate temperature
uniformity with reliable performance, double inlet steam pipe and automatic temperature and ti-
me control. This machine is widely used in decorative plywood, block board, melamine panels
like veneer.

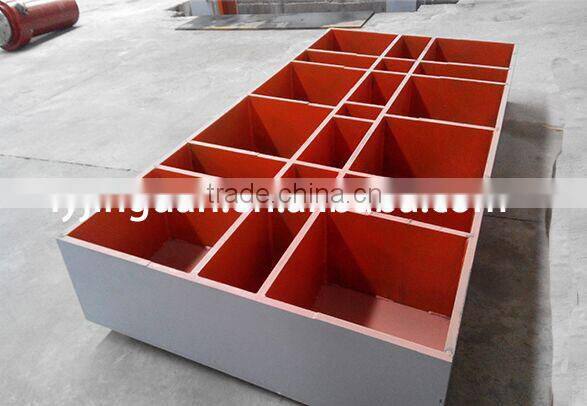

3.Deatailed Pictures
4. Our Service
♥ Pre-sale Services
Provide the free consultation of the equipment
Provide the standard device and the flow chart
According to the clients’ special requirement, offering the reasonable plan and free design
♥ Services During the Sales
Working examnation before leaving the workshop
Inspection report and vedio will be made for you
Displacement drawing will be offered in advance
♥ After Sale Service
Free Service: One engineer will be send to your workshop following your indications.
The engineer can in charge of machine's installing,debugging, maintaining, operating,etc.
Trainning Course. You can send a worker to our factory for training.
The course is free, and you just need to afford the worker's board and lodging.
The Continiuos Service. We supply the continious techinical and spare parts service,
Even out of the warranty time. the service just be there whenever and whereever you need.
