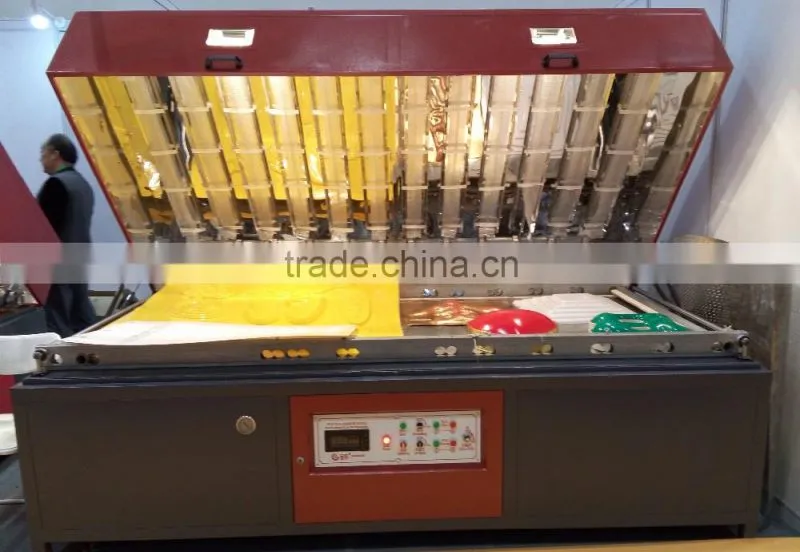

Factory supply plastic acrylic thermoforming vacuum forming cutting machine BS1313/BS1325

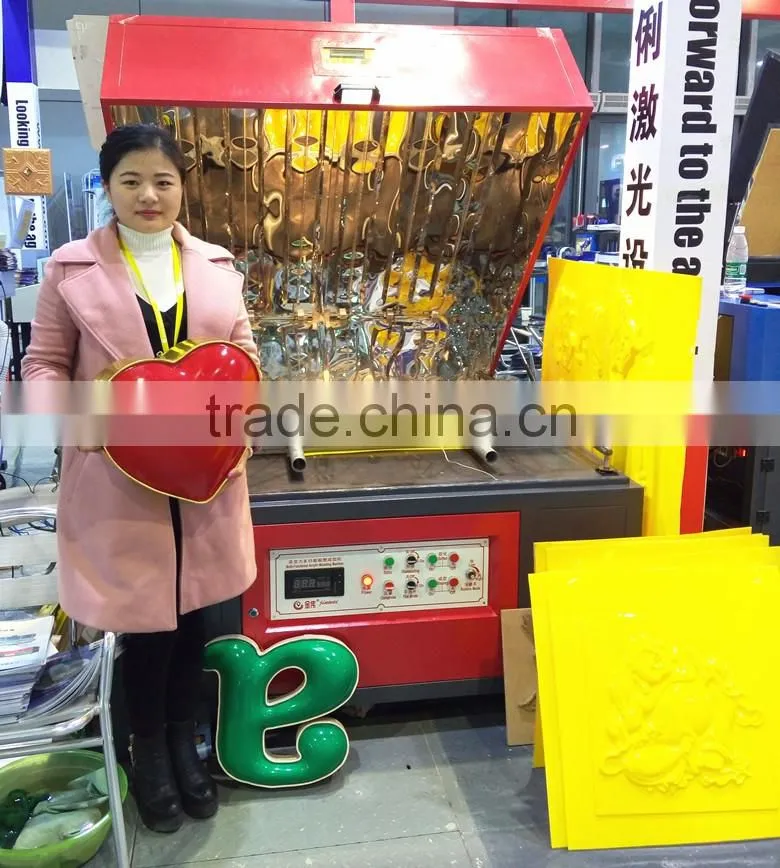

The acrylic vacuum forming machine can fast form acrylic&plastic sheet into sign of 3D shape with single mold by thermoforming !
Also called as Multi-functional Acrylic Shaping Machine, a new coner of three-dimensional raising equipment in Vacuum-Thermoform industry
1,With the functions of both melting and moulding the materials once during the entire process of signs.

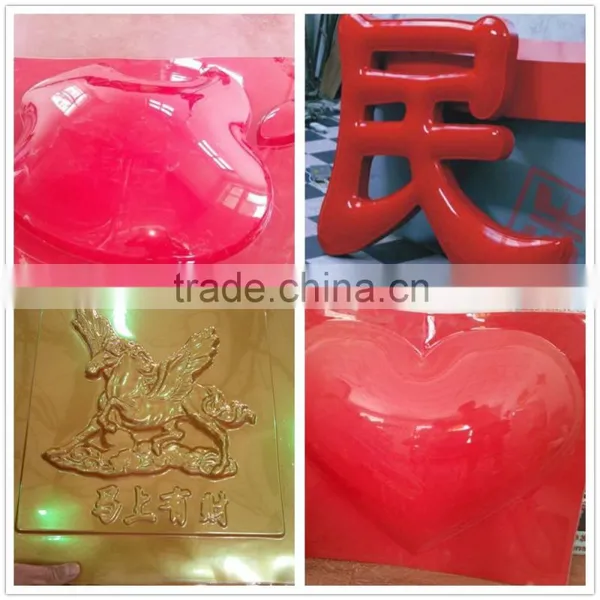

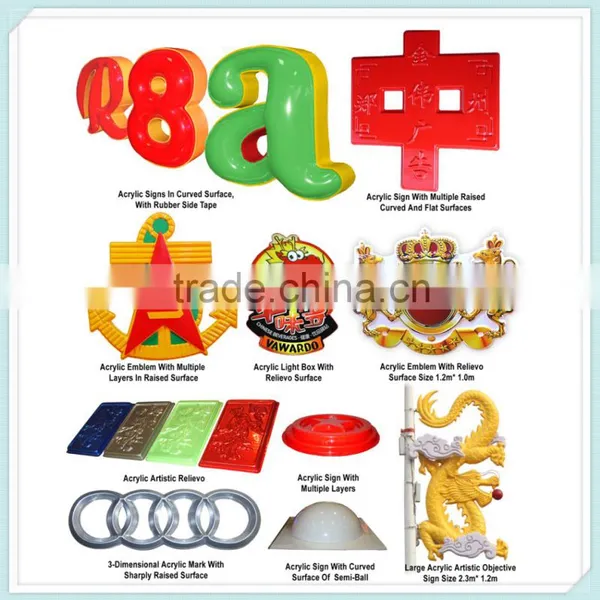

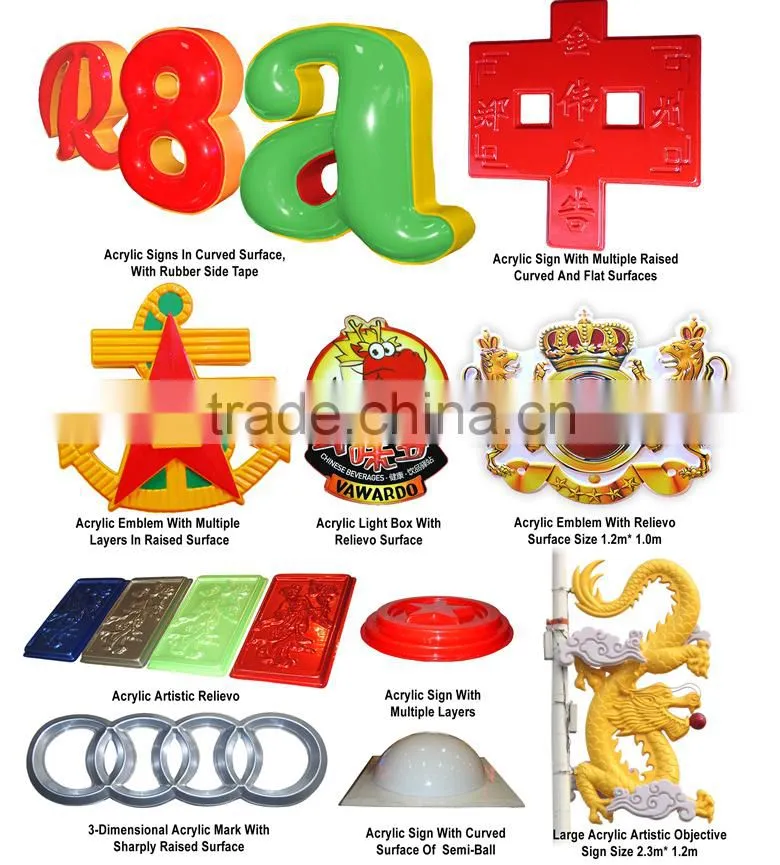

2,It has multiple moulding functions, may shape sheets of arcylic and heat meltable materials into both large and small signs with 3-dimensional surfaces,such as falling flat, raised flat, multiple layers,multi-leveled substructure, ball-like, curved, and relievo freely by just a single manual carved or machine engraved mold with hardwood or high-density plate.
3,Both the curved surface and raised flat surface are with fine sense of 3-dimensional characteristics.
4,Flashing signs formed by the machine not only have strong stereoscopic sense under daylight, but also have well raising lighting uniformity in the night.
5,It is in easy mold making: even a manual carved flat mold can used for forming curved surfaces and relievo acrylic signs and some raised flat surface, if the engraving machine is not available for some users.

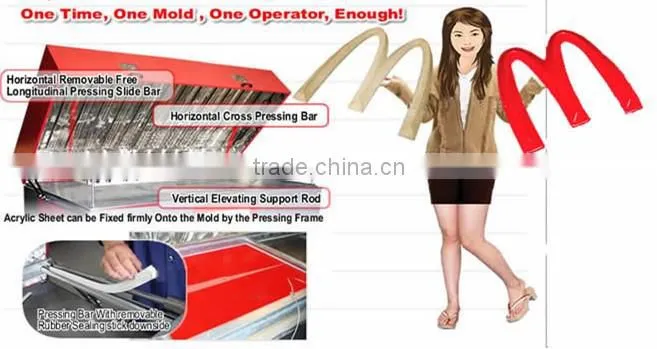

6,Adopt convenient free Pressing Frame for easy fixing acrylic sheet with the mold onto the working platform.
7,The uncomplicated design of modular structure makes it in convenient maintenance and mending after sale.
| Model | Bonsun-1313 | Bonsun-1325 |
| Rated Power | 220-380V/50HZ | 380V/50HZ |
| Input voltage/Fquency | 9000 Watt | 18000 Watt |
| Dimension | 1.4m*1.04m*1.4m | 1.4m*2.6m*1.1m |
| Available Shaping Area | 130cm*130cm | 130cm*240cm |
| Forming Time | 8-10Min. | 8-10Min. |
| Energy Comsumption | Avg.0.9Kwh/Turn | 2.0Kwh/Turn |
| Packing Measurement | 1.6m*1.6m*1.3m | 1.6m*2.8m*1.3m |
| Net/Gross Weight | 240Kg/330Kg | 450Kg/560Kg |

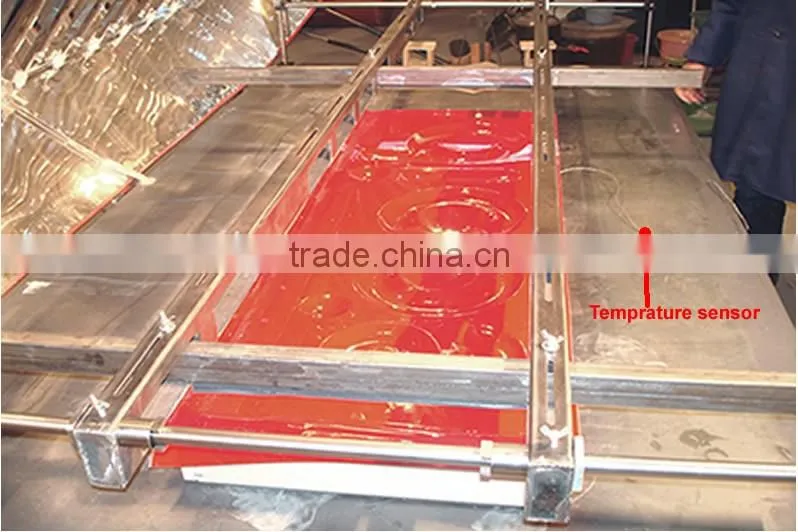

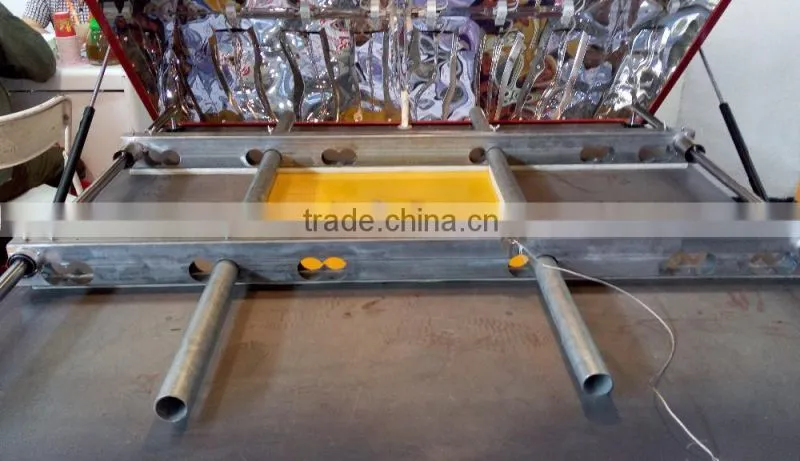

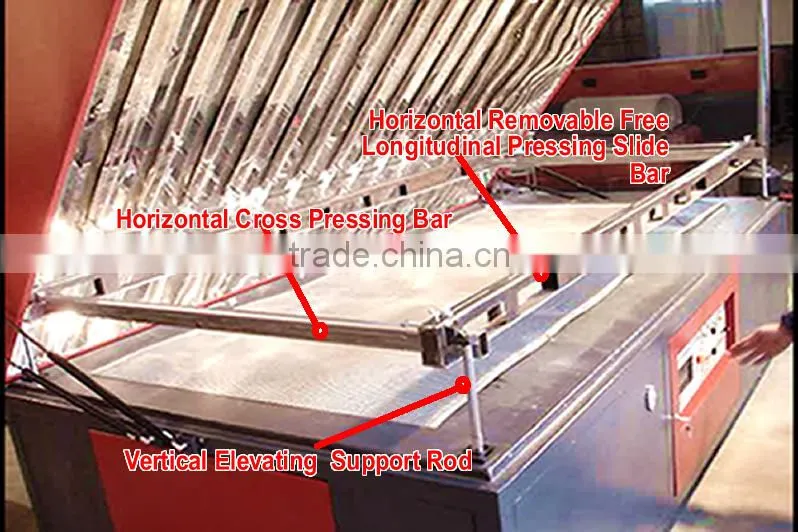

Adopt convenient free Pressing Frame for easy fixing acrylic sheet with the mold onto the working platform.

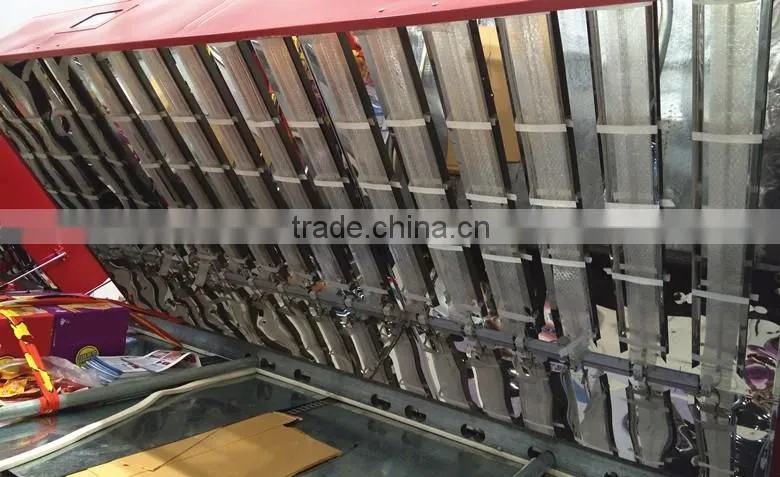

Heating tubes
By the vacuum forming machine,the acrylic sheets can be processed from softening by heat to moulding by only one time.And the acrylic sheets can be shaped into varied kinds of 3-D surface just using single mold,flashing signs by the machine not only srong stereoscopic sense under daylight,but also have well raising lighting uniformity in the night

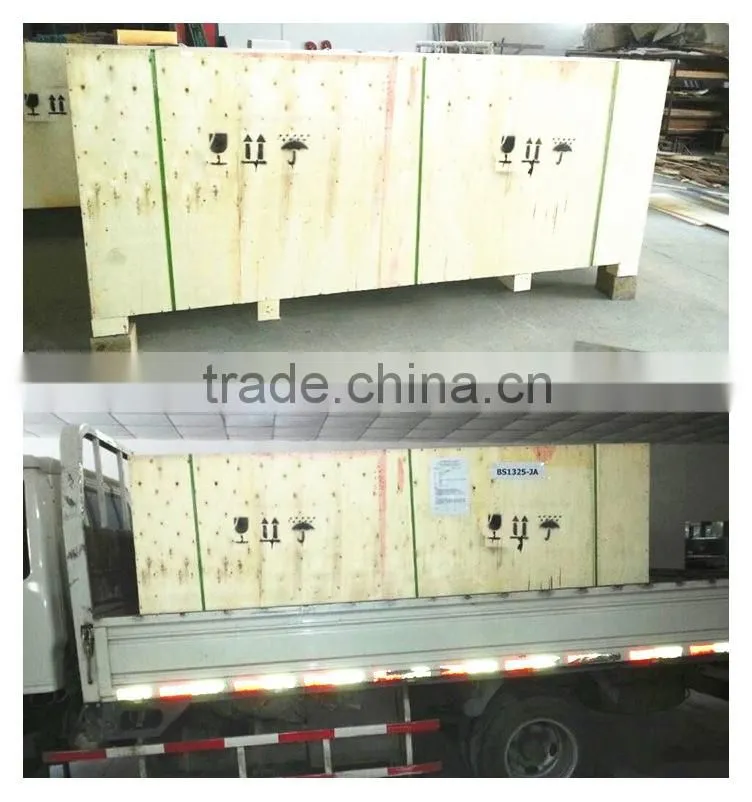

Packing size:
BS1313:1.58x1.52x1.19m 300kg/350kg
BS1325:2.78x1.52x1.19m 500kg/600kg
