Plywood veneer joint machine core veneer jointing machine plywood veneer composer
USD $30,000 - $45,000
/ Set
1 Set(Min.Order)
- 20 Set / Sets per Month
- Qingdao port or Lianyungang port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Core Veneer Composer Machine/plywood core veneer composer jointing machine/Core veneer composer
-
Samll size veneer core veneer composer veneer jointter machine
-
Chinese 8fts veneer composer machine
-
Automatic veneer composer machine
-
Veneer splicer/ Plywood core veneer jointer machine/ Wood plate plying
-
Plywood Veneer Peeling Machine / Plywood Veneer Rotary Peeling Lathe Machine
Product Details
| Condition | New | Type | Finger Joint Machine | |
| Place of Origin | Shandong, China | Brand Name | JINGUAN-B052 | |
| Model Number | ZPSF3-3 | Voltage | 380v 50Hz | |
| Power(W) | 22.5kw | Dimension(L*W*H) | 3800*2300*2200mm | |
| Weight | 5000KG | Certification | ISO9001-2000 | |
| Warranty | 3 Years | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Plywood veneer joint machine core veneer jointing machine plywood veneer composer
| Veneer joint machine parameter |
| Name | Veneer joint machine |
| Model | ZPSF3-3 |
| Working veneer width | 800-1270 mm (3-4ft) |
| Cutting veneer length | 1220-2560 mm (4ft, 5ft, 6ft, 7ft, 8ft) |
| Working veneer thickness | 1.2-3.6 mm |
| Length of knife | 1400 mm |
| Feeding speed | 0-40m/min |
| Thickness detecting | 20 points |
| Over thickness detecting | 3 points |
| Electric power requirement | 380V-50Hz 3phase |
| Cutting power | 4.5kw X 1pc |
| Transfer power | 3kw X 2pcs |
| After the knife power | 3kw X 1pc |
| Raise power | 3kw X 1pc |
| Transfer power | 1.5kw X 3pcs |
| Push the veneer power | 1.5kw X 1pc |
| Heater power | 7.5kw |
| Glue Applicator power | 0.2kw |
| Cool Fan power | 0.75kw X 3pcs |
| Refrigeration system | 1.5Hp |
| Air compressor power | 3.7kw (6kg/cm) |
| Area occupied (W x L) | 2300X13000mm |
| Main machine | 3800X2300X2200mm |
| Push veneer system | 4000X1900X2300mm |
| Output | 300-350pcs/hour (4x8ft) |
| Weight | 5000kgs |
| Shipping measurement | 25cbm |

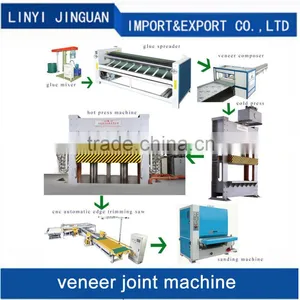

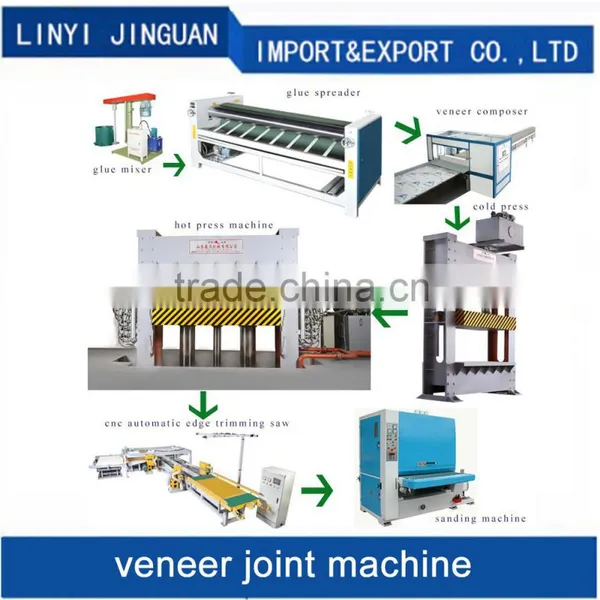

| Veneer joint machine show |

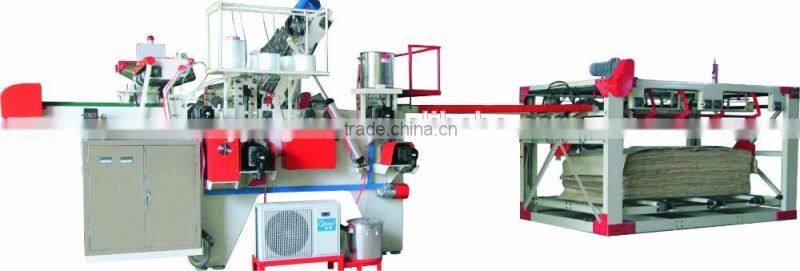

Veneer joint machine :

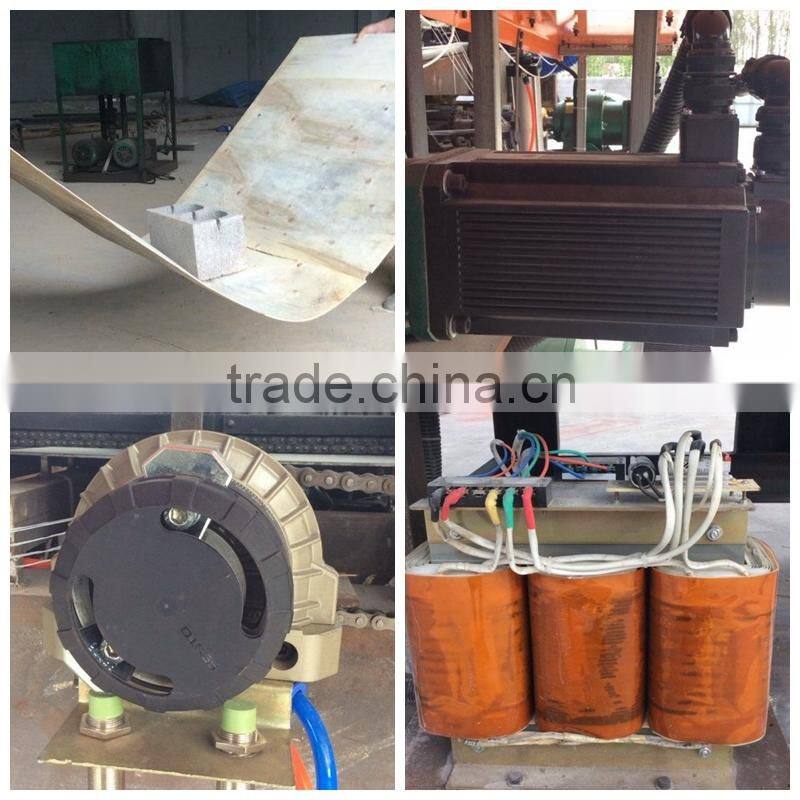

Veneer joint machine details :
Veneer joint machine :
| Veneer joint machine Features Advantages |
Features Advantages
1. PLC computer control, one worker operation, automatic process, labor cost saving
2. High precision detecting, cutting size in minimum.
3. Servo control makes it precise location and effectively control the overlap seam.

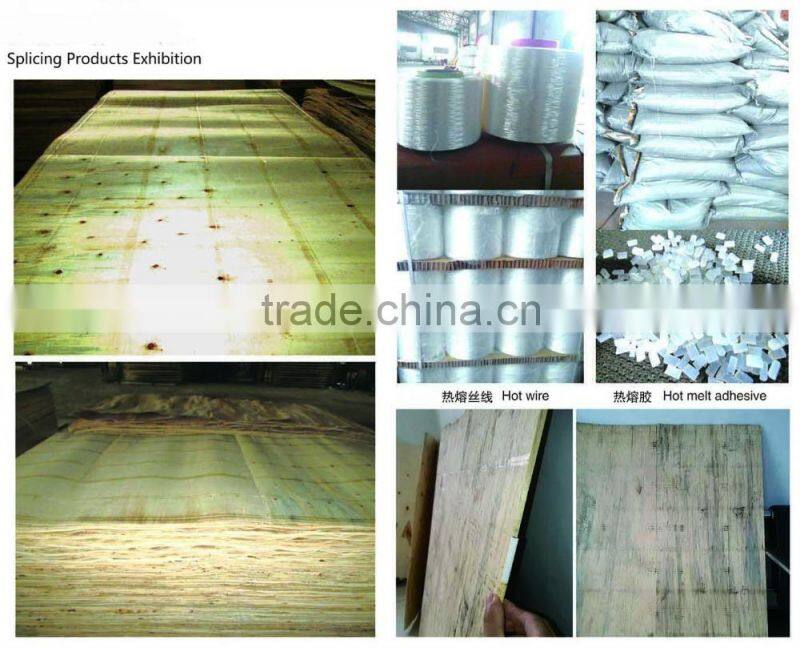

4. Use dedicated high-strength heat melts glue thread to stop the veneer breaking.
5. We use international famous brand parts such as Germany Festo, Taiwan Delta, Germany Siemens, Japan Mitsubishi, Taiwan TECO, Germany NSK,etc.
6. Saving 70% worker cost of veneer repairing
7. Saving 80% worker cost of veneer forming
8. Saving 50% worker cost of puttying
9. Jointing speed: 60m/min
10. Jointing Thickness: 0.9mm-10mm
