The BS50 pvc banner welder weld Pieces Made Of PVC and Hot-meltable Materials Without Glue.
Brief:
Designed for welding pieces made of heat-melting material, such as PVC ,PE canvas, waterproof fabric, outdoor poster banners, textilene, plastic pieces, sailcloth...etc. -Digital display. Adjustable temperature, moving speed, and hot-air blowing rate
-Auto Stand-by if no operation in 15 min.
-Small and portable, easy to operate
Also used to laminate and hem the margin in edge-works of the pieces.
Features:
1,Based on heat-melting theory. To weld flat pieces made of heat-meltable materials without glue.

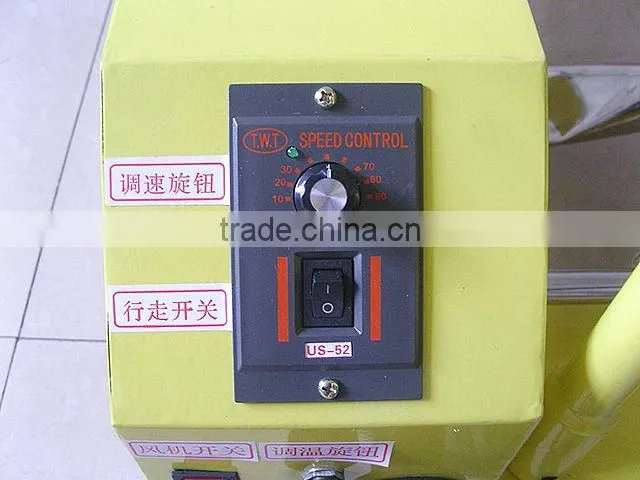

2,Digital display for welding temperature and speed.
3,Adjustable digital hot-air blowing rate.
4,Automatic start, automaticly move.
5,Automatic Stand-by if no operation in 15 min.
6,Easy and convenient operation.
7,Small,light and portable.
8,With modular elements, for convenient maintenance and mending.
9,Adopt Large Fanner in model BS50, for seaming thicker meterials.
Parameters:
Model:BS50
Speed:1-15m/min,Continuously adjustable
Power:230v/3000w/50HZ
Dimension:87x47x36cm
Welding temperature:40-650℃±1℃Continuously adjustable
Welding width: Max. 50mm
Weight:50kg
Using Steps:
1, First keep the screen tension leveling, docking easy to take joint (2-5cm) fixed with tape or glue on flat ground.
2 Turn on the power to set the temperature, speed (based on the thickness of fabric and personal proficiency to be) to preheat the machine.
3, The temperature reaches the set temperature, the machine run-oriented wheel and the front edge (2:00 line) vertical take place in the seam. Hold the heat gun right handle switch, fever, mouth parallel to the ground quickly embedded into the mosaic crevices, the machine will automatically begin stitching.
4,The process of splicing operation according to the machine, gently swing the handle to ensure that the machine is running straight.
5,If the picture appears charred, simply speeding up the pace appropriate to prevent damage to the screen.
6,Spliced very rapidly after the hot air out of the mouth parallel to the requirements placed on the location button to close the heating equipment, automatic shutdown, no need to shut off the main power supply.
7-day trial against rain leakage, workplaces need to dry flat. Be specifically responsible for equipment used to prohibit unauthorized demolition at your peril.

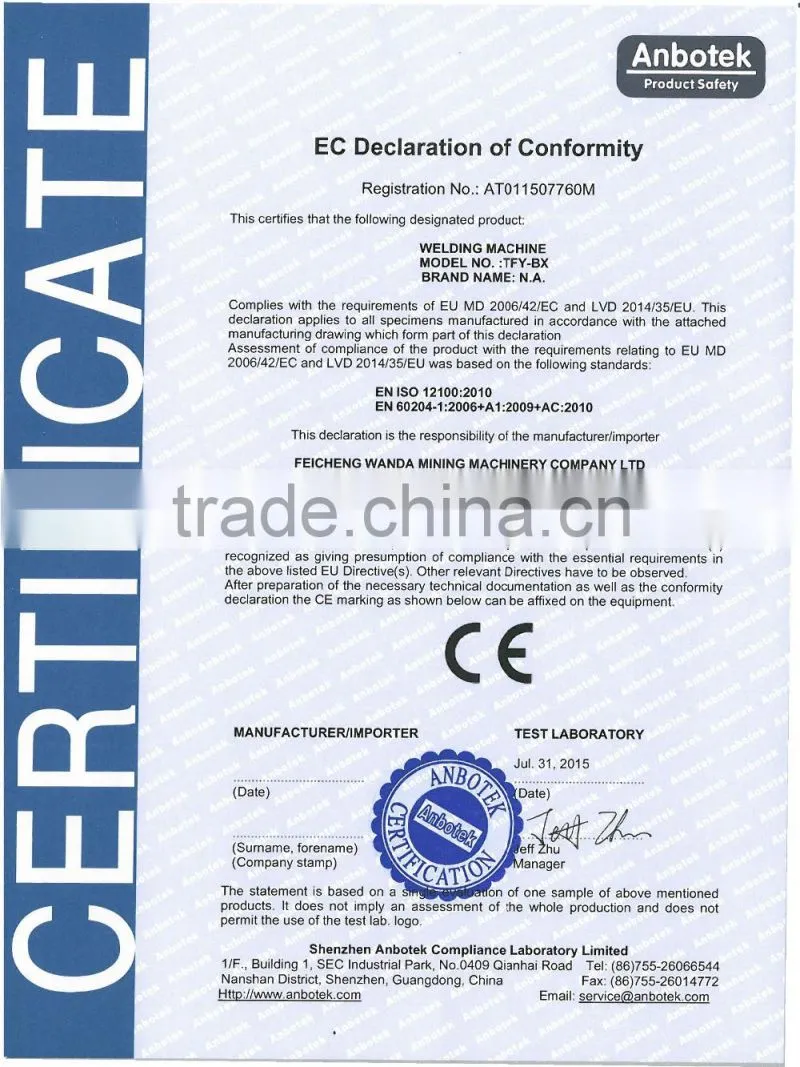

CE CERTIFICATE:
