Specifications
high standard carbon brass coated wire:1.high quality;
2.factory price;
3.export standard packing;
4.brass coated.
high standard carbon brass coated wire&hydraulic hose wire
Description:
The high-pressure hose wire is a kind of steel wire products of high strength, whose surface is plated with a uniform layer of brass alloy.
Raw materials:
The high-quality wire rod especially for steel cords produced by Japan KOBE, NIPPON and Germany SAARSTAHL is chosen.
Advantages:
Hengxing is specialized in developing and producing high-pressure hose wires, which have various specifications and long service life, and resist high temperature, high pressure and high impact. It has an excellent performance is all aspects.
Nominal diameter |
Tolerance |
Tensile strength |
Torsions (L=100xø) |
Reverse bends (r=2.5mm) |
mm |
mm |
(Mpa,N/mm2) |
Min |
Min |
|
0.2
|
±0.010 |
2150~2450 |
70 |
125 |
2450~2750 |
70 |
|||
2750~3050 |
65 |
|||
3050~3350 |
60 |
|||
|
0.25
|
±0.010
|
2150~2450 |
70 |
125 |
2450~2750 |
70 |
125 |
||
2750~3050 |
65 |
105 |
||
3050~3350 |
60 |
75 |
||
|
0.3
|
±0.010 |
2150~2450 |
65 |
105 |
2450~2750 |
60 |
95 |
||
2750~3050 |
60 |
85 |
||
3050~3350 |
50 |
60 |
||
|
0.35
|
±0.015 |
2150~2450 |
65 |
60 |
2450~2750 |
60 |
60 |
||
2750~3050 |
60 |
55 |
||
3050~3350 |
50 |
50 |
||
|
0.4
|
±0.015 |
2150~2750 |
60 |
55 |
2450~2750 |
60 |
55 |
||
2750~3050 |
60 |
50 |
||
3050~3350 |
50 |
45 |
||
|
0.42
|
±0.015 |
2150 ~2450 |
60 |
50 |
2450 ~ 2750 |
60 |
50 |
||
2750 ~3050 |
50 |
45 |
||
|
0.46
|
±0.015 |
2150~2450 |
60 |
45 |
2450~2750 |
60 |
45 |
||
2750~3050 |
50 |
40 |
||
|
0.5
|
±0.015 |
2150~2450 |
60 |
40 |
2450~2750 |
60 |
35 |
||
2750~3050 |
50 |
30 |

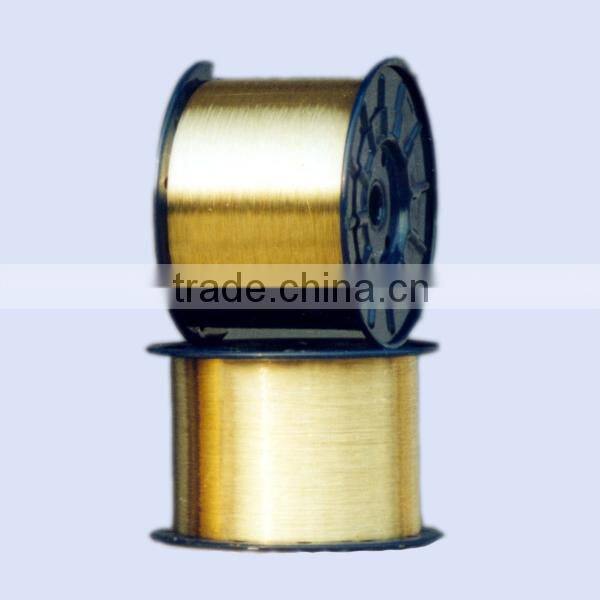

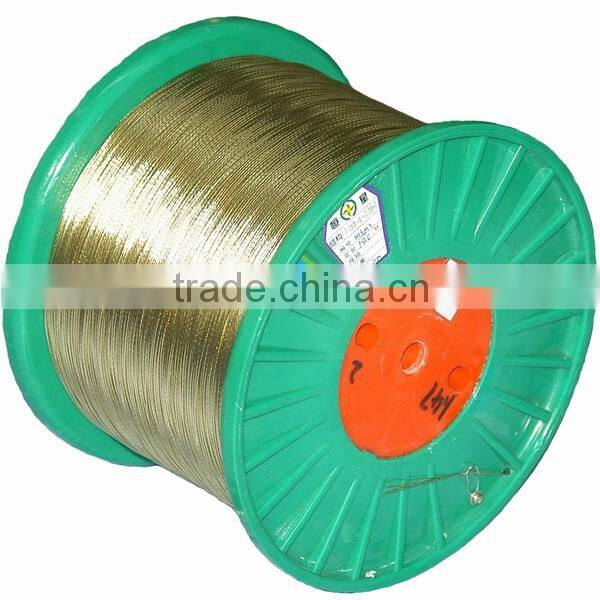

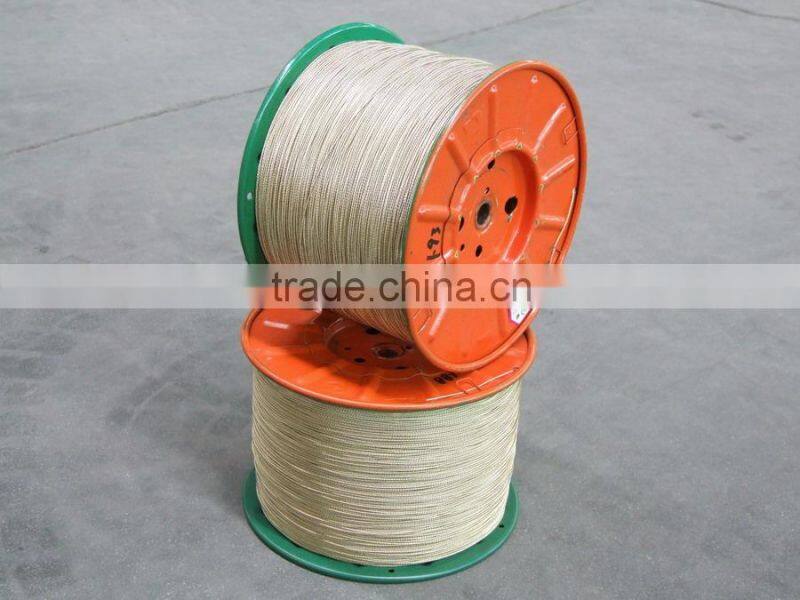

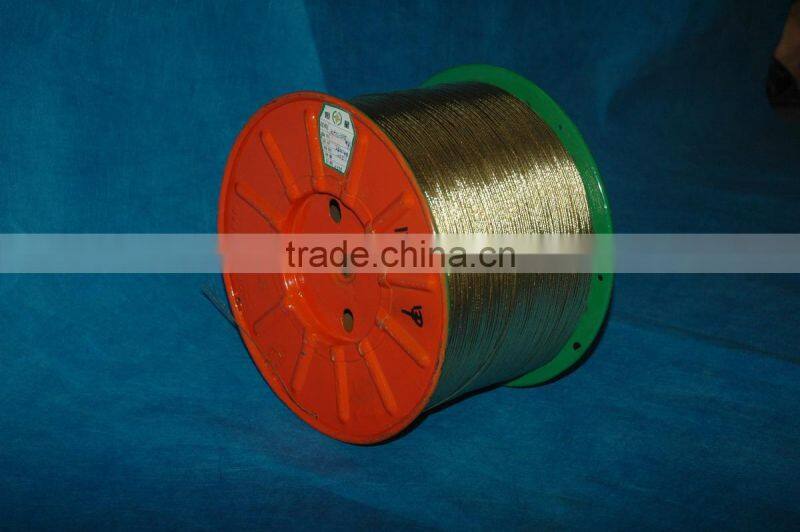

Finished products:
Factory showing:

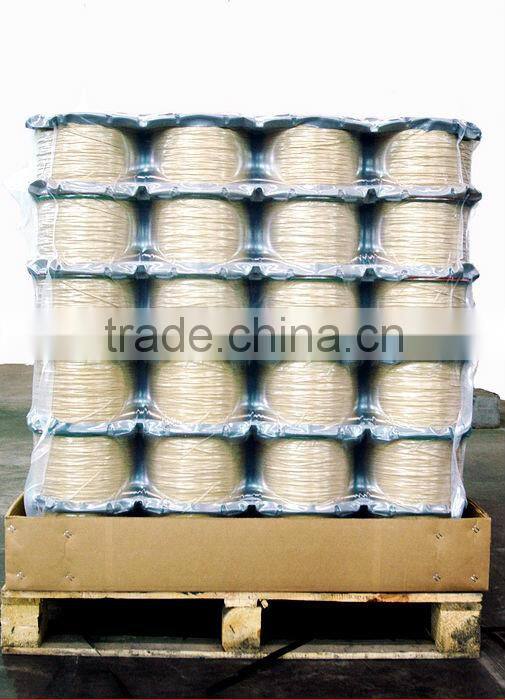

Packing:
General informations:
