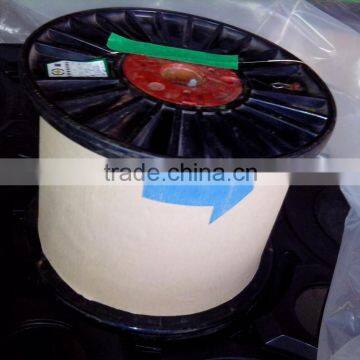

High carbon rubber hose wire 0.25mm with BP60

Name: High carbon rubber hose wire 0.25mm with BP60
Brand: Hengxing
Availability: InStock

FOB Price

USD $1,200 - $1,280 / Ton

10 Tons(Min.Order)

Supply Ability 5000 Ton / Tons per Month
Port Qingdao/Shanghai
Payment TermsT/T D/P D/A

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Steel Grade	steel	Wire Gauge	0.08-0.5mm
Place of Origin	Henan, China	Type	Copper Coated
Application	Other, Manufacturing, Hydraulic hose manufacture	Alloy Or Not	Non-alloy
Special Use	Cold Heading Steel	Model Number	0.08-0.5mm
Brand Name	Hengxing

Product Description

Brass coated Hose reinforcement wire 0.30mm

Hengxing Group factory established in 1995, Public listed in 2007. with now over 3000 emplyees. Our products range is below:

* Glavanized steel wire for acsr cable (biggest manufacture in asia) 240,000tons/year

*Brass coated steel wire for hose reinforcement 80000 tons/year

*Prestress concrete steel strand 240,000tons/year

*Steel cord for radial tyre 100,000 tons/year ISO/TS16949

Welcome to visit our factory in any of your free time!

yours sincerely/ Ms tina

whatsapp/M:86-18637136207

wmcxy at hxkjgf dot com

Description:

The high-pressure hose wire is a kind of steel wire products of high strength, whose surface is plated with a uniform layer of brass alloy. It is used for the reinforcement of the rubber tube by the way of weaving or winding, and is mainly applied in the hydraulic oil tube. The high-pressure rubber tubes can resist high temperature, high pressure, high impact according to different applications, and can be applied in specific occasions such as machinery, aviation, automotive, marine, oil drilling and so on.

Advantages:

Hengxing is specialized in developing and producing high-pressure hose wires, which have various specifications and long service life, and resist high temperature, high pressure and high impact. It has an excellent performance is all aspects.

Nominal diameter	Tolerance	Tensile strength	Torsions (L=100xø)	Reverse bends (r=2.5mm)
mm	mm	(Mpa,N/mm2)	Min	Min
0.2	±0.010	2150~2450	70	125
		2450~2750	70
		2750~3050	65
		3050~3350	60
0.25	±0.010	2150~2450	70	125
		2450~2750	70	125
		2750~3050	65	105
		3050~3350	60	75
0.3	±0.010	2150~2450	65	105
		2450~2750	60	95
		2750~3050	60	85
		3050~3350	50	60
0.35	±0.015	2150~2450	65	60
		2450~2750	60	60
		2750~3050	60	55
		3050~3350	50	50
0.4	±0.015	2150~2750	60	55
		2450~2750	60	55
		2750~3050	60	50
		3050~3350	50	45
0.42	±0.015	2150 ~2450	60	50
		2450 ~ 2750	60	50
		2750 ~3050	50	45
0.46	±0.015	2150~2450	60	45
		2450~2750	60	45
		2750~3050	50	40
0.5	±0.015	2150~2450	60	40
		2450~2750	60	35
		2750~3050	50	30

Welcome to visit our factory in any of your free time!

yours sincerely/ Ms tina

whatsapp/M:86-18637136207

wmcxy at hxkjgf dot com
