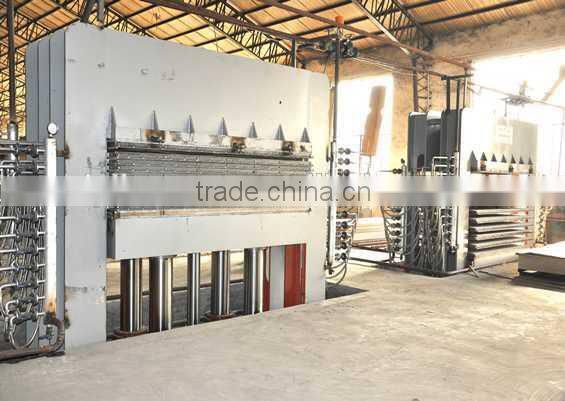

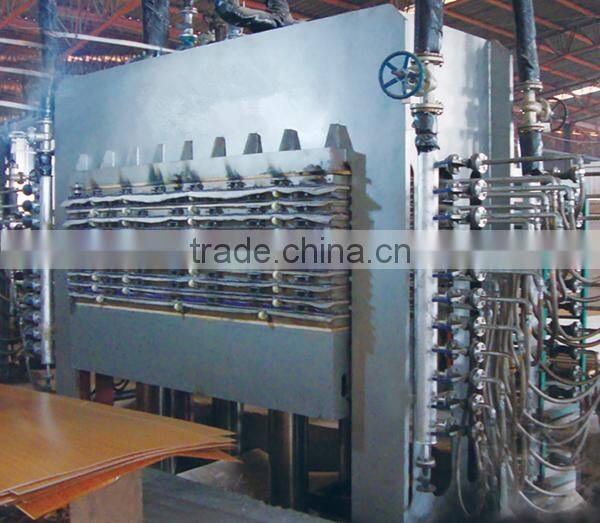

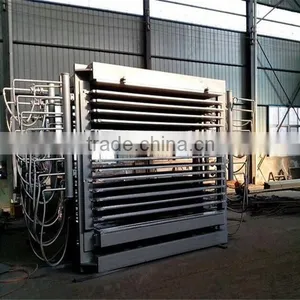

Multilayer Melamine Laminating Hot Press Machinery 100mm Between Hot Platens

US$ 21500.00 - 42600.00 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Hot Press

Application:

Plywood

Linyi Jinguan Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Hot Press

Application Plywood

Pressure 500Tons

Place of Origin Shandong, China

Brand Name JG

Model Number 4*8JG-500-15

Voltage 380V

Power(W) 15KW

Dimension(L*W*H) 3590*1400*4070MM

Weight 30Tons

Certification ISO

Warranty 12 Months

After-sales Service Provided Engineers available to service machinery overseas

Multilayer Melamine Laminating Hot Press Machinery

1	Nominal Gross Pressure	6000 KN
2	Direction of Feeding Plate	Horizontal ,Vertical
3	Layer Counting	10
4	Distance between Hot Platens	100mm
5	Numbers of Hot Platens	11
6	Dimension of Hot Platens	1400×2700×52mm
7	Type of Pipes	Double Inlet and Outlet Pipes
8	Numbers of Cylinder	6
9	Diameter of Cylinder	Φ220mm(Shanghai)
10	Stroke of Cylinder	1000mm
11	Pressurization	≤25 Mpa
12	Empty Closing Time	About 17 S
13	Low Pressure Pump Flowing	355L/min×3
14	Allowed Pressure	≤5 Mpa
15	Power	15KW×3
16	High Pressure Pump Flowing	About 89L/min
17	Power	15 KW
18	Pressure of Unit Plate Blank	20 Kgf/cm2
19	Dimensions of The Board	1240×2460mm
20	Machine Weight	About 40000 Kg
21	Overall Dimensions	3590×1400×4070mm
22	Control Method	Automatic Pumping Station
23	Thickness of Upper And Lower Crossbeams	900,1000mm
24	Thickness of Steel Plate	30,25,16mm
25	Steel Plate Of Upright Column	30,16mm
26	Thickness of Acctive Crossbeam	400mm
27	Thickness of Steel Plate	30,20mm
