Specifications
full ceramic ball bearing(1) High seed bearing
(2)High temperature-resist
(3)Anti-magnetic bearing
Good quality full ceramic ball bearing 6803
1.Feature of Good quality 6803 full ceramic ball bearings
(1)High speed bearing
(2)High temperature-resistant bearing
(3)Corrosion-resistant bearing
(4)Antimagnetic bearings
(5)Electric-insulated bearing
-
Deep groove ceramic ball bearing Bearing No. Boundary dimensions(mm) Mass(kg) (refer) d D B ZrO2 Si3N4 688CE 8 16 4 0.0025 0.0014 689CE 9 17 4 0.0027 0.0015 6800CE 10 19 5 0.004 0.0021 6801CE 12 21 5 0.005 0.0025 6802CE 15 24 5 0.005 0.0029 6803CE 17 26 5 0.005 0.0029 6804CE 20 32 7 0.013 0.007 6805CE 25 37 7 0.016 0.009 6806CE 30 42 7 0.018 0.01 6807CE 35 47 7 0.021 0.011 6907CE 55 10 0.058 0.031 6808CE 40 52 7 0.02 0.013 6809CE 45 58 7 0.029 0.016 6810CE 50 65 7 0.038 0.021 6811CE 55 72 9 0.06 0.03 6812CE 60 78 10 0.08 0.04 6813CE 65 85 10 0.1 0.05 6814CE 70 90 10 0.1 0.056 6314CE 150 35 1.98 1.07 6815CE 75 95 10 0.11 0.06 6816CE 80 100 10 0.12 0.063 6817CE 85 110 13 0.2 0.11 6818CE 90 115 13 0.21 0.12 6819CE 95 120 13 0.23 0.12 6820CE 100 125 13 0.24 0.13 6821CE 105 130 13 0.25 0.14 6822CE 110 140 16 0.38 0.21 6824CE 120 150 16 0.41 0.22 2. Description of ceramic bearings
Ceramic ball especially Si3N4 have the following performance as low density, high strength, low friction coefficient, electrical and magnetism resistance, wear resistance, well rigidity, lubrication and maintenance free when working, it's the best choice for rollers (inner ring and outer ring are made by metal) of the hybrid construction which are used in high-speed, high accuracy and long life environments. Normally, GCr15 or (AISI440C,316 304) makes inner ring and outer ring; The ceramic ball can adopt ZrO2, Si3N4 or Sic.

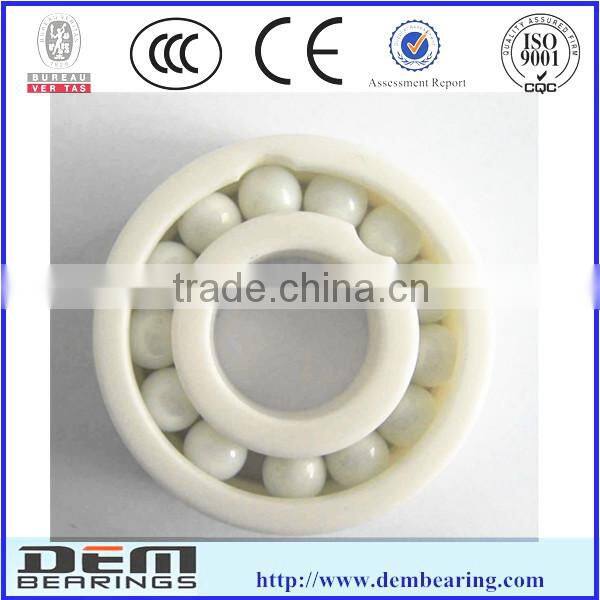

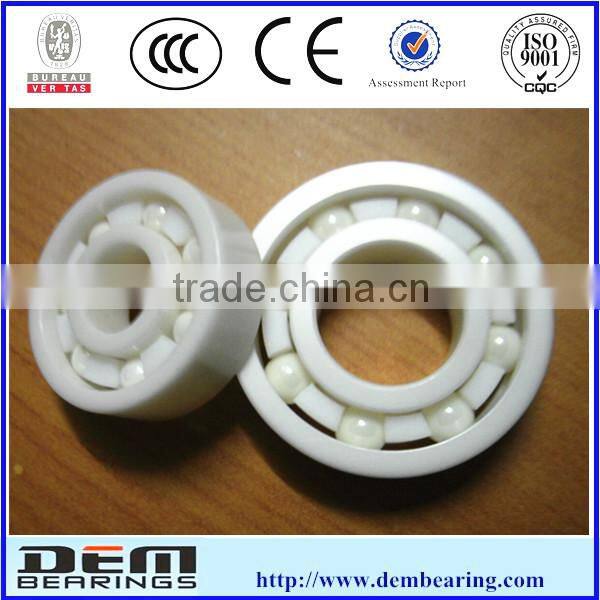

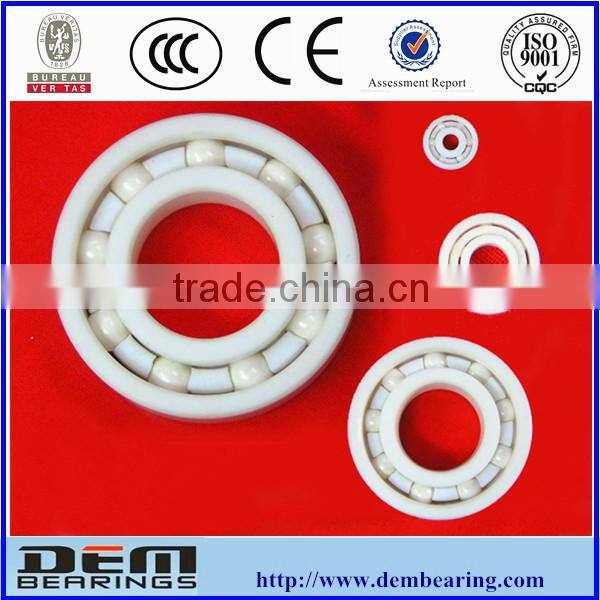

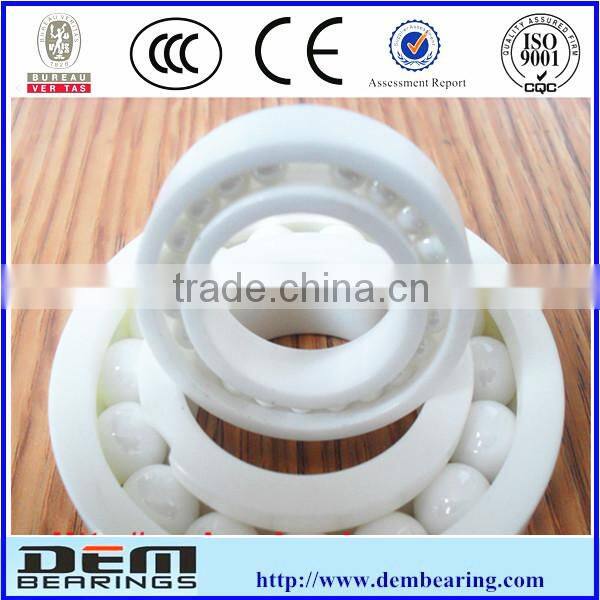

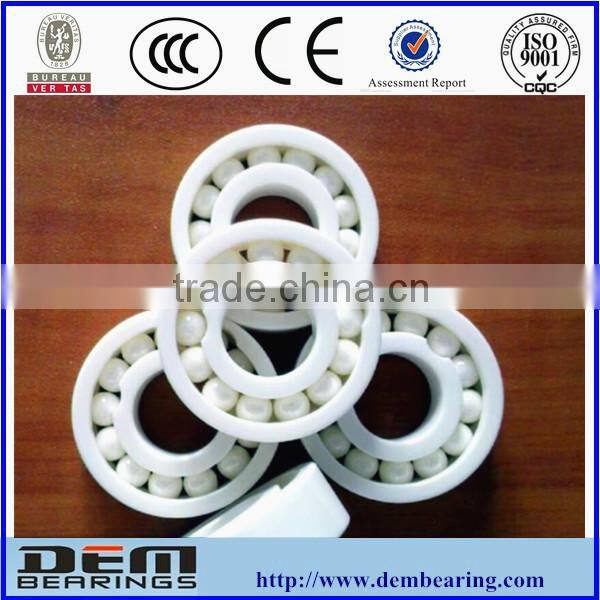

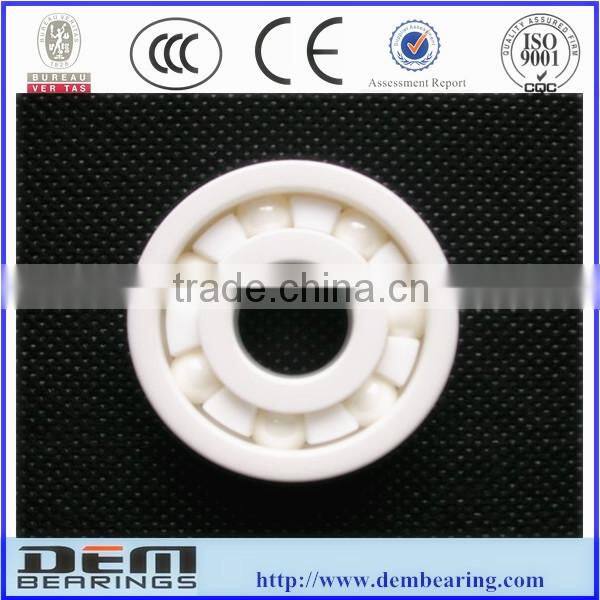

3. Photos of full ceramic ball bearing
