Smart LED Downlight
Smart Led Downlight Specification:
| Intallation Height | ≤3.5m (below 3m is recommened) | ||
| Standby Mode | 2.2W - 15% brightness (adjustable) | ||
| Delay Time | 60 seconds (adjustable) | ||
| Detection Angle | ≤30° | ||
| Detection Distance | ≤8m(distance between two lights) | ||

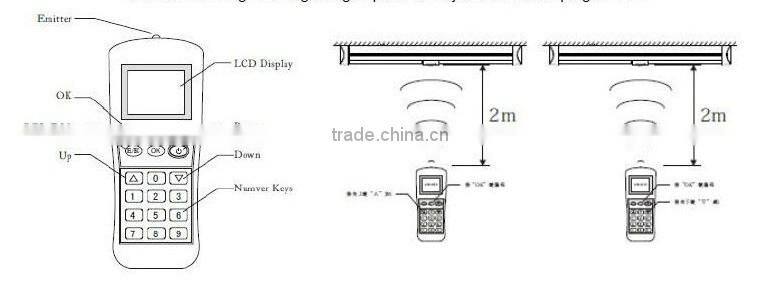

| IR Controller Distance | ≤2m(distance to the light during setting) | ||
| Model No. | ENDL | ||
| Input Voltage & Frequency | AC90~150V / AC176~265V 50/60Hz | ||
| Light Source | SAMSUNG SMD5630(24pcs) | ||
| Power Consumption | 15W ± 10% | ||
| Color Temperature | WW:2700-3300K | PW:4000-4500K | CW:6000-6600K |
| luminous Flux | 900lm±10% | 975lm±10% | 1050lm±10% |
| CRI(Ra) | ≥80 | ||
| PF | ≥0.9 | ||
| Average Beam Angle(50%) | 110°±2 | ||
| Working Temperature | -20°C~40°C(≤95%RH) | ||
| Housing Material | Aluminum + PC cover | ||
| Dimension | Ø200 x 60mm Hole size: 175mm | ||
| Net Weight | 750g±10% | ||
| LED Lifespan | ≥50,000 hrs | ||
| Protection Grade | Indoor Use | ||
| inner box qty | 1PC (210*210*100mm) | ||
| outer carton qty | 20PCS (520*435*435 mm) | ||
Smart Led Downlight Feature:
* Brightness can be adjusted without switch and control system.
* Automatically dim to 20%~50% brightness on standby mode,light up 100% once moving objects are detected
by built-in motion sensors.
* With patent technology.we have intelligent functions with reasonable price.
* Easily installation ,simply replacing traditional downlight.

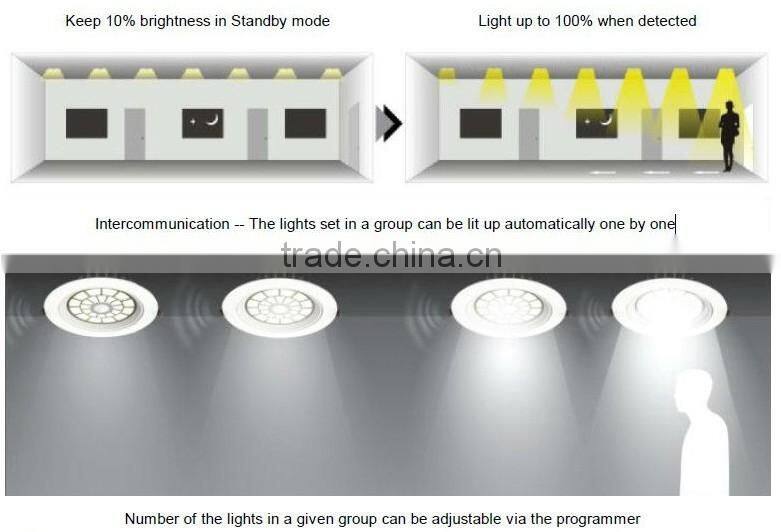

Smart Led Downlight Work Mode:
1. Light brightness can be automatically dimmed to 10~50% in standby mode and up to 100% when a moving person is there.
2. Light brightness level and lighting time are adjustable by manufacturer
3. Intercommunication - means When a light is 100% lighting, other lights in this group will be 100% lighting automatically one by one
4. Number of the lights in the group is adjustable via a remote control

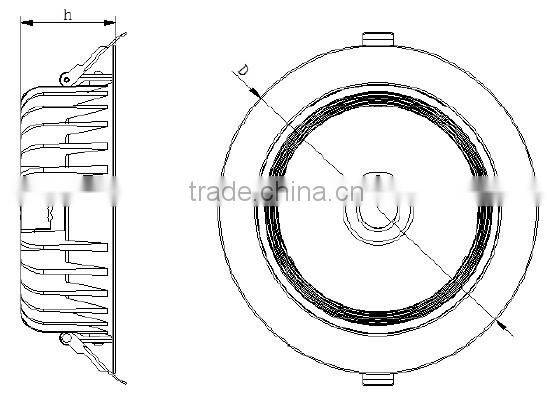

Smart LED Downlight Technical Drawing

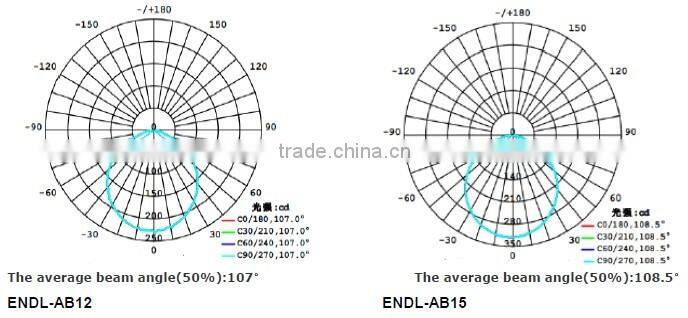

Smart LED Downlight Light Distribution Curve
