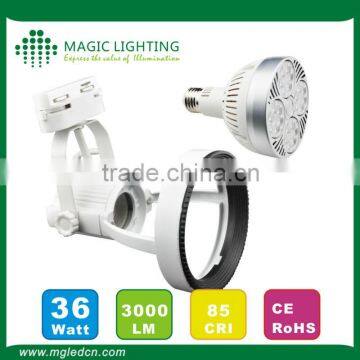

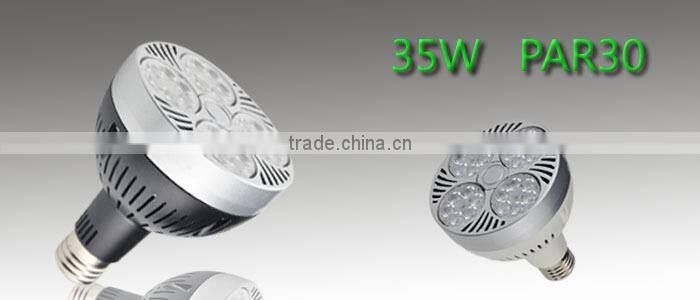

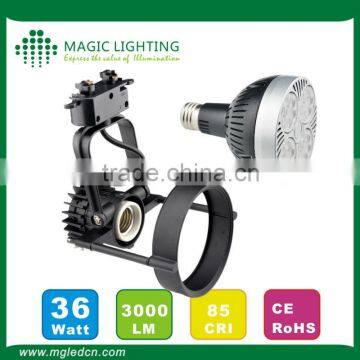

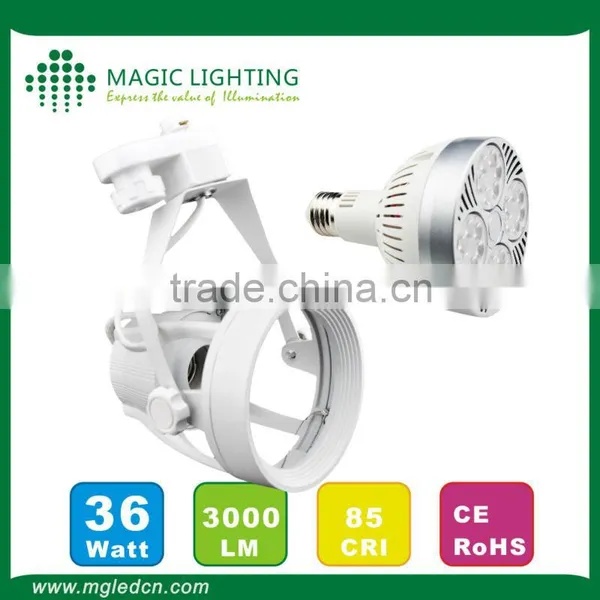

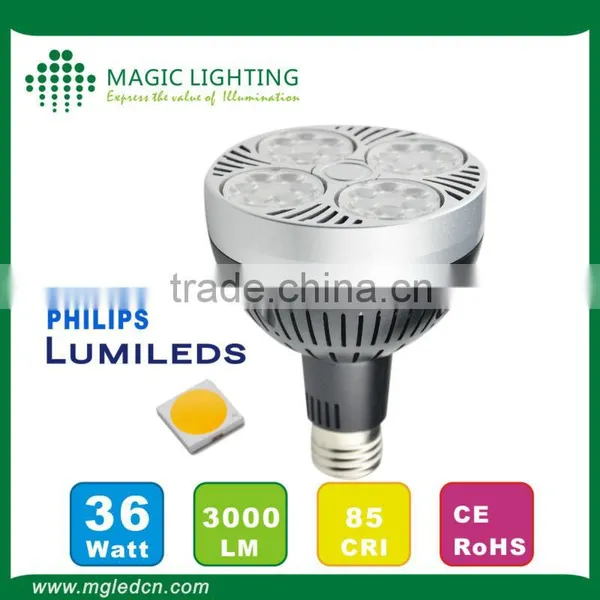

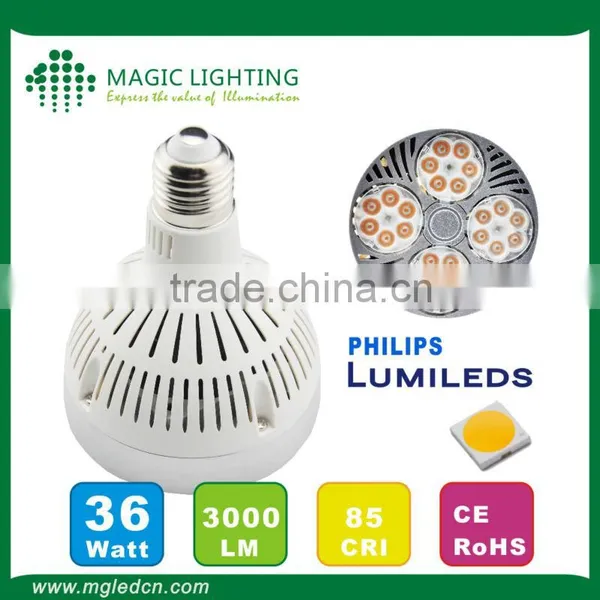

2015 PAR30 35W Square Recessed 2x2 Led Drop Ceiling Light Panels
Brand |
Magic Lighting |
| Model Number | ML-PAR30-L35W |
| Power Consumption | 36W |
| Input Voltage | AC100-240V 50/60Hz |
| LED Chip |
Philips Lumileds Luxeon/Osram |
| Luminous Flux | 2800-3200lm |
| CCT | Cool white(5700-6000K) Natural white(3800-4000K) Warm white(2700-3000K) |
| Color Rendering Index | Ra>80 |
| Beam Angle | 18° 24° 45° |
| Power Factor | >0.95 |
| Operate Temperature |
-20°C to 40°C |
| Body Material | Anti-aging and fire-resistant PC+Precision aviation aluminum |
| Lamp Holder | E27(Stainless copper base) |
| Body Color | White Black |
| Size | Φ95*120mm |
| Application | Easy install in Supermarket, multiple shop,show room,hotel etc |
| Model Number | Power | Beam Angle |
CCT | Luminous Flux | Luminous efficacy | CRI | Certification | Replace metal halide lamp |
| ML-PAR30-L35W(A1) | 36W | 18°/24°/45° | 2700K-3000K | 2800lm | 78lm/W | >80 |
Replace 70W metal halide lamp,100W CFL and 350W incandescent lamp. |
|
| ML-PAR30-L35W(A1) | 36W | 18°/24°/45° | 3800K-4000K | 3000lm | 82lm/W | >80 | ||
| ML-PAR30-L35W(A1) |
36W | 18°/24°/45° | 5700K-6000K | 3200lm | 88lm/W | >80 | ||
| ML-PAR30-L35W(A2) | 36W | 18°/24°/45° | 2700K-3000K |
2800lm | 78lm/W | >80 | EMC EMI | |
| ML-PAR30-L35W(A2) | 36W | 18°/24°/45° | 3800K-4000K | 3000lm | 82lm/W | >80 | EMC EMI | |
| ML-PAR30-L35W(A2) | 36W | 18°/24°/45° |
5700K-6000K | 3200lm | 88lm/W | >80 | EMC EMI |

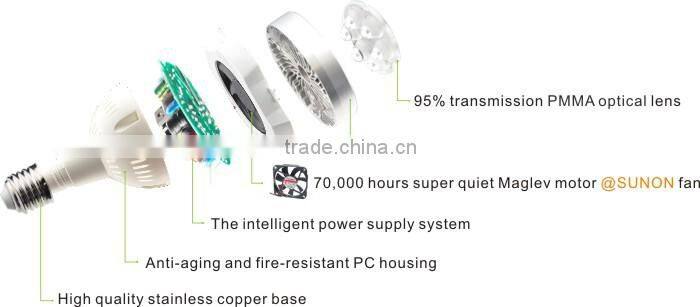

FAN PK
| LED PAR30 ---- MAGIC LIGHTING |
OTHER SUPPLIERS |
| Taiwan @SUNON maglev motor fan | No any brand |
| Super quiet | Have bigger noisy |
| 70,000 hours long lifespan | Short lifespan |
| Low power consumption(0.65W) | High power consumption(1-3W) |

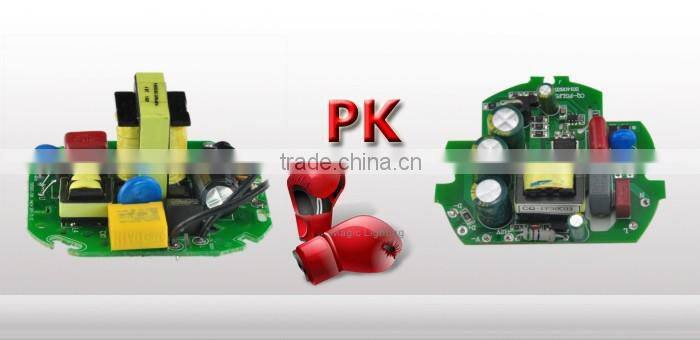

LED DRIVER PK
LED PAR30 ---- MAGIC LIGHTING |
OTHER SUPPLIERS |
Isolated driver,EMC EMI approved |
Non-isolated driver, EMC EMI problem |
| High quality FR-4 PCB,CE Standard |
General PCB |
| Intelligent temperature controlling power surpply system |
No any temperature controlling systerm |

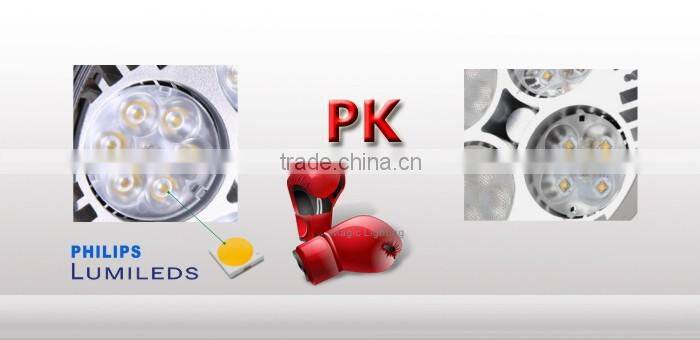

LED LIGHT SOURCE PK
LED PAR30 ---- MAGIC LIGHTING |
OTHER SUPPLIERS |
@Philips Lumileds LED,with high luminous efficiency and over 80Ra color rendering |
General led,no any brand,small ship and fast luminance decrease or sulfuration risk |

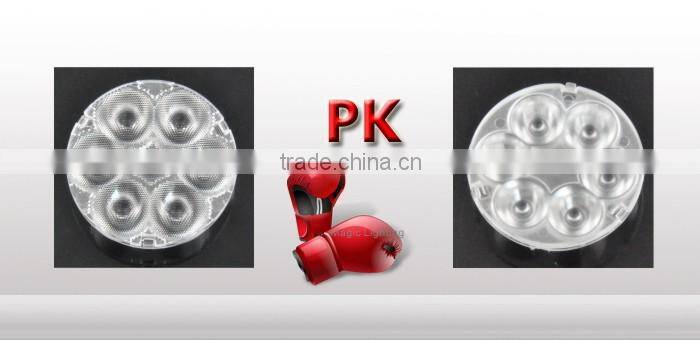

LENS PK
LED PAR30 ---- MAGIC LIGHTING |
OTHER SUPPLIERS |
|
Professional Mitsubishi V-grade optical design lens,95% light transmittance,higher lumen output |
Nomal material lens or use reclaimed materials to save cost,no any optical design,lower lumen output |

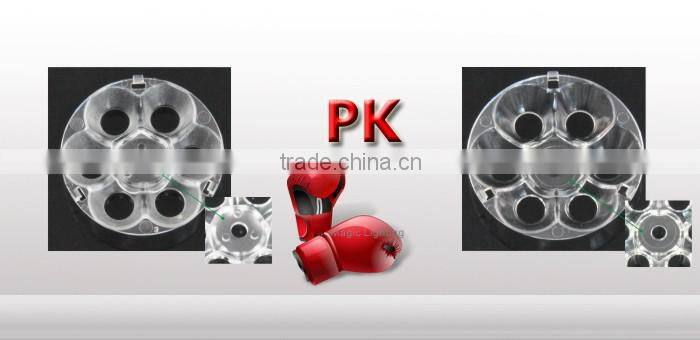

LED PAR30 ---- MAGIC LIGHTING |
OTHER SUPPLIERS |
| Lens holder have a base hole to fix with PCB better for correct match led with lens to get the correct highest lumen output | Normal material lens holder,easy to mismatch the led,lens and pcb that means easy to get risk broken led or can not fix very well to get the correct beam angle and lumen output |

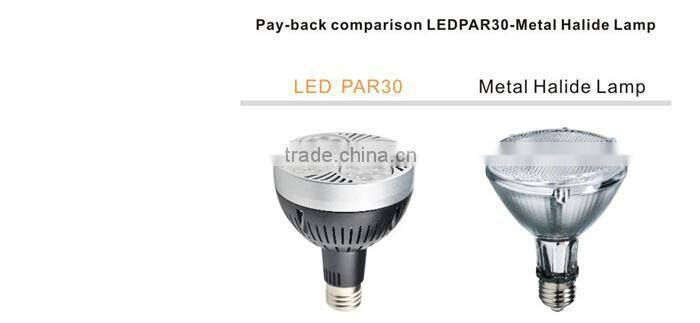

ENERGY EFFICIENCY PK
| ML-PAR30-L35W | Metal Halide Lamp 70w |
|
| Lifetime of the lamp(hours) | 30,000 | 10,000 |
| Yearly energy costs | US$29.75 | US$59.50 |
| Yearly replacement cost | US$0.60 | US$3.00 |
| Initial costs per piece | US$9.99 | US$42.00 |
| Total costs per year | US$40.34 | US$104.50 |
| Saving cost per year | US$64.16 | |
Remark: usage 13.7 hr/day , 5000 hrs/year,energy cost arround US$0.17/kWh

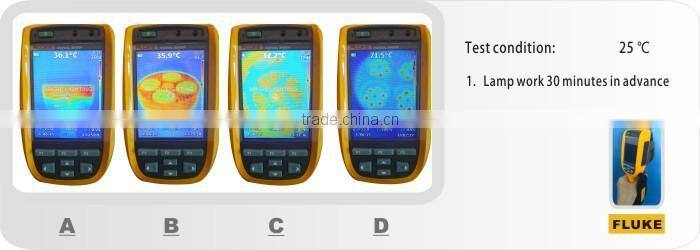

TEST REPORT
| A. Heatsink profile temperature 36.1 ℃ | ||
| B. Heatsink front surface temperature 35.9 ℃ | ||
| C. The highest temperature of PCB is 37.2 ℃ | ||
| D. The highest temperature of led is 75 ℃ |
| G.W./unit |
G.W./Ctn. |
Qty/Ctn. |
Ctn.Size |
| 276g | 10.8kg | 30pcs | 505*420*205m |

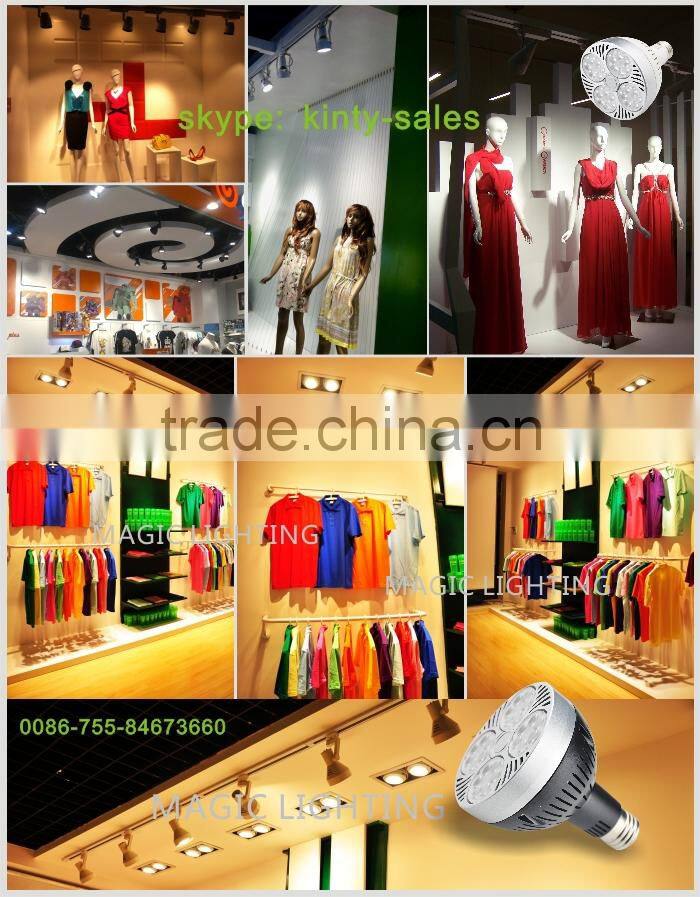

Application
Magic Lighting Main products system :
LED PAR30 Series ( Philips Lumileds Luxeon )
LED T8 Tube Light
LED T5 Tube Light
LED Spotlight MR16 GU10
2x2 led drop ceiling light panels square led ceiling light led recessed ceiling light
