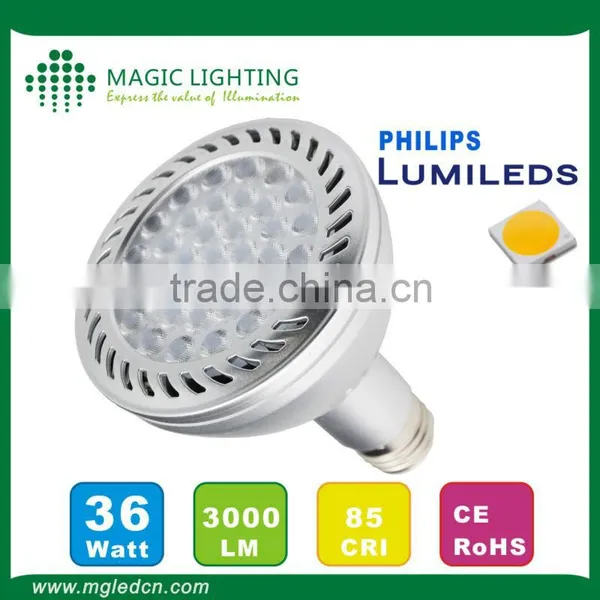

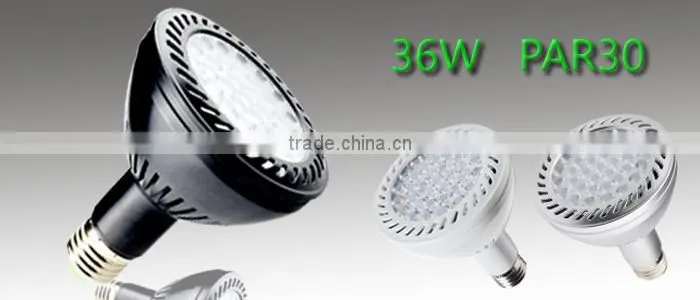

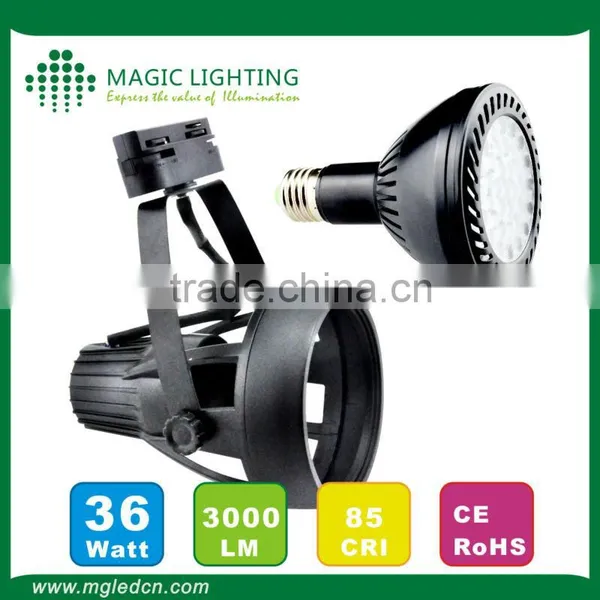

ultra-thin 13mm surface mount fixture ceiling Light color changing Led
| Brand | Magic Lighting |
| Model Number | ML-PAR30-L36W |
| Power Consumption | 37W |
| Input Voltage | AC100-240V 50/60Hz |
| LED Chip |
Philips Lumileds Luxeon/Osram |
| Luminous Flux | 2800-3200lm |
| CCT | Cool white(6000K) Natural white(4000K) Warm white(3000K) |
| Color Rendering Index | Ra>80 |
| Beam Angle | 25° |
| Power Factor | >0.95 |
| Operate Temperature |
-20°C to 40°C |
| Body Material | Anti-aging and fire-resistant PC+Precision aviation aluminum |
| Lamp Holder | E27(Stainless copper base) |
| Body Color | White Black Silver |
| Size | Φ95*120mm |

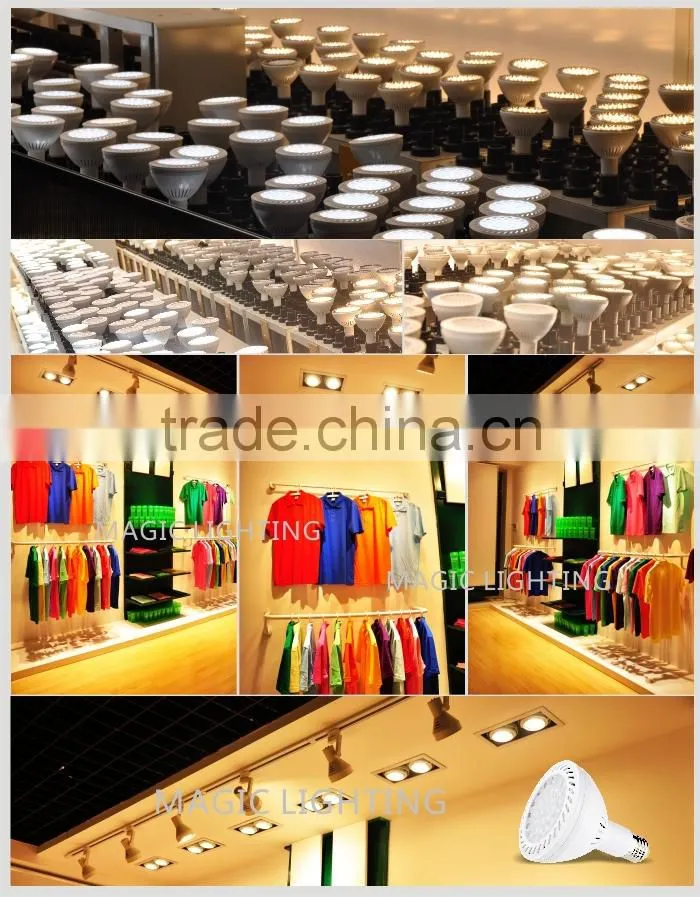

| Application | Easy install in Supermarket, multiple shop,show room,hotel etc |
| Model Number | Power Consumption | Beam Angle | CCT | Luminous Flux | Luminous efficacy | CRI | LED quantity | Replace metal halide lamp |
| ML-PAR30-L36W | 37W | 25° | 2700K-3000K |
2800lm | 78lm/W | >80 | 36PCS | Replace 70W metal halide lamp,100W CFL and 350W incandescent lamp. |
| ML-PAR30-L36W | 37W | 25° | 3800K-4000K | 3000lm | 82lm/W | >80 | 36PCS | |
| ML-PAR30-L36W | 37W | 25° | 5700K-6000K | 3200lm | 88lm/W | >80 | 36PCS |

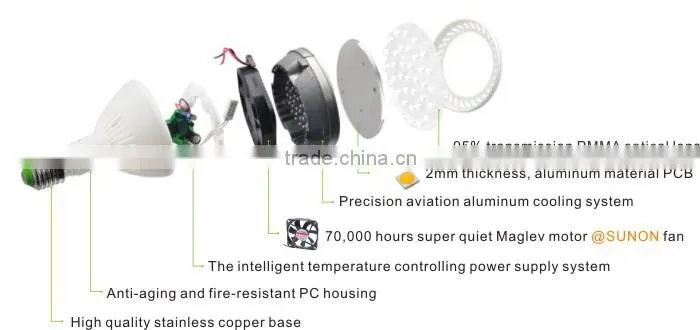

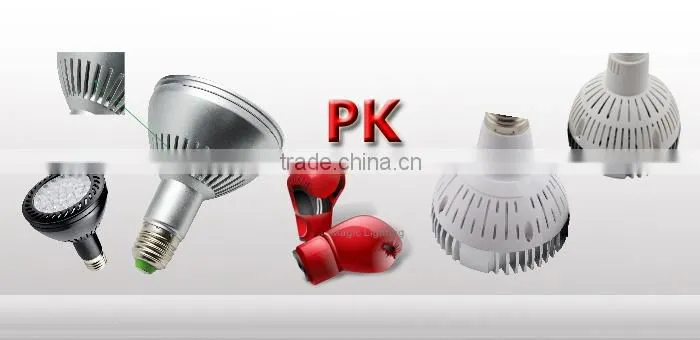

LAMP HOUSING PK
| LED PAR30 ---- MAGIC LIGHTING |
OTHER SUPPLIERS |
| Dustproof design | No any dustproof design |
| Resonable structure design for air convection,driver pcb with vertical design is much more resonable for fan working |
Unresonable structure design,round driver pcb will hinder the air convection |
| No any screw on body surface,better for stability | Have screw on surface |
| 1:1 size same as tranditional PAR30,fit all of PAR30 fixtures | Can not fit all of fixture,because the size is not 1:1 |
| Full PC housing with high insulation class | Have aluminum parts,unsafety |

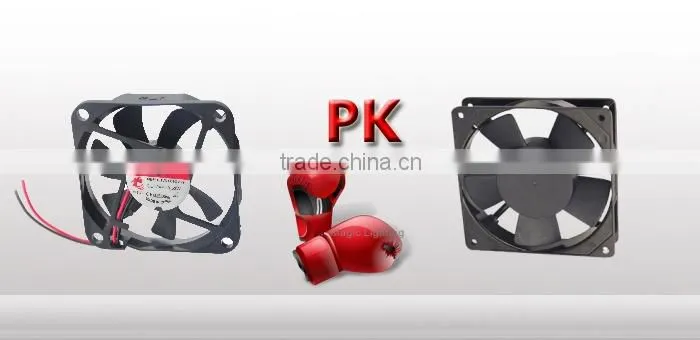

FAN PK
| LED PAR30 ---- MAGIC LIGHTING |
OTHER SUPPLIERS |
| Taiwan @SUNON maglev motor fan |
No any brand,have risk maybe shorter lifespan than lamp |
| Super quiet |
Have noisy |
| 70,000 hours long lifespan at 25 ℃ |
Short lifespan |
| Low power consumption(0.65W) | High power consumption(1-3W) |

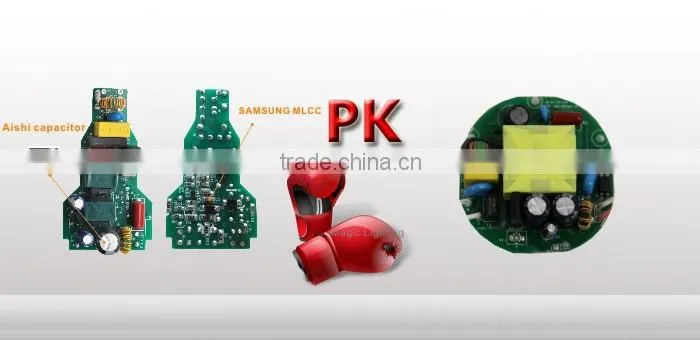

LED DRIVER PK
LED PAR30 ---- MAGIC LIGHTING |
OTHER SUPPLIERS |
Famous brand parts,@Aishi tantalum electrolytic capacitor @Samsung multilayer ceramic capacitor etc. |
No any brand |
| High quality FR-4 PCB under CE standard |
General PCB and components |
| Intelligent temperature controlling power surpply system | No any temperature controlling systerm |

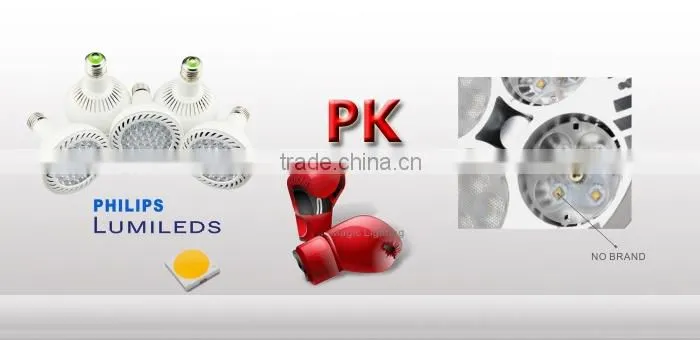

LED LIGHT SOURCE PK
LED PAR30 ---- MAGIC LIGHTING |
OTHER SUPPLIERS |
Famous brand@Philips Lumileds LED,with high luminous efficiency and good color rendering |
General led,no any brand,have luminance decrease or sulfuration risk |

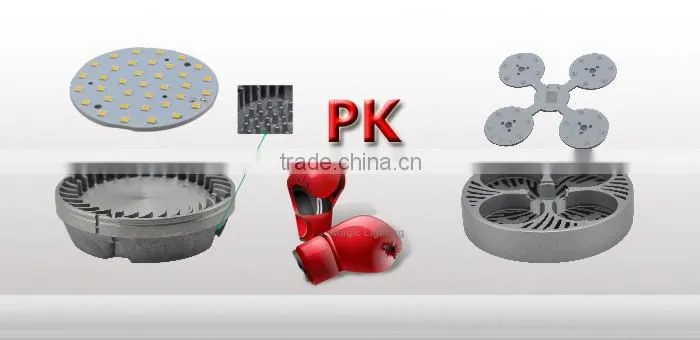

PCB AND HEATSINK PK
| LED PAR30 ---- MAGIC LIGHTING | OTHER SUPPLIERS |
| 2.0 thermal conductivity Index import from TaiWan aluminum material, 2.0mm thickness(70oz copper layer ),better for long lifespan | General PCB,35oz copper layer |
| 6063# pure aluminum use cold-pressing Technic One-batch forming | In order to reduse costs,some supplier use recycled aluminum,with paint surface treatment |
| The position of Heatsink where put PCB is plat solid,means can be matched with PCB with thermal paste very well |
The position of Heatsink where put PCB have many hole,means can not 100% match whole surface with PCB,so that the lumen decrease will be bigger |

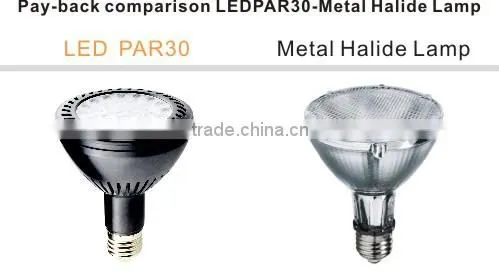

ENERGY EFFICIENCY PK
| ML-PAR30-L36W | Metal Halide Lamp | |
| Lifetime of the lamp(hours) | 30,000 | 10,000 |
| Yearly energy costs | US$30.60 | US$59.50 |
| Yearly replacement cost | US$0.60 | US$3.00 |
| Initial costs per piece | US$14.99 | US$42.00 |
| Total costs per year | US$46.19 | US$104.50 |
| Saving cost per year | US$58.31 | |
Remark: usage 13.7 hr/day , 5000 hrs/year,energy cost arround US$0.17/kWh

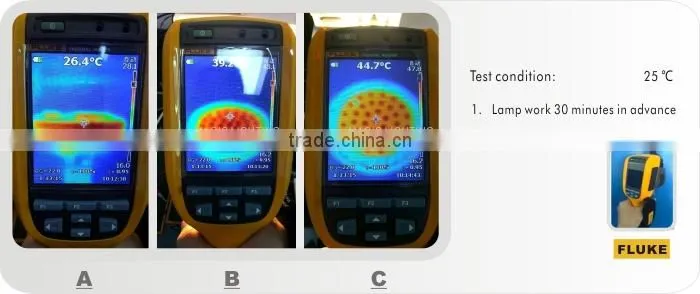

TEST REPORT
| A. Lamp profile temperature 26.4 ℃ | ||
| B. Lamp front surface temperature 39.2 ℃ | ||
| C. The highest temperature point of led is 44.7 ℃ |
| G.W./unit |
G.W./Ctn. |
Qty/Ctn. |
Ctn.Size |
| 226g | 9.3kg | 30pcs | 505*420*205m |
Magic Lighting Main products system :
LED PAR30 Series ( Philips Lumileds Luxeon )
LED T8 Tube Light
LED T5 Tube Light
LED Spotlight MR16 GU10
ceiling light color changing led ultra-thin 13mm surface mount led ceiling light ceiling mount led light fixture
