110V/220V IP67 Smd5050 Strip Led Light

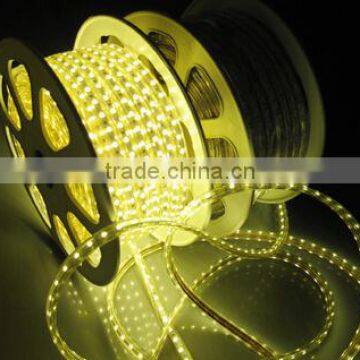

110V/220V IP67 Smd5050 Strip Led Light photo-1

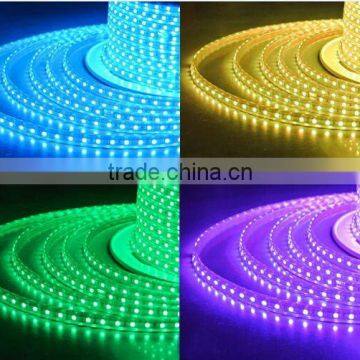

110V/220V IP67 Smd5050 Strip Led Light photo-2
Negotiable MOQ: 100 Meters (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
LED Light Source:
5050smd
Type:
Flex LED Strips
Input Voltage(V):
220
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
LED Light Source 5050smd
Type Flex LED Strips
Input Voltage(V) 220
Lamp Power 10w
Lamp Luminous Flux(lm) 1200
Color Temperature(CCT) R/G/Y/B/W/WW/RGB
Working Temperature(℃) -20, 40
Working Lifetime(Hour) 30000
Lamp Body Material PVC
Certification CE
Emitting Color White
Place of Origin Guangdong, China
Brand Name magic
Model Number ML-STS5050

Specifications

1 AC100-120V / AC210-230V
2 18-20lm/led 5050 Max:100m
3 CE RoHS ETL
4 Popular with Europe & America market

110V/220V IP67 smd5050 strip led light





Item no: ML-STS5050-R/G/Y/B/W/WW

Power: 7W/m

Color: W/WW/R/Y/B/G available
Voltage: AC100-120V or 220-240V
Length: 50m/roll
LED QTY: 60pcs/meter

Cuttable unit: 0.5m/cut

IP Grade: IP67

Lifespan: 30000h
CE&RoHS 2 years warranty

Function: Chasing,twinkling,Skip,Guadual changing,static single color



1. Can be run in 220V or 110V without extra adaptor or power source.



2. Can be max run 100 meter and also be cut or connected in every 0.5meter.



3. PVC tube provides good waterproof and can be used both indoor & outdoor.



4. Solid-state for high vibration resistance and good flexibility for any shape.



5. Independent LED, one led broken will not affect next leds.



6. More energy-saving, power consumption: SMD 50507W/M

110V/220V IP67 smd5050 strip led light



Applications:

Light up colorful home life
DIY household lights for hallways, stairs, trails ,windows
Light up colorful life hotels decoration use,theaters, clubs, shopping
Extensively applied in backlighting for signage letters,concealed lighting
Applicable for airplane model decoration, contour lighting or border
Architectural decorative lighting,archway, canopy and bridge



 110V/220V IP67 smd5050 strip led light

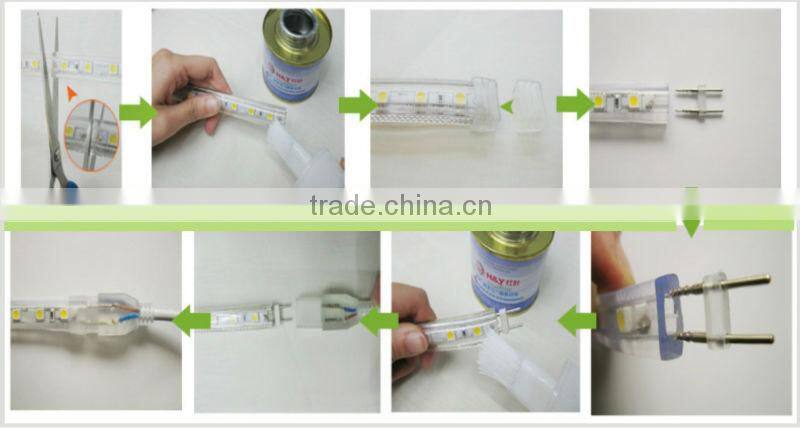

How to connect and install high voltage led strip:

1. Install: Take out the package,make sure it comes with necessary accessories,which should include:fixing clips,middle plugs,end caps,head wires.fix the strips with clips onto where you need,put the wire into sockets to light the strips.



2. Cut: Please cut the strips only along the cutting mark on the PCB,dont cut at random.Block up the end with end caps,seal with enough glue to make sure its still waterproof.



3. Connect: Plug the head wire into a strip to conduct the electricity,or plug a middle plug into the ends of two separate strips to connect them into a long strip,after well connected,seal all the plugs with enough glue.



4. The max length is 100M for each line in series , or it should change line and connect power supply



110V/220V IP67 smd5050 strip led light







110V/220V IP67 smd5050 strip led light



110V/220V IP67 smd5050 strip led light



110V/220V IP67 smd5050 strip led light
