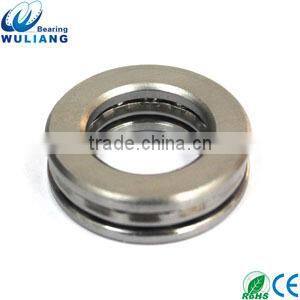

F8-19 thrust bearing F8-19M 8X19X7mm

F8-19 thrust bearing F8-19M 8X19X7mm

F8-19 thrust bearing F8-19M 8X19X7mm characteristics

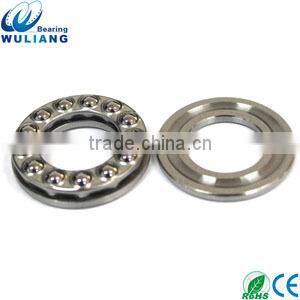

• The single direction thrust ball bearing consist of a shaft washer, a housing washer and a ball and cage thrust assembly.
• The bearings are separable so that mounting is simple as the washers and the ball and cage assembly can be mounted separately.

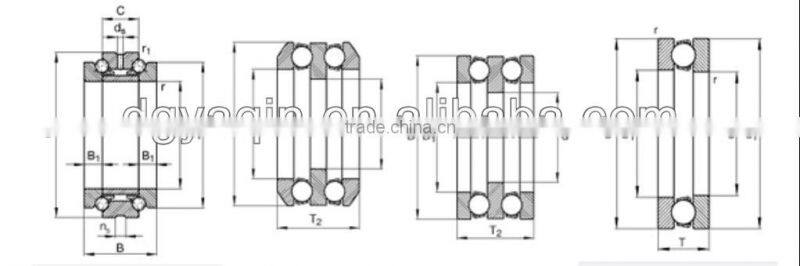

• The types: bearings with a flat seat surface on the housing washer, bearings with a sphered seat surface and bearings with a sphered housing washer can be used together with a sphered seat washer
• This type bearing can accommodate axial loads in one direction and thus locate a shaft axially in one direction. They must not be subjected to any radial load.

 detail Image Show:

 Application:

1) These bearing are widely used in automobile, electrical. (Home appliances, electric tools, fitness

     equipment, motors, medical devices, motorbikes, textile machines)
2) Equipment, instrument, building machinery, rolling stock agricultural machinery and various specialized

     machineries.

Factory Picture

F8-19 thrust bearing F8-19M 8X19X7mm
