Energy Saving High Quality T8 LED Tube 10W packing lots pir
Specification of pir
| Brand | Magic Lighting |
| Model Number | MG-T806PIR10 |
| Power Consumption | 10W |
| Input Voltage | AC100-240V 50/60Hz |
| LED Chip |
2835 SMD |
| Luminous Flux | 1000lm |
| CCT | Cool white(6000K) Natural white(4000K) Warm white(3000K) |
| Color Rendering Index | Ra>80 |
| Beam Angle | 120° |
| Power Factor | >0.9 |
| Operate Temperature |
-20°C to 40°C |
| Body Material | PC & Pure Aluminum |
| Lamp Holder | G13 |
| Size | 30*600mm |
| Application | Easy install in supeSrmarket,packing lot,warehouse,hotel etc. |
PIR Sensor
LED TUBE

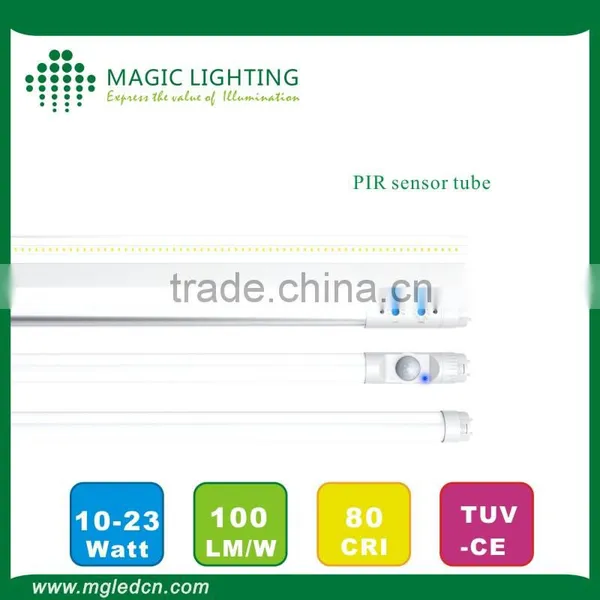

LED PIR tube is Magic Lighting Company’s newest independently developed LED Tube.
With adjustable delay shut off time and power saving adjustment it’s suitable for areas such
as parking lot, corridors, warehouses, hotels and similar venues.

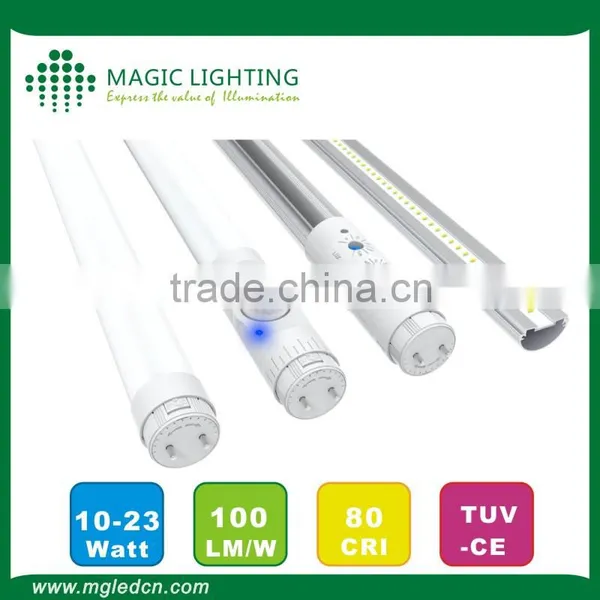

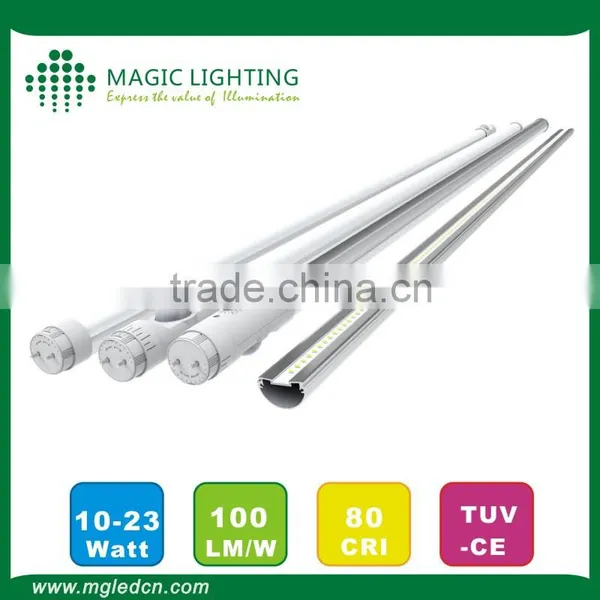

Picture of pir
| Model Number | Power Consumption | Beam Angle | CCT | Luminous Flux | Luminous efficacy | CRI | LED quantity | Sensing Distance |
| MG-T806MW10 | 10W | 120° | 6000/4000/3000K |
1000lm | 100lm/W | >80 | 60PCS | Microwave senor tube,sensing distance 10m. |
| MG-T812MW18 | 18W | 120° | 6000/4000/3000K | 1800m | 100lm/W | >80 | 120PCS | |
| MG-T815MW23 | 23W | 120° | 6000/4000/3000K | 2200lm | 100lm/W | >80 | 156PCS | |
| MG-T818MW24 | 24W | 120° |
6000/4000/3000K | 2300lm | 100lm/W | >80 |
180PCS | |
| MG-T806PIR10 | 10W | 120° |
6000/4000/3000K |
1000lm | 100lm/W | >80 |
60PCS | PIR sensor tube light. |
| MG-T812PIR18 | 18W | 120° | 6000/4000/3000K | 1800lm | 100lm/W | >80 | 120PCS | |
| MG-T815PIR23 | 23W | 120° | 6000/4000/3000K | 2200lm | 100lm/W | >80 | 156PCS | |
| MG-T818PIR24 | 24W | 120° | 6000/4000/3000K | 2300lm | 100lm/W | >80 | 180PCS |
1 TIME: When user is away from detection zone, light tube will stay on based on the set time.
(5S,30S,1M,3M,5M,10M,20M,30M,60M).
2 LUX: When user is away from detection zone, the power consumption of the tube will be reduced to the set amount. (0, 10%, 20%, 30%, 40%)

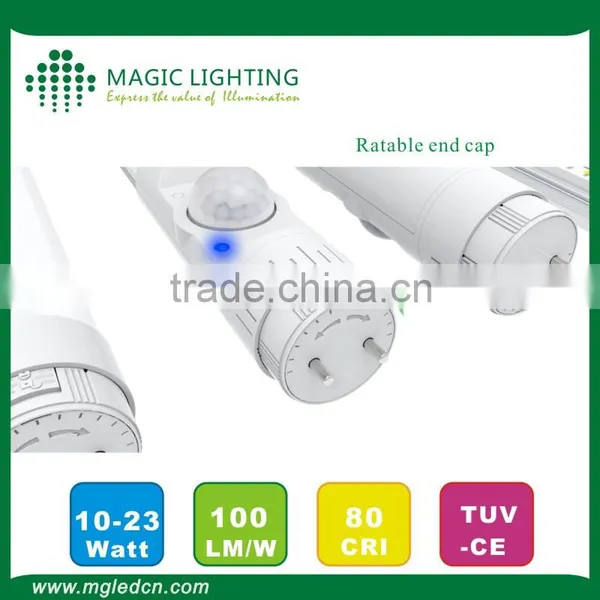

3 LED Tube’s end cap is rotatable 90º clockwise and counter clockwise. This can accurately position the tube to the direction of the sensing and lighting area.

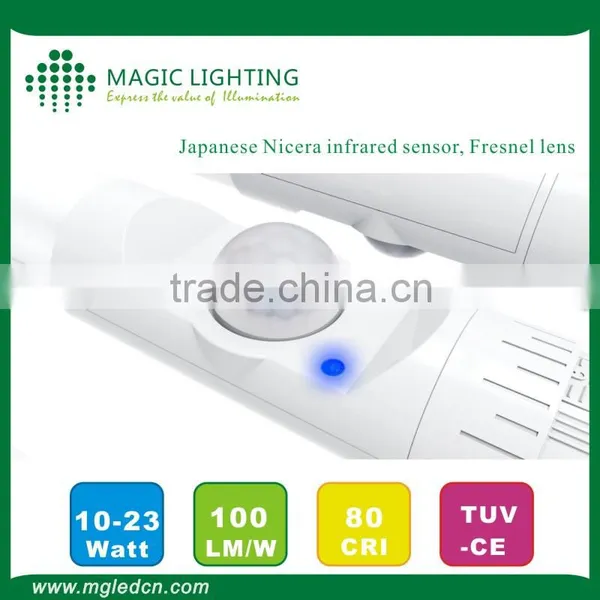

(Through independent R&D we developed our own passive PIR sensor utilizing Japanese Nicera infrared
sensor, Fresnel lens, and microcontroller unit (MCU). This internal PIR sensor has time delayed action, anti -
interference, and more accurate sensing capability).
| G.W./unit |
G.W./Ctn. |
Qty/Ctn. |
Ctn.Size |
| 315g | 8.3kg | 25pcs | 665*220*225mm |
Blister package for single tube.
Strong bubblepack safe packing.
Parking garages, warehouses, offices, corridors, and factories.
Magic Lighting Main products system :
LED PAR30 Series ( Philips Lumileds Luxeon )
LED T8 Tube Light ,can be with sensor
LED T5 Tube Light
LED Spotlight MR16 GU10
