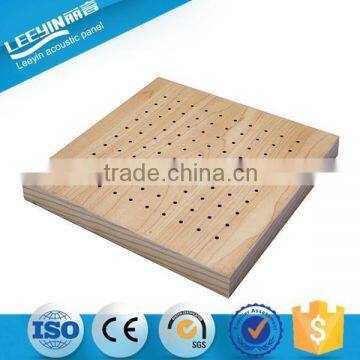

Enviromental Soundproofing Material Perforated Wood Acoustic Panel
Detailed Product Description
----------------------------------------------------------------------------------------------------

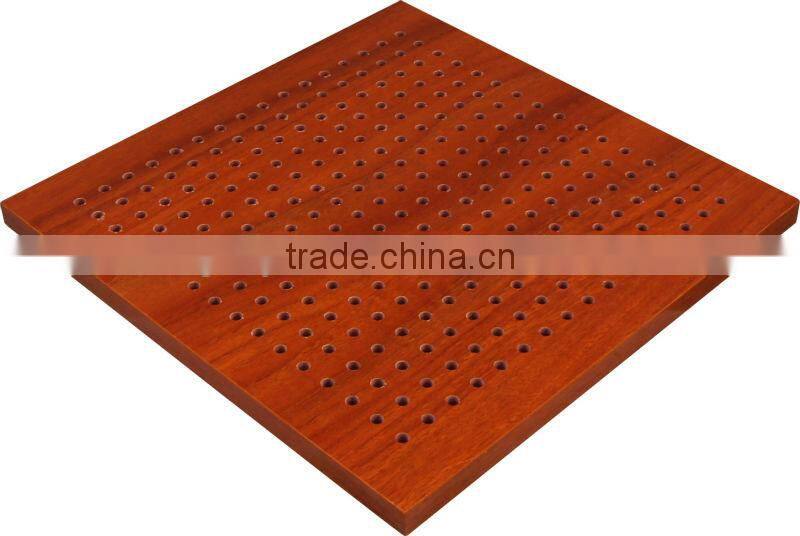

Perforated panel is a kind of wooden acoustic panel with a series of round holes on both front and back sides. The holes can be drilled from the surface directly to the back or the holes in the surface are small while on the back are big. The diameters of the holes on two sides are different. ( Perforated Acoustic Panel )It is widely used for walls and ceilings.
----------------------------------------------------------------------------------------------------
Features:
1. Excellent acoustic performance
2. Sound absorbing and noise reduction
3. ( Perforated Acoustic Panel ) Improving sound articulation
----------------------------------------------------------------------------------------------------
Specification:
Soundproofing Wooden Perforated Acoustic interior wall Panels ( Perforated Acoustic Panel ) accord with sound system
Structure |
Basic Material, Finish & Back Finish |
Basic Material |
E1 MDF, FR MDF, MgO Combination Board etc |
Front Surface |
E1 MDF, FR MDF, MgO Combination Board etc |
Back Surface |
Melamine, Natural Wood Veneer, Paint etc |
Standard Dimension |
600*600, 1200*600, 1200*1200 mm |
Standard Thickness |
12 / 15 / 18 mm |
Distances of two holes |
8/8 mm, 16/16 mm and 32/32 mm |
Diameter of holes |
1,2,3,4,5,6,8,10,12 mm etc |
Popular Patterns |
8/8/1, 16/16/3, 16/16/6, 32/32/6, 32/32/8,etc |
Acoustic Principle |
Resonance Absorption |
Eco-Friendly |
Meet China& EU Standard Class E1 |
Fire Resistance |
Meet China Standard Class B1 |
----------------------------------------------------------------------------------------------------
1. Sample
2.Project
3.Installation
4.Certification
5.Sound Report
1.Packaging: Carton (8pcs packed into one carton and crapped around pearl wool)
2.Delievery time: Within 2 weeks
1.Customized Size as your request.
2.MOQ is 100sqm
3.Free small sample.
4.On line service by trade manager.skype or Mobile:
Skype:huanshan2012,Mobile:+86-136000178048.
5.OEM & ODM are available.

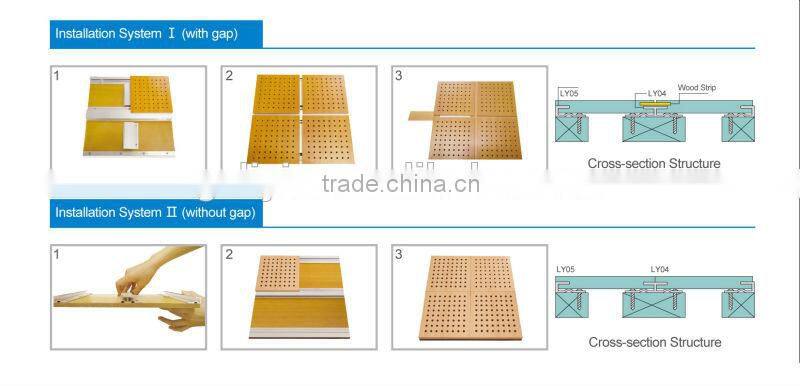

6.Install Instruction
About us:
March 2006, Guangzhou Liyin Building Material Co., Ltd was established in Guangzhou with the factory in Foshan. Blue Ocean Architectural Acoustic Material Co., Ltd in Foshan. Our group has launched eight series of wooden acoustic panel ( Perforated Acoustic Panel ) , Fabric acoustic panel, Wood-wool acoustic panel, Polyester fiber acoustic panel, Suspended absorber, Diffuser, Wooden dry-hang panel, Vibration damping & soundproofing materials, which sums up to 200 items. All our products are of high quality and have achieved great acceptance by both domestic market and markets of Europe, American, Africa and Asia.

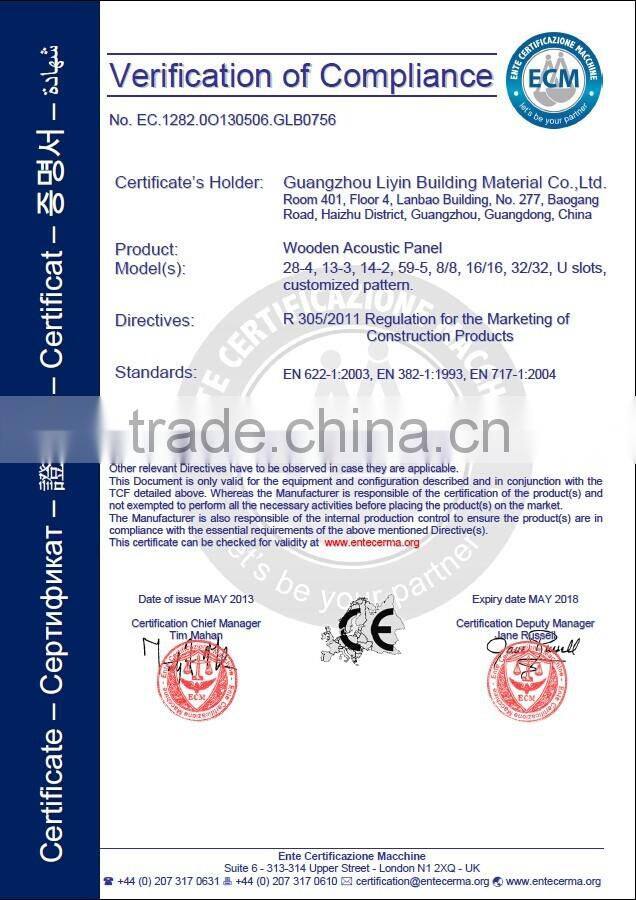

ISO, CE, SGS
