High Quality DMX LED RGB Controller With DMX Consule Compatible

RGB LED Controller for RGB LED Neon Light

This controller is used for RGB LED lights (four wires and three loops) two group parallel DC output. It includes seven color jumping, seven color fading, seven color flashing and seven color class gray degree dimmer. Output voltage of the controller is depended on the input voltage.
Small size, versatile functions, remote controlling mode provide your various options in application and projects.

Features:
2X16 digits LCD displaying it's working condition
Output is separate from control circuit.
Shell isl for heat spreading directly
DMX digital address setting and power off protection.
Two  working modes(DMX mode.independent mode)
Sensitive for sound control is adjustable.it also can connect with outside audio
Grey glass 255 scale adjustable.
Built in 20 sorts functions.
Compatible with DMX512 signal.such as DMX 512 puter.
DMX dimmable and independent dimmable.

Specification:

Panel of controller

Front panel

1-hole for assembling 2-sensitive adjustment 3-audio input 4-LCD display window 5-switch 6-button

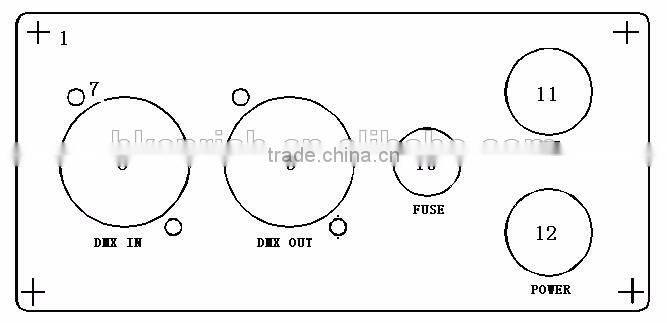

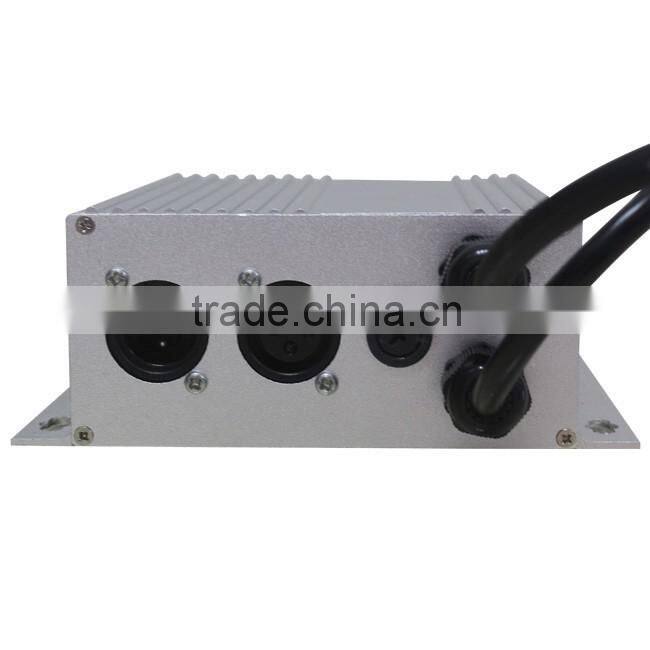

Back panel

7-DMXsocket hole 8-DMX input 9-DMX output10-fuse box 11-output cable 12-power cord

Key name::

Modekey:  Function change

SETUP  key:  Sub-menu

DOWN key:For setting data-

UPkey:  For setting data +

Audio sensitive adjustment key:clock-wise up.count clock-wise down.

Audio input:interior MIC runs when it disconnect;exterior audio input when it connect.

Images:
