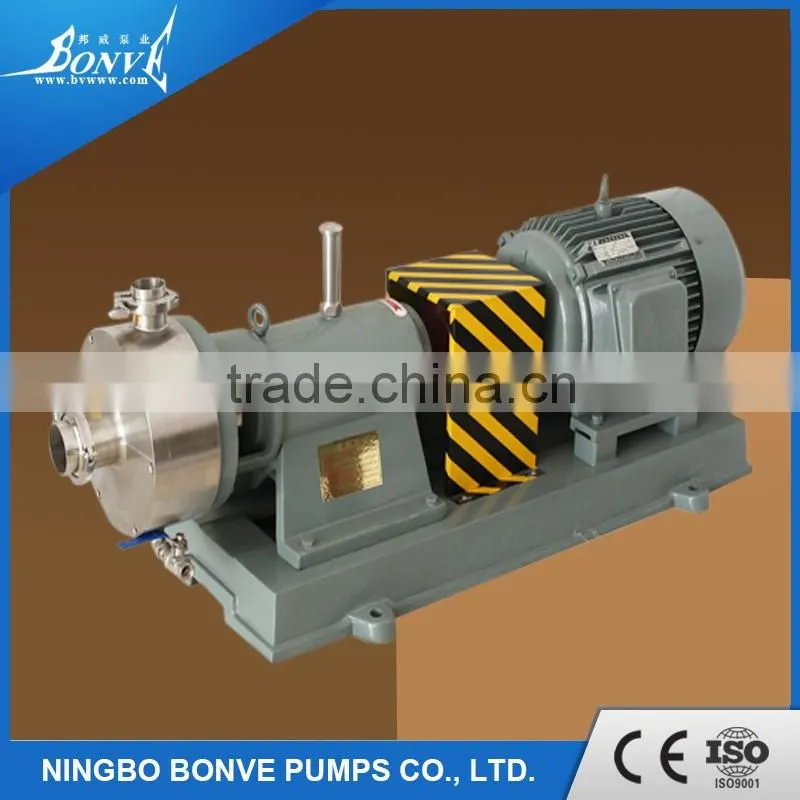

High shear homogenizer for fruit juice and yogurt
Introduction

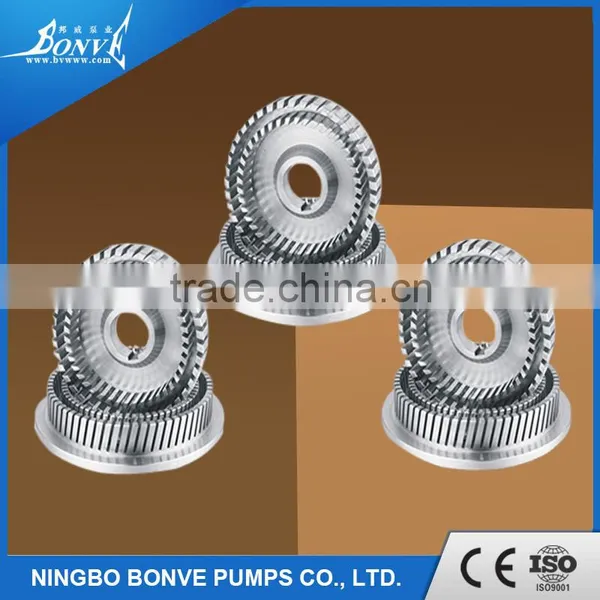

| Homogenizer machine is an efficient type machine with mixing, dispersion, breaking, dissolution, refinery, homogenization and emulsifying.The main parts are stators and rotors. Driven by motor, the rotor revolve quickly and produces a strong axial suction force which intakes the material to the chamber. Homogenizer machine shears, centrifugal press, break, fluid friction, turbulent homogenize mediums in the shortest time, the repeat of this process results in stable and high-quality products. |
Schematic drawing
Homogenizer machine are widely used in petrochemical, refinery chemistry, consumer chemicals, biology pharmaceutics, foods processing, paper making, environmental protection, pain and so on. |
Features
- Suitable for industrial online continuous production.
- Wide viscosity range than in batch high shear mixer.
- No batch difference.
- High efficiency, low noise.
-No Bypassing: Product cannot bypass the precision rotor/stator work head.
-Cleaning: suitable for cleaning in place (CIP and SIP).
Homogenizer machine is divided into two series which are FHM1 and FHM3 based on different numbers of rotor and stator.There is one set rotor and stator of FHM1 series while there are three sets rotors and stators of FHM3 series.FHM3 has much quicker, more efficient process. For those applications that require greater homogenizing and emulsifying, we recommend FHM3 series. Below are reference pictures and technical parameters. |
FHM1 series
FHM3 series
Remarks:
|
-Materials of Construction: SS304, SS316 and 316L. SS316 as standard. -Motor Specification: normal type (Siemens, ABB Brand etc) as standard. Standard power supply: 3ph, 380V, 50Hz. -Inlet and Outlet Connections: All sanitary clamp, thread and flange fittings are available on request. Clamp connection as standard. -Sealing: Double-face water flushed mechanical shaft seals as standard. BGM Brand. -Jacket: Heating or Cooling jacket structure as optional with special requirements. |
To recommend you a right machine and offer reasonable price, pls tell us below
--Processed medium’s name, density, viscosity?
--The proportion of solid and liquid product?
--Medium is corrosive, sanitary or toxic?
--Required capacity?
--Qty.?
--FOB or CIF price? If CIF, which delivery port to ship? Sea is as shipping standard.
Pumps are packed by plywood case which is free of fumigation in general.
Shipping: by air, by sea or by train
|
We Supply You With Custom-Made Pump, Any Inquiry Will Be Highly Welcome! Our company strength: With nearly ten years' experience in manufacturing and exporting, we poses very professional know-how. We not only provide the the competitive prices with realibale quality, but also have the ability to help the customers to solve their problems happened during the design stage to the finish products. Our pumps' strength: high precision, consistent performance, minimal risk of contamination, low maintenance and long life. Our pump's warranty: upto two years while others is one year. Seal part is one year while others is have an year. |
How to order pumps from Bonve?
1. Please tell us transferred medium's name, denisty, viscosity and temperature. Flow rate and delivery head required? Power supply you using? And you other requirements?
2. We will make quotation for you. After your confirmation, send you PI.
3. We will arrange the production after your down payment.
4. After finishing production, we send you pump's photo for your reference and you make balance peyment.
5. Arrange shipment.
