Specifications
overlay welding on most carbon, low alloy, chrome moly, stainless steel and other variety of corrosion resistant steel

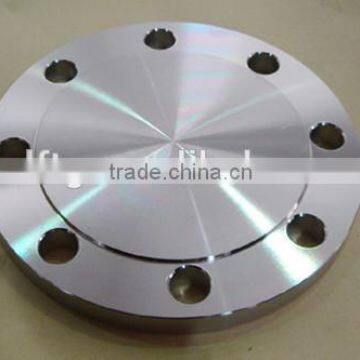

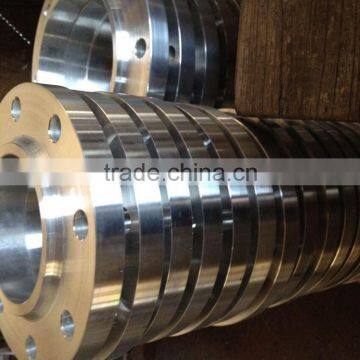

GH600, GH1140, GH3128, GH2132 alloy flange
High quality Nickel Alloy flanges such as inconel 718 alloy coating flange, used in various industry like Chemical, Aerospace, Marine, Petrochemical, Energy, Nuclear, Automotive, Military, and so on.
Advantage: inconel 718 alloy coated steel part has advantage of economical price, good anti-corrosion wear-proof performance, long using-life.
Working principle: pre-heating carbon steel (for example steel AISI 4140) to about 400°C, and use super-alloy inconel 718 welding rod (wire) coat 2-4mm alloy on the carbon steel flange, pipe, fitting, after the steel is cool, lathe and polish the surface of the alloy coated part.
Our technology: Alloy surface coating technology (inconel 718 flange)is a composite technology of metallurgy for two kinds of different metals. We can make overlay welding on most carbon, low alloy, chrome moly, stainless steel and other steels with variety of corrosion resistant alloy including Inconel®, Incoloy®, Monel®, Hastelloy®, stainless steel and hard facing steels. Benefit from our advanced computer controlled welding stations, we offer very low dilution of alloy deposite. Real time video monitoring and recording system ensure perfect tie in and weld path.
Material used:
- Alloy 20
- Nickel 200, 201
- Monel 400. K-500
- Inconel 600, 601, 625, 718, 725, X-750, 751, 783
- Incoloy 800, 800H, 800HT, 825, 890, 901, 925, 926
- Hastelloy B, B-2, C-22, C-276
- Special Stainless Steel F309, F310, F347, F348, 904L
- Dual Phase Steel F44, F51, F52, F53, F55
- Precipitation Hardening Steel 15-5PH, 17-4PH, 17-7PH, 18-8MoPH
- Stainless Steel S30403, S30408, S30409, S31008, S31603, S31608, S31609, S31668, S31703, S32168, S34779,
S39042, S11306, S22253, S22053, S21953
- High temperature alloy GH600, GH3128, GH3030, GH2132, GH1140
Our standard Flanges:
- ANSI B16.5, B16.47
- ASME B16.5, B16.47
- JIS B2220
- BS10, BS3293, BS4504
- DIN 2502, 2503, 2527, 2565 / 2566, 2573 / 2576, 2627 / 2628, 2629 / 2630, 2631, 2632, 2633, 2634, 2635 / 2636,
2637 / 2638, 2641, 2642, 2655 / 2656, 86029 / 86030
- UNI 2253, 2254, 2276-2278, 2281-2284, 6083, 6084, 6089-6093
- EN 1092, 1092-1
- API605, 6A ,6B MSS SP44 AWWA C207
Inconel 718 corresponding brands in China and abroad
| GB | UNS | SEW VDIUV | BS | AFNOR | |
| Inconel 718 | GH4169 | N07718 | W.Nr.2.4668 NiCr19Fe19Nb5Mo3 |
NA 51 | NC19FeNb |
Inconel 718 Chemical components
| Alloy | C | Mn | Si | P | S | Cr | Ni | Mo | Cu | Ti | Al | Fe | Other |
| Inconel 718 | ≤0.08 | ≤0.35 | ≤0.015 | ≤0.35 | ≤0.015 | 17 ~21 |
50 ~55 |
2.8 ~3.3 |
≤0.3 | 0.65 ~1.15 |
0.2 ~0.8 |
- | Nb 4.75~5.5 B≤0.006 Co≤1 |
Products display:
1.Steel Flat bar
2.Forged Steel Proudcts
3.Steel Plates
3.Steel Strips
4.Steel Pipe
5.Steel Wire
6.Steel Round Bar
7.Construction Steel
8.Steel Flange
9. Elbow and Tee
