Specifications

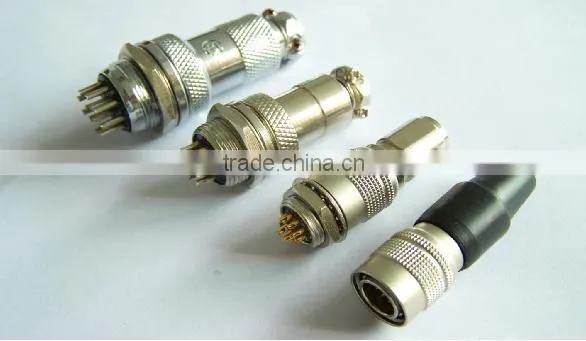

CNT13 Minitype Metal Push-Pull Electrical Connector1.easy to connect and separate.
2.Compact structure makes it small-size.
CNT13 Metal Push-Pull Electrical Connectors are widely used for electron, instrument, video and medical equipments.
The characteristics of the products are as follows:
Push-Pull button makes it easy to connect and separate.
An Automatic lock make it reliable to be connected.
A modified design of key makes it to avoid misinserting.
Compact structure makes it small-size.
CNT13Metal Push-Pull Electrical Connector Type
CNT13— 01PT04 SH K FD
CNT13 ----Basic Series
01---- Shell Size 01 02
PT-- --Plug PT Bend Plug WT Socket PZ
04 -----Number of Contacts 04 06 07 10 12
SH ----Type of contacts SH:Solder Type SP:PCB Type
K -- --Insulator Module:K:Module load hole Z:Module load pin
FD -----Receptacle Location:GD:Tightening Type FD:Floating Type
