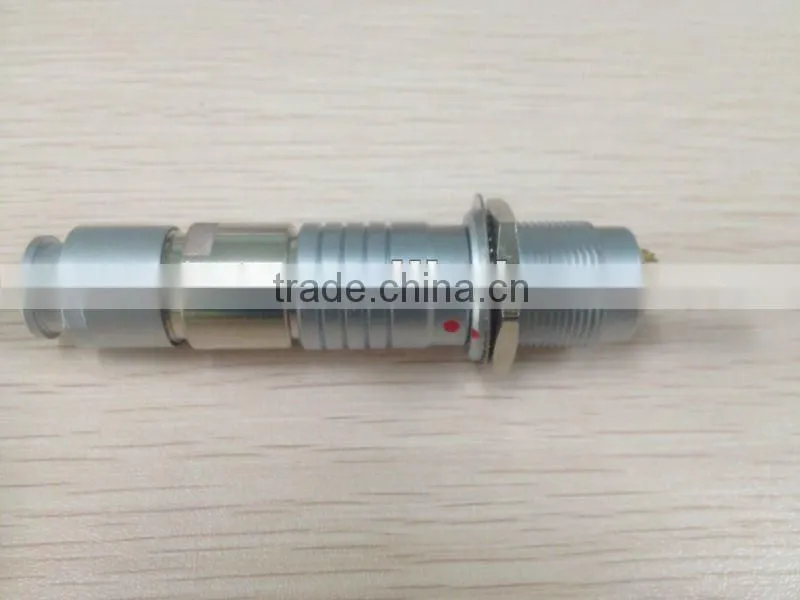

Metal 1B push-pull self-locking medical gas and power connector
Description
Metal 1B push-pull self-locking medical connector is Compatible with Lemo & ODU
07 Series metal connector are multi-pith, small-sized, push-pull connection and screened electrical connector.
The screened electrical connector can be used safely and conveniently, and can connect and separate quickly.
The types of the metal electrical connector: solder and PCB.
Socket assemble female. Plug assemble male.
According to the surroundings it is divided into general (B) and hermetic (K) type.
Metal electrical connector, with nicety in appearance, can be used for some industrial fields, such as communication, electronics and medical equipments and it is specially suited for electrical connectors in some instruments and equipments which should be screened and be connected and separated frequently.

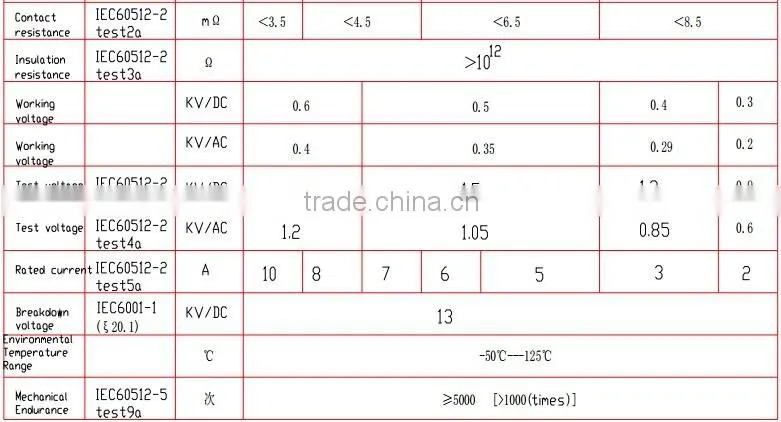

General Technical Characteristics
Environmental Temperature Range -50°C~+125°C
Insulation Resistance >5000MΩ
Mechanical Endurance >5000 times(Connection and separation)
3.Certification
