CNT07 PHG B/K series metal push-pull medical connector
Detailed Product Description
They are multi-pith, small-sized, push-pull connection and screened electrical connector.
The screened electrical connector can be used safely and conveniently, and can connect and separate quickly.
The types of the metal electrical connector: solder and PCB.
Socket assemble female. Plug assemble male.
According to the surroundings it is divided into general (B) and hermetic (K) type.
Metal electrical connector, with nicety in appearance, can be used for some industrial fields, such as communication, electronics and medical equipments and it is specially suited for electrical connectors in some instruments and equipments which should be screened and be connected and separated frequently.

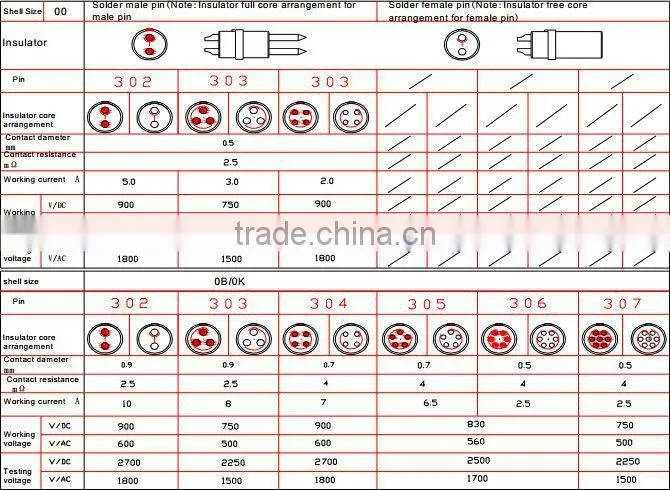

General Technical Characteristics
Environmental Temperature Range -50°C~+125°C
Insulation Resistance >5000MΩ
Mechanical Endurance >5000times(Connection and separation)

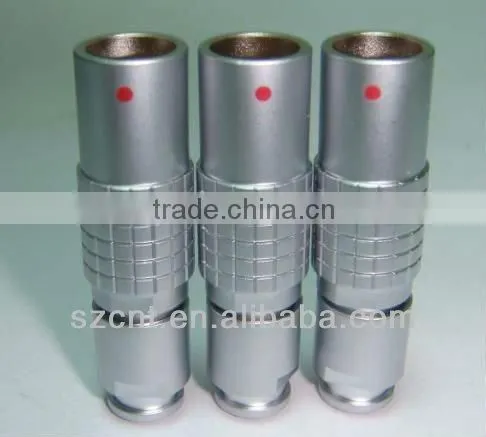

Straight Plug with cable
FGG.1B.306.CLAD62=straight plug,fixing pin(G),with wire clamp,1B serises,Multi pin type,6Pin,brass plated outshell,PEEK insulator,solder male pin,suitable for external diameter 6.0mm cable D type wire clamp.
Float Receptacle
PHG.1B.306.CLLD62Z=float receptacle,fixing pin(G), with wire clamp,1B serises,multi pin type,6pin,brass plated outshell,PEEK insulator,solder female pin, suitable for external diameter 6.0mm cable D type wire clamp. With strain relief tail nut.
Fixed Receptacle
EGG.1B.306.CYM=Fixed Receptacle,fixed nut,fixing pin(G),1B serises,multi pin type,6 pin,brass plated outshell,PEEK insulator,clamp female pin,
Fixed bi-pass
RJG.1B.306.CLA=Straight fixed bi-pass,fixed nut,flange with fixing pin(J),other with fixing pin(G),1B serises,multi pin type,6pin,brass plated outshell,PEEK insulator,male or female pin.
